| Brand Name: | IWAVE |
| Model Number: | FD-7802WG |
| MOQ: | 2 |
| Delivery Time: | 2WEEKS |
| Payment Terms: | T/T |

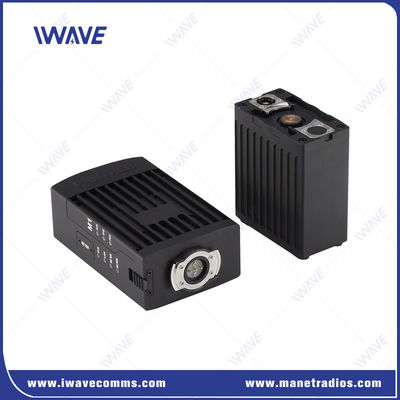

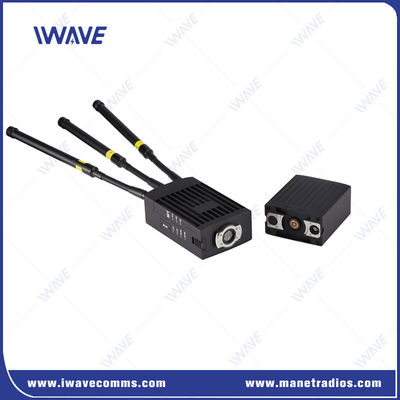

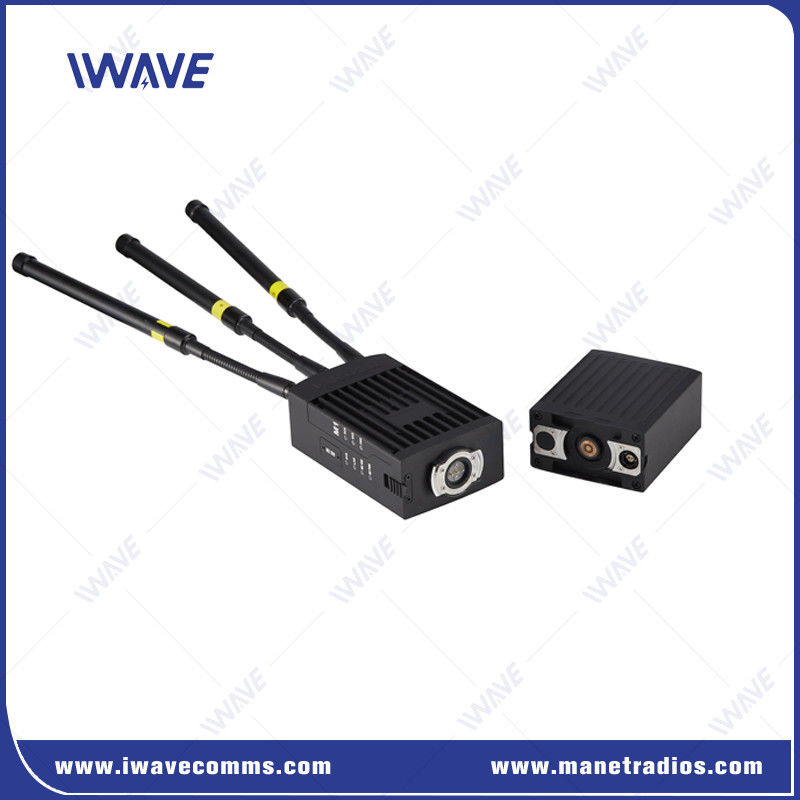

Broadband Handheld IP MESH Radio For Video Transmitting In NLOS
Product Description
The FD-7802WG is a Broadband Handheld IP MESH Radio that uses wireless broadband ad hoc networking technology . It adopts a dual-mode dual-frequency working mode and supports both star and ad hoc networking modes . It can provide IP transparent transmission channels for upper-layer applications such as video, voice, and data.
The FD-7802WG automatically negotiates routes through the link layer between all nodes. It does not require manual configuration and is ready for use. It can quickly establish a communication network anytime and anywhere. The Broadband Handheld IP MESH Radio adopts a detachable core communication module and a detachable battery design. It has the characteristics of rapid deployment, high compatibility, light and compact, low power consumption, and high bandwidth. In view of the uncertain time and location of emergency communications, it meets the portable needs of outdoor and individual soldiers and can be widely used in emergency communications, rapid deployment, field surveys, underground operations and other industries.
The FD-7802WG provides wired Ethernet interface and data serial port, etc., which facilitates other mobile terminals to access the network. In addition, the Broadband Handheld IP MESH Radio can also provide a variety of accessory modules such as video and image encoding module, integrated voice module, WLAN wireless module, GIS positioning module or public network gateway module, etc., to meet various application requirements in different scenarios.
Advantage Highlight
Support 64 node.any node can freely communicate
Support rapid deployment of operations.Quickly deploy a private network for group communication in 5 minutes.The battery can be quickly removed and replaced
Intelligent routing.The network automatically switches routes based on factors such as the number of transceiving and channel environment
The network topology is variable,The topology can be switched between linear, star, and mesh topologies or multiple topologies coexisting
Adaptive Power.According to the channel conditions, adaptively adjust the transmitting and receiving power to reduce power consumption and network interference
Specification
| Items | Specifications |
| Frequency | 600Mhz/800MHz/1.4GHz/Dual Band |
| Technology | Wireless technology based on TD-LTE |
| Modulation | Support QPSK/16QAM/64QAM and other modulation methods |
| Wireless Channel | Support 3T3R MIMO |
| Power | 2W/ 5W |
| Sensitivity | ≮-103dBm@10MHz |
| Wireless channel bandwidth | Support 3MHz/5MHz/10MHz/20MHz/40MHz (CA carrier aggregation mode) |
| Anti-interference ability | Support dynamic frequency hopping technology |
| Latency | Data air interface transmission delay <30ms |
| Encryption | Support layer 2 encryption, ZUC, SNOW3G, AES three encryption methods optional |
| Throughput | 100Mbps |
| Networking capabilities | Star + MESH hybrid mode/Chain networking (optional) |
| Communication distance | 0-10km (line-of-sight transmission, actual distance depends on the transmission environment) |
| Network capacity | ≮64 nodes |
| Cascading capability | ≮6 jumps |
| Data transmission function | Support data transmission based on IP packets |
| Video transmission | Support 1080p high-definition image transmission, H.264/H.265 code stream adaptation |
| Serial Port Transmission | Support serial port data and IP data conversion,and supports Modbus, MQTT, HTTP and other serial communication protocols |
| Start-up Time | No more than 60s |
| Networking Time | No more than 90s |
| Version Upgrade | Device support version upgrade and replacement |
| Powered by | DC 12V / AC adapter / large capacity lithium battery |
| Indicator Lights | Power supply and network quality indication |
| Antenna | Standard 2dBi omnidirectional antenna |
| removable design | Wireless communication module and removable battery |
| Battery life | The continuous working time is ≮4 hours |
| Device interface | Power input aviation plug interface * 1 |
| Ethernet port aviation plug interface * 2 | |
| Data serial port aviation plug interface * 1 | |
| Wireless RF TNC interface*3 | |
| Peripheral components | Image encoding module (HDMI/SDI) |
| Components optinal | Voice processing module (/VOICE CALL) |
| WLAN wireless module (2.4GHz/5.8GHz) | |
| Public network gateway module (4G/5G) | |
| GIS positioning module (GPS/Beidou) | |
| Weight | ≯2.6kg (without antenna) |
| Size | ≯260mm*130mm*100mm (excluding antenna) |
| Operating temperature | -20ºC~55ºC |
| Storage temperature | -40ºC~65ºC |
| Temperature and humidity range | 95%±3%, 40℃, non-condensing |
| Protection | IP65 |
| Installation | Handheld/Backpack |
Interface
Application

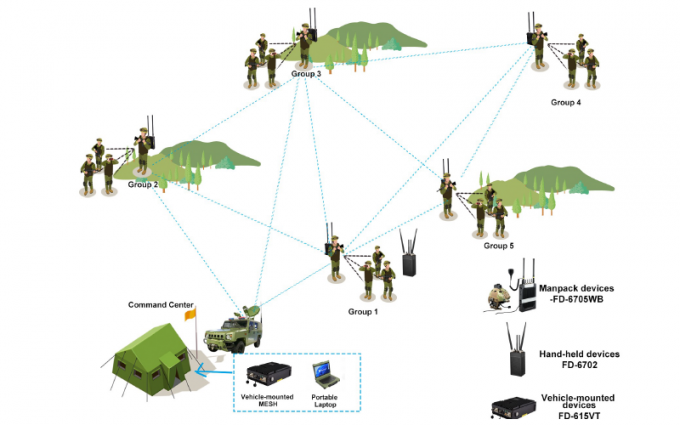

Each group leader uses a Manpack MESH dual-frequency device. This build communication with other groups.
In the group, each member uses Handheld MESH device FD-7802WG, wear helmets with cameras or microphone which can communicate with others
