| Brand Name: | IWAVE |
| Model Number: | FD-7802WG |
| MOQ: | 2 |
| Delivery Time: | 2WEEKS |
| Payment Terms: | T/T |

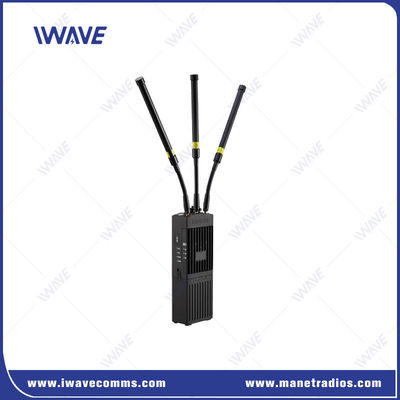

MIMO Wireless Ad Hoc Network Handheld Radio
Product Description
•FD-7802WG is a 2W/5W MIMO wireless ad hoc network handheld radio station, which adopts dual-mode and dual-band working mode and supports star and ad hoc network mode.
•It provides IP transparent transmission channels for upper-layer applications such as video, voice, and data.
•All nodes automatically negotiate routes through the link layer, eliminating the need for manual configuration, and quickly establishing a communication network anytime, anywhere.
•The device can be equipped with video coding module, integrated voice module, WLAN wireless module, GIS positioning module or public network gateway module to meet the application requirements of different scenarios.
•The FD-7802WG can support up to 64 nodes, up to 6 levels of jumping, the total uplink and downlink bandwidth is up to 100Mbps, and the communication distance can reach 0-10km (line-of-sight).

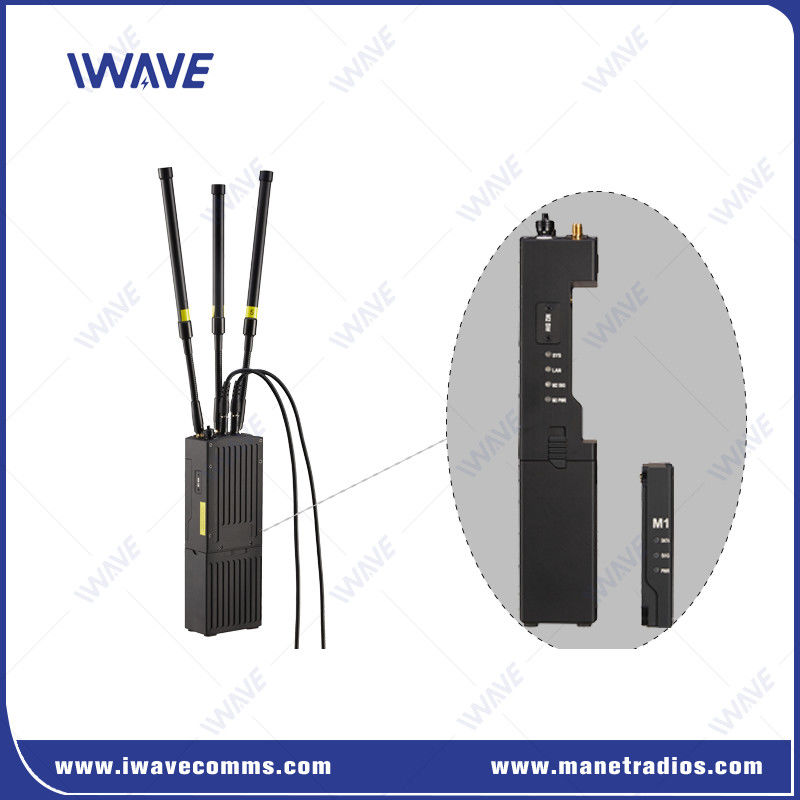

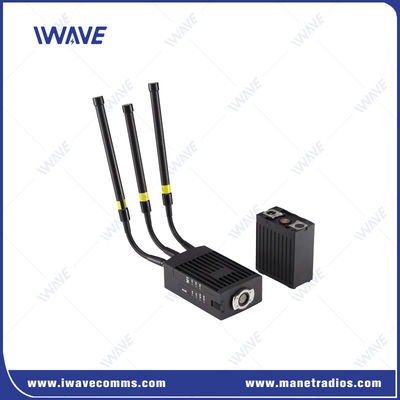

•The device has a detachable core communication module and battery design, The working time of the battery is not less than 4 hours, the weight is about 1.5kg, and the size is about 20.8cm*7.6cm*4.3cm
Specification
| Items | Specifications |
| Frequency | 600Mhz/800MHz/1.4GHz/Dual Band |
| Technology | Wireless technology based on TD-LTE |
| Modulation | Support QPSK/16QAM/64QAM and other modulation methods |
| Wireless Channel | Support 3T3R MIMO |
| Power | 2W/ 5W |
| Sensitivity | ≮-103dBm@10MHz |
| Wireless channel bandwidth | Support 3MHz/5MHz/10MHz/20MHz/40MHz (CA carrier aggregation mode) |
| Anti-interference ability | Support dynamic frequency hopping technology |
| Latency | Data air interface transmission delay <30ms |
| Encryption | Support layer 2 encryption, ZUC, SNOW3G, AES three encryption methods optional |
| Throughput | 100Mbps |
| Networking capabilities | Star + MESH hybrid mode/Chain networking (optional) |
| Communication distance | 0-10km (line-of-sight transmission, actual distance depends on the transmission environment) |
| Network capacity | ≮64 nodes |
| Cascading capability | ≮6 jumps |
| Data transmission function | Support data transmission based on IP packets |
| Video transmission | Support 1080p high-definition image transmission, H.264/H.265 code stream adaptation |
| Serial Port Transmission | Support serial port data and IP data conversion,and supports Modbus, MQTT, HTTP and other serial communication protocols |
| Start-up Time | No more than 60s |
| Networking Time | No more than 90s |
| Version Upgrade | Device support version upgrade and replacement |
| Powered by | DC 12V / AC adapter / large capacity lithium battery |
| Indicator Lights | Power supply and network quality indication |
| Antenna | Standard 2dBi omnidirectional antenna |
| removable design | Wireless communication module and removable battery |
| Battery life | The continuous working time is ≮4 hours |
| Device interface | Power input aviation plug interface * 1 |
| Ethernet port aviation plug interface * 2 | |
| Data serial port aviation plug interface * 1 | |
| Wireless RF TNC interface*3 | |
| Peripheral components | Image encoding module (HDMI/SDI) |
| Components optinal | Voice processing module (/VOICE CALL) |
| WLAN wireless module (2.4GHz/5.8GHz) | |
| Public network gateway module (4G/5G) | |
| GIS positioning module (GPS/Beidou) | |
| Weight | ≯2.6kg (without antenna) |
| Size | ≯260mm*130mm*100mm (excluding antenna) |
| Operating temperature | -20ºC~55ºC |
| Storage temperature | -40ºC~65ºC |
| Temperature and humidity range | 95%±3%, 40℃, non-condensing |
| Protection | IP65 |
| Installation | Handheld/Backpack |
Interface
Application
Each group leader uses a Manpack MESH dual-frequency device. This build communication with other groups.
In the group, each member uses Handheld MESH device FD-7802WG, wear helmets with cameras or microphone which can communicate with others
