| Brand Name: | IWAVE |
| Model Number: | FD-7800 |
| MOQ: | 2 |
| Price: | Negotiable |
| Delivery Time: | 5-10days |
| Payment Terms: | T/T |
100Mbps Full HD video and RS232 IP MESH Radio Link
Description
FD-7800 Digital Data Link is a miniature OEM, high power, 2X2 MIMO L Band + 600Mhz dual band wireless OEM solution. This robust digital data link provides a robust and secure link in software-selectable frequency between 566-678Mhz and 1420-1530MHz. The FD-7800 is special designed based on Software Defined Radio based on our highly robust MANET MESH waveforms and time slot structure.

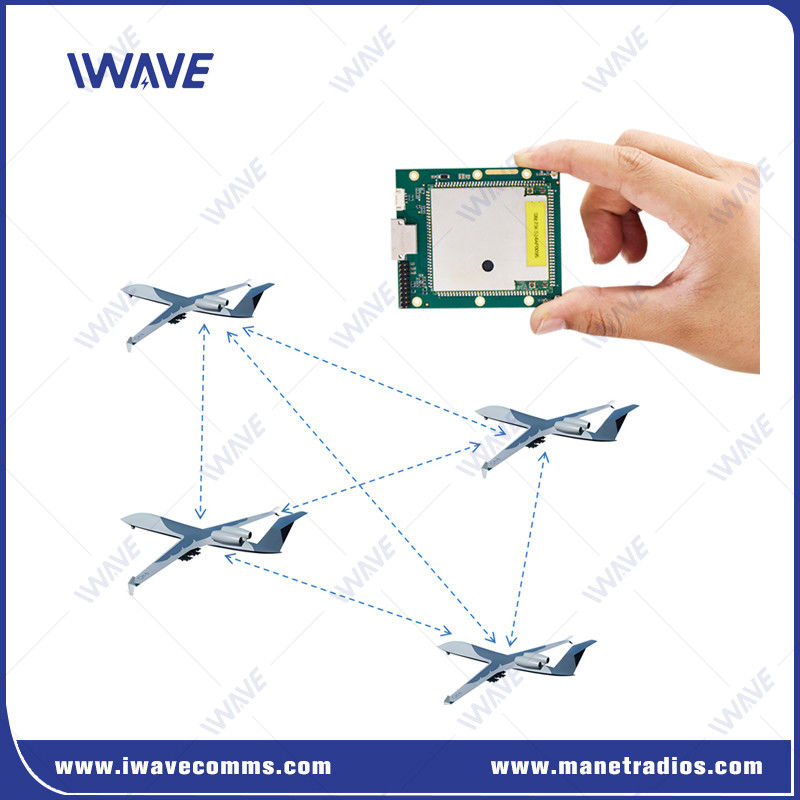

It is ideal for a variety of mesh deployments such as UAV/Drone, Public Security, Armed Police, Fire Control, and Robot. Its multi-hop ability can largely increase the transmission distance. The up to 100Mbps data rate allows it to transmit video, data and audio at the same time easily. The AES128 encryption ensures the security of data transmission.
Features
Robust 2X2 MIMO 1.4GHz and 600Mhz Operation
FHSS to anti-jamming in complex RF environment
Low latency: end to end 5-15ms
Up to 100Mbps Iperf Throughput
Extremely small foot print and very lightweight 33g
2xSerial port
Triple 10/100 Ethernet Ports (LAN/WAN)
Supports 32nodes Mesh Networks
Adjustable total transmit power (up to 200MW)
Software for network management
Local and remote wireless firmware upgrading through FTP
Our Advantages
■ Over 15 years experiences in wireless communication solutions.
■ High product quality, competitive price and low MOQ
■ Excellent pre-sale and after-sale technical team.
■ Quick response and fast delivery.
■ OEM supported.
Specification
| Wireless | |
| Technology | Wireless based on TD-LTE Technology Standard |
| Encryption | ZUC/SNOW3G/AES(128) Optional Layer-2 |
| Data Rate | Max 120Mbps(Uplink and Downlink) |
| Communication Range | Air to ground 10km NLOS Ground to ground 1-3km |
| Node | 32node |
| MIMO | 2x2 MIMO |
| RF Power | 23dBm±2 (2w, 5w or 10w on request) |
| Latency | End to end≤5ms-15ms |
| Modulation | Adaptive QPSK, 16QAM, 64QAM |
| Anti-Jamming | FHSS(Frequency Hop Spread Spectrum) |
| Bandwidth | 1.4Mhz/3Mhz/5Mhz/10MHz/20MHz |
| Power Consumption | 5watts |
| Power Input | DC5-32V |
| Dimension | 72*60*10mm |
| Weight | 33g |
| Serial Data | RS232/TTL |
| Communication | Full duplex communication |
| Up and Down Ratio | 2D3U/3D2U/4D1U/1D4U |
| Automatic Reconstruction | Automatic re-establishment after link failure/ re-deploy the network after a link failure |
| Dual Band Frequency | 1.4G: 1420Mhz-1530MHz |
| 600Mhz: 566Mhz-678Mhz | |

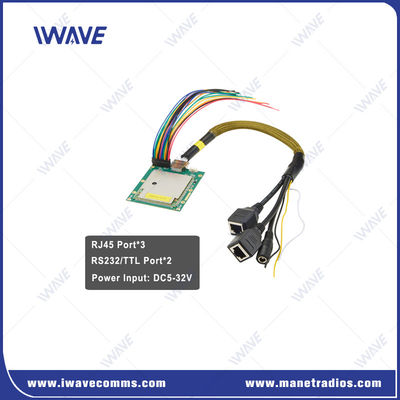

| Interface | |
| RF | 2 x SMA |
| LAN Port | 2x Ethernet Port |
| Comuart | 1xCOMUART TTL 3.3V level, 1 start bit, 8 data bits, 1 stop bit , no parity check Baud Rate: 115200bps(Default) (57600, 38400, 19200, 9600 configurable) |
| Power Input | 1xDC INPUT: DC5-32V |
| Sensitivity | |
| 1.4GHZ | 20Mhz: -102dBm |
| 10Mhz: -100dBm | |
| 5Mhz: -96dBm | |
| 600Mhz | 20Mhz: -102dBm |
| 10Mhz: -100dBm | |
| 5Mhz: -96dBm | |
| Environment | |
| Working Temperature | -40℃~+80℃ |
Video
|
|
