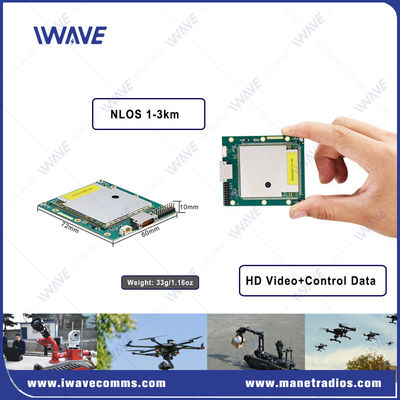

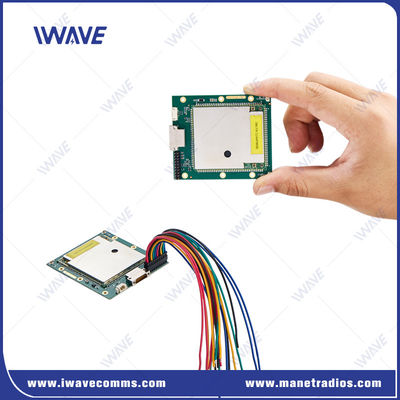

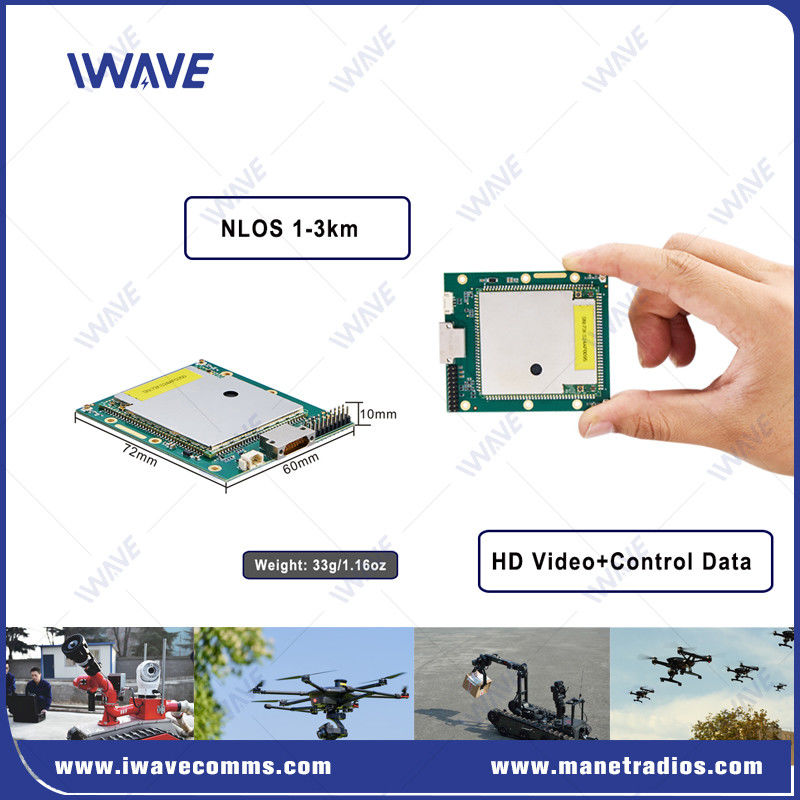

Miniature 33g Drone video transmitter 10km downlink

Description

Integrate the FD-7800 IP MESH Embedded Module into your products to unite UAVs, UGVs, and sensors on a single mesh network. Because the Embedded Module features a 100Mbps bandwidth for HD video and serial data based IP, which can eliminate redundant equipment from your platform.The FD-7800 can support up to 32 nodes, up to 6 levels of jumping, the total uplink and downlink bandwidth is up to 100Mbps, and the communication distance can reach 10km (line-of-sight) and 1-3km(non line of sight)

Key Features

• Supports Ethernet and full duplex telemetry data transmission.

• It adopts the Automatic frequency hopping technology for anti-interference greatly reduce system power consumption and size of the module.

• The miniature, lightweight and robust design allows the FD-7800 to be an ideal candidate for size sensitive applications. The high speed, long range capabilities of the FD-7800 allow for high quality wireless video and telemetry communications.

• Supports 600(566-678Mhz) and 1.4Ghz(1420-1530Mhz) adjustable by software.

• Supports up to 32 nodes of dynamic networking, and the maximum distance of a single hop is 5KM.

• Supports up to 31 cascade jumps. In an ideal situation (adjacent node SNR ≥ 15), the terminal transmission rate can reach 6Mbps.

• Lower power consumption, supports sleep mode. Average standby power consumption (connected state, no data transmission) <2W, typical working power consumption <10w (high bandwidth data transmission).

Application

• Ethernet Wireless Extension

• UGV Fleet Communication and management.

• Mobile Team Communication

• UAV Swarm Wireless Communication

• Wireless Telemetry Data

• Wireless Video

• Control Systems for Unmannded Platform

Specification
