| Brand Name: | IWAVE |
| Model Number: | FD-7800 |
| MOQ: | 2 |
| Price: | Negotiable |
| Delivery Time: | 5-10days |
| Payment Terms: | T/T |

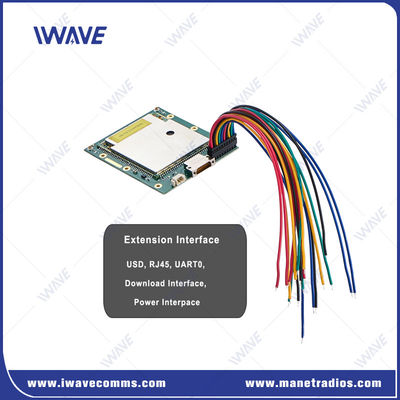

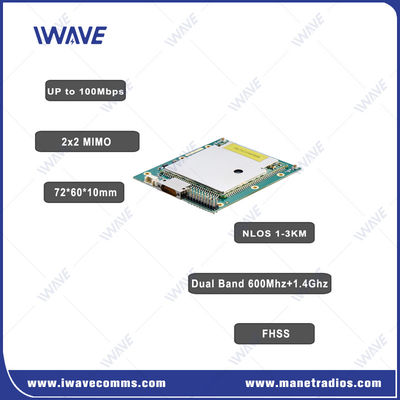

100Mbps IP MESH Module For Video and Telemetry data
Description
The all new MIMO Digital Data Link is a miniature OEM, dual band, high power, 2x2 MIMO wireless OEM solution that provides the 100Mbps bandwidth and LOS 10km and NLOS 1-3km range needed for complex data intensive applications. The MIMO FD-7800 features the best Frequency hopping spread spectrum (FHSS) for immunity to noise and interference.It also adopts the two-layer high dynamic networking protocol independently developed by the IWAVE team to achieve a good adaptability to wireless network environments, dynamic networking performance and transmission capabilities.FD-7800 ensures a secure and simultaneous Ethernet and Serial Data communications.
Features
The networking is more flexible, supporting both dynamic self-organizing and static link networking modes.
FD-7800 is a wireless transmission product designed by IWAVE based on mature SOC chipset, which is a miniature OEM, high power, 2X2 MIMO wireless OEM solution.
In addition to supporting MIMO mode, FD-7800 also uses LTE-A's CA technology (Carrier aggregation). FD-7800 supports dual carriers and can support a maximum operating bandwidth of 40MHz: 2X20MHz.
Compared with MIMO mode, CA mode has no restrictions on the installation location and spacing distance of device antennas, making deployment more flexible and easier to achieve high-bandwidth data transmission.
This robust digital data link provides a robust and secure link in the 600 MHz and 1.4G frequency band
Supports Ethernet and full duplex telemetry data transmission.
Application
Ethernet Wireless Extension
Wireless Telemetry
Wireless Video
Control Systems
Specification
| Wireless | |
| Technology | Wireless based on TD-LTE Technology Standard |
| Encryption | ZUC/SNOW3G/AES(128) Optional Layer-2 |
| Data Rate | Max 120Mbps(Uplink and Downlink) |
| Communication Range | Air to ground 10km NLOS Ground to ground 1-3km |
| Node | 32node |
| MIMO | 2x2 MIMO |
| RF Power | 23dBm±2 (2w, 5w or 10w on request) |
| Latency | End to end≤5ms-15ms |
| Modulation | Adaptive QPSK, 16QAM, 64QAM |
| Anti-Jamming | FHSS(Frequency Hop Spread Spectrum) |
| Bandwidth | 1.4Mhz/3Mhz/5Mhz/10MHz/20MHz |
| Power Consumption | 5watts |
| Power Input | DC5-32V |
| Dimension | 72*60*10mm |
| Weight | 33g |
| Serial Data | RS232/TTL |
| Communication | Full duplex communication |
| Up and Down Ratio | 2D3U/3D2U/4D1U/1D4U |
| Automatic Reconstruction | Automatic re-establishment after link failure/ re-deploy the network after a link failure |
| Dual Band Frequency | 1.4G: 1420Mhz-1530MHz |
| 600Mhz: 566Mhz-678Mhz | |
| Interface | |
| RF | 2 x SMA |
| LAN Port | 2x Ethernet Port |
| Comuart | 1xCOMUART TTL 3.3V level, 1 start bit, 8 data bits, 1 stop bit , no parity check Baud Rate: 115200bps(Default) (57600, 38400, 19200, 9600 configurable) |
| Power Input | 1xDC INPUT: DC5-32V |
| Sensitivity | |
| 1.4GHZ | 20Mhz: -102dBm |
| 10Mhz: -100dBm | |
| 5Mhz: -96dBm | |
| 600Mhz | 20Mhz: -102dBm |
| 10Mhz: -100dBm | |
| 5Mhz: -96dBm | |
| Environment | |
| Working Temperature | -40℃~+80℃ |
