| Brand Name: | IWAVE |
| Model Number: | FD-7800 |
| MOQ: | 2 |
| Price: | Negotiable |
| Delivery Time: | 5-10days |
| Payment Terms: | T/T |
MIMO OEM IP MESH Module For UGV Swarm
Description

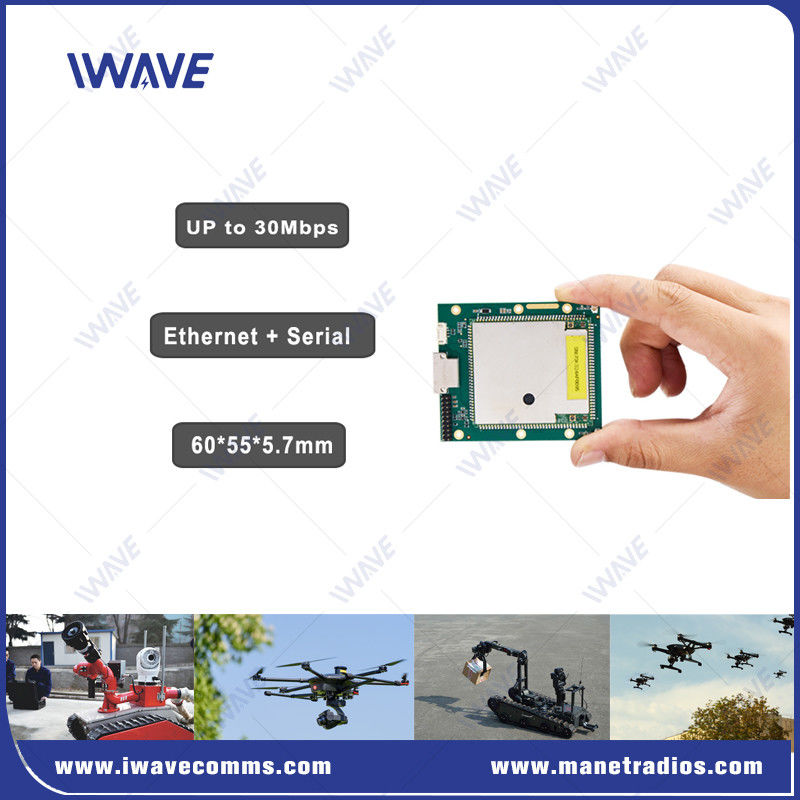

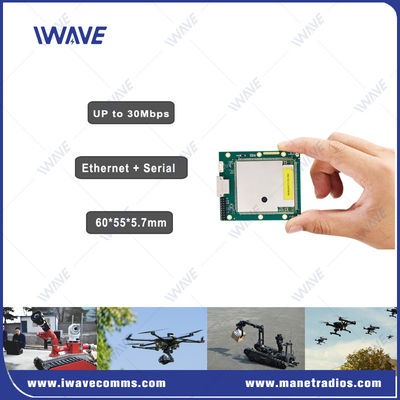

FD-7800 OEM MESH Module Digital Data Link deliver high-fidelity video, voice, and IP data communications at mission speed. Its miniature robust designs can provide high bandwidth Ethernet and Serial data.The FD-7800 MIMO MESH radios represent the Next Generation of IWAVE MANET radio technology – optimized for size, weight, and power – and built to excel in the harshest conditions for remote video, remote telemetry, robotics, and other wireless control systems.
New Dynamic Frequency Selection, Frequency Hopping & Independent Uplink/Downlink Frequency delivers robust interference and antijam immunity.FD-7800 adopts the Automatic frequency hopping technology for anti-interference greatly reduce system power consumption and size of the module.FD-7800 provides long-range, high-throughput data links between one or more mobile units and a control station in complex RF environment.
Features
Wireless Characteristics
Transmission Characteristics
Security
Physical Layer Characteristics
Specification
| Wireless | |
| Technology | Wireless based on TD-LTE Technology Standard |
| Encryption | ZUC/SNOW3G/AES(128) Optional Layer-2 |
| Data Rate | Max 120Mbps(Uplink and Downlink) |
| Communication Range | Air to ground 10km NLOS Ground to ground 1-3km |
| Node | 32node |
| MIMO | 2x2 MIMO |
| RF Power | 23dBm±2 (2w, 5w or 10w on request) |
| Latency | End to end≤5ms-15ms |
| Modulation | Adaptive QPSK, 16QAM, 64QAM |
| Anti-Jamming | FHSS(Frequency Hop Spread Spectrum) |
| Bandwidth | 1.4Mhz/3Mhz/5Mhz/10MHz/20MHz |
| Power Consumption | 5watts |
| Power Input | DC5-32V |

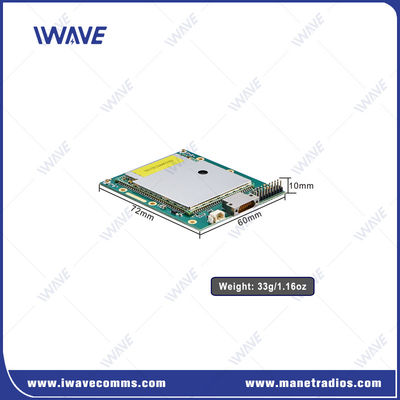

| Dimension | 72*60*10mm |
| Weight | 33g |
| Serial Data | RS232/TTL |
| Communication | Full duplex communication |
| Up and Down Ratio | 2D3U/3D2U/4D1U/1D4U |
| Automatic Reconstruction | Automatic re-establishment after link failure/ re-deploy the network after a link failure |
| Dual Band Frequency | 1.4G: 1420Mhz-1530MHz |
| 600Mhz: 566Mhz-678Mhz | |
| Interface | |
| RF | 2 x SMA |
| LAN Port | 2x Ethernet Port |
| Comuart | 1xCOMUART TTL 3.3V level, 1 start bit, 8 data bits, 1 stop bit , no parity check Baud Rate: 115200bps(Default) (57600, 38400, 19200, 9600 configurable) |
| Power Input | 1xDC INPUT: DC5-32V |
| Sensitivity | |
| 1.4GHZ | 20Mhz: -102dBm |
| 10Mhz: -100dBm | |
| 5Mhz: -96dBm | |
| 600Mhz | 20Mhz: -102dBm |
| 10Mhz: -100dBm | |
| 5Mhz: -96dBm | |
| Environment | |
| Working Temperature | -40℃~+80℃ |
Video
|
|
