| Brand Name: | IWAVE |
| Model Number: | FD-615VTN |
| MOQ: | 2units |
| Price: | Negotiable |
| Delivery Time: | 14-21Word Days |
| Payment Terms: | T/T,L/C,D/P |

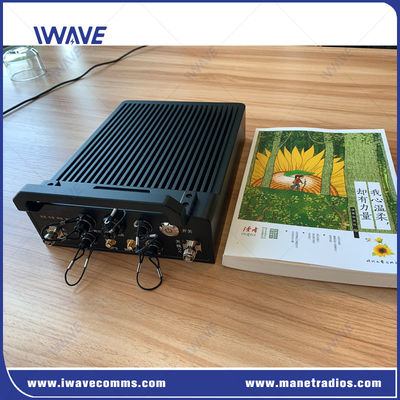

The IP MESH Radio is available in different transmission power options including 2Watts/10Watts/20Watts. This ensures that the device can be used in various settings, including remote locations where high transmission power is needed. It can be installed as a vehicle-mounted or fixed device, depending on the specific use case.
This product is perfect for organizations that require a reliable and efficient wireless communication system. It is ideal for use in industries such as public safety, defense, transportation, and utilities. With its advanced features and high performance, the IP MESH Radio is a reliable option for OEM wireless communication.
Features of IP MESH Radio:
|
 |
| Items | Specifications |
| Frequency | Supports two wireless frequency bands: 800MHz＋1.4GHz / 1.4GHz＋600MHz |
| Technology | Supports both star working mode and ad hoc network working mode |
| Modulation | Support QPSK/16QAM/64QAM and other modulation methods |
| Wireless Channel | Support 3T3R MIMO |
| Power | Wireless transmission power is not less than 5W |
| Sensitivity | ≮-103dBm@10MHz |
| Wireless channel bandwidth | Support 3MHz/5MHz/10MHz/20MHz/40MHz (CA carrier aggregation mode) |
| Anti-interference ability | Support dynamic frequency hopping technology |
| Latency | Data air interface transmission delay <30ms |
| Encryption | Support layer 2 encryption, ZUC, SNOW3G, AES three encryption methods optional |
| Throughput | The total upstream and downstream throughput bandwidth is greater than 100Mbps |
| Networking capabilities | Star + MESH hybrid mode, chain networking (optional) |
| Communication distance | 0-10km (line-of-sight transmission, actual distance depends on the transmission environment) |
| Network capacity | ≮64 nodes |
| Cascading capability | ≮6 jumps |
| Data transmission function | Support data transmission based on IP packets |
| Video transmission | Support 1080p high-definition image transmission, H.264/H.265 code stream adaptation |
| Serial Port Transmission | Support serial port data and IP data conversion,and supports Modbus, MQTT, HTTP and other serial communication protocols |
| Start-up Time | No more than 60s |
| Networking Time | No more than 90s |
| Version Upgrade | Device support version upgrade and replacement |
| Powered by | DC 12V / AC adapter / large capacity lithium battery |
| Indicator Lights | Power supply and network quality indication |
| Antenna | Standard 2dBi omnidirectional antenna |
| removable design | Wireless communication module and removable battery |
| Battery life | After entering the networking mode, the continuous working time is ≮4 hours |

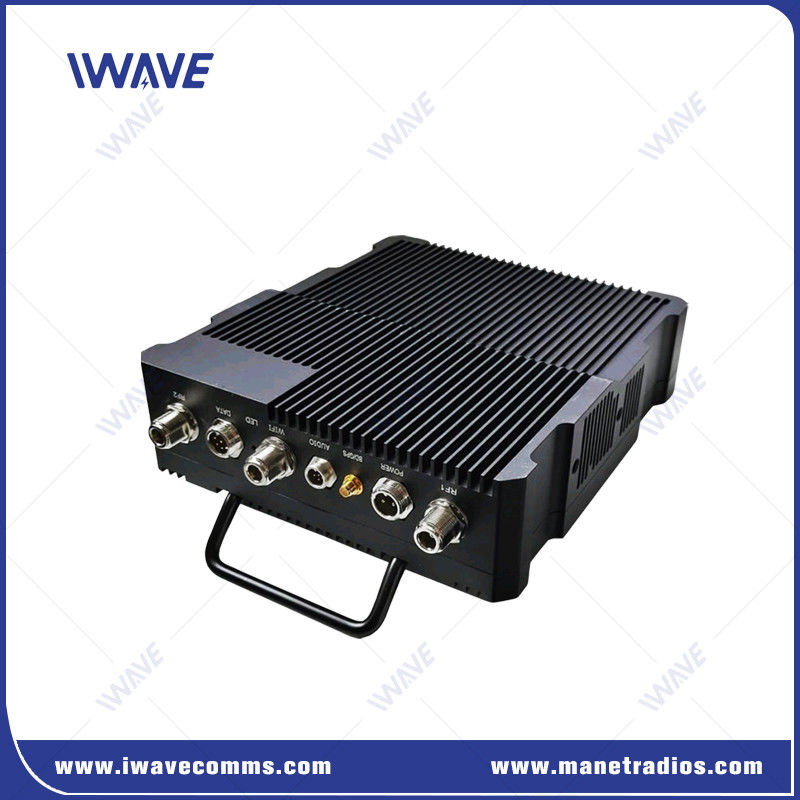

| Device interface | Power input aviation plug interface * 1 |
| Ethernet port aviation plug interface * 2 | |
| Data serial port aviation plug interface * 1 | |
| Wireless RF TNC interface*3 | |
| Peripheral components | Image encoding module (HDMI/SDI) |
| Components optinal | Voice processing module (/VOICE CALL) |
| WLAN wireless module (2.4GHz/5.8GHz) | |
| Public network gateway module (4G/5G) | |
| GIS positioning module (GPS/Beidou) | |
| Weight | ≯2.6kg (without antenna) |
| Size | ≯260mm*130mm*100mm (excluding antenna) |
| Operating temperature | -20ºC~55ºC |
| Storage temperature | -40ºC~65ºC |
| Temperature and humidity range | 95%±3%, 40℃, non-condensing |
| Protection | IP65 |
| Installation | Handheld/Backpack |
- OEM wireless communication: The IWAVE FD-615VTN IP MESH Radio is ideal for OEM wireless communication in various industries such as oil and gas, mining, transportation, and construction. With its networking capability of ≮16 nodes and powerful encryption options, it provides a secure and reliable communication solution for remote and hazardous environments.
- NLOS communication: The IWAVE FD-615VTN IP MESH Radio is designed to provide non-line-of-sight (NLOS) communication in challenging environments such as urban areas, mountains, and forests. Its 800Mhz/1.4Ghz frequency band and powerful Lithium Battery(Removable)/AC Adapter power options ensure strong and stable connectivity in any situation.
- Emergency communication: The IWAVE FD-615VTN IP MESH Radio is an essential tool for emergency responders such as police, fire, and ambulance services. Its LAN (RJ45) input interface and support for Layer 2 Encryption, ZUC, SNOW3G, AES Optional encryption options ensure secure and reliable communication in crisis situations.
- Industrial communication: The IWAVE FD-615VTN IP MESH Radio is perfect for industrial communication in factories, warehouses, and other large facilities. Its networking capability, powerful encryption options, and reliable power options make it an excellent choice for maintaining smooth communication between workers and management.

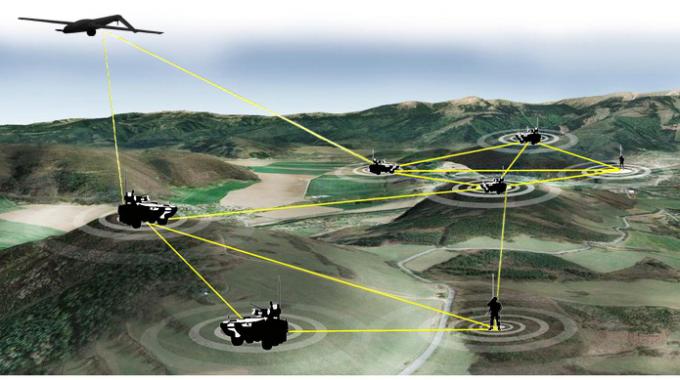

- Military communication: The IWAVE FD-615VTN IP MESH Radio is a highly reliable and secure communication tool for military personnel in the field. Its NLOS communication capability, powerful encryption options, and rugged design make it an ideal choice for maintaining communication in challenging environments.
Minimum Order Quantity for the IWAVE FD-615VTN IP MESH Radio is 2, and the Delivery Time is 14-21DAYS. Payment Terms are T/T, and the product originates from CHINA.
Our IP MESH Radio product technical support and services include:
24/7 technical support hotline
Online user manual and troubleshooting guides
On-site installation and training services
Warranty and repair services
Software updates and upgrades
Our team of experienced technical experts is dedicated to providing you with reliable and efficient support for your IP MESH Radio product. Contact us for any technical issues or service inquiries.
