| Brand Name: | IWAVE |
| Model Number: | FD-6710T |
| MOQ: | 2units |
| Price: | Negotiation |
| Delivery Time: | 15-20 working days |
| Payment Terms: | T/T |
Model: FD-6710T

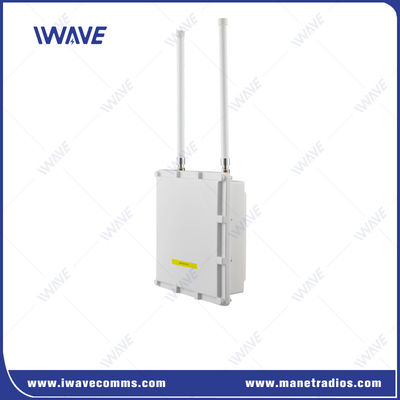

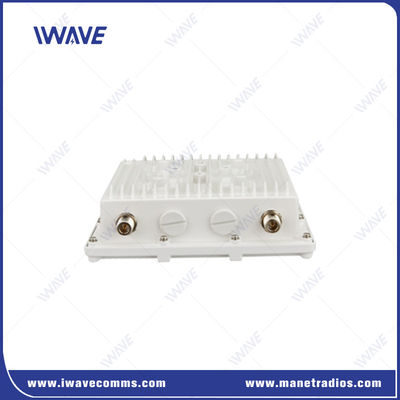

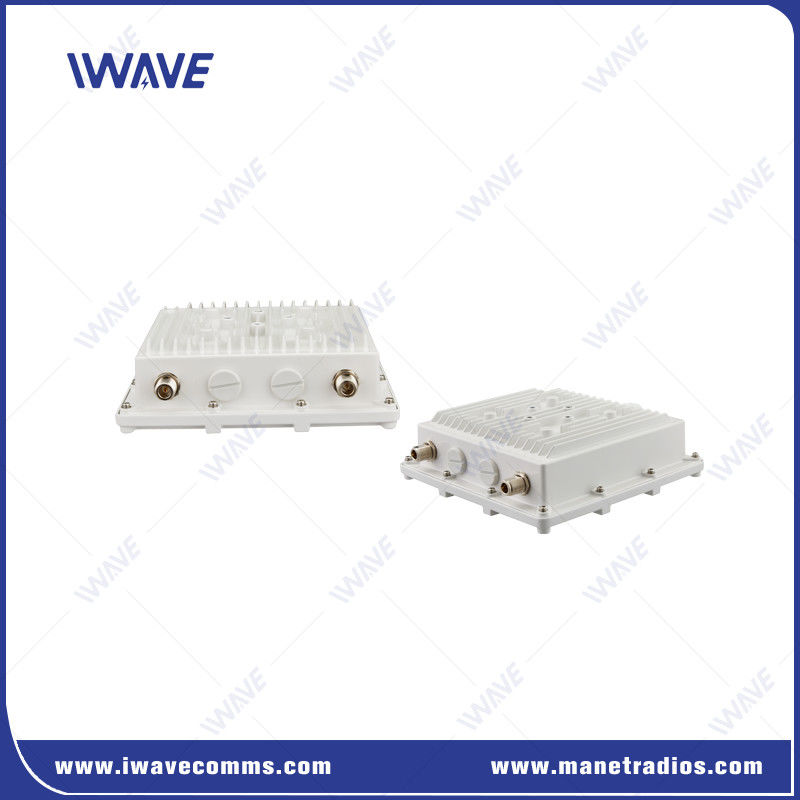

MIMO Broadband IP MESH Link With Outdoor Design For NLOS Video Transmitting
FD-6710T is an IP66 outdoor fixed wireless IP MESH link for building a no center, self-forming, self-adapting and self-healing dynamic routing/automatic relay communication mesh network. It achieves dynamic routing, multi-hop relay HD video, multi-channel data between different nodes of the same network in complex applications, such as fast movement, dense forest, and non-line-of-sight environmental.
Smart antenna MIMO and self-forming packet wireless mesh network AD-HOC/MESH, which make FD-6710T provide real-time HD video and broadband Ethernet connection with 30Mbps transmission rate. It Is special for wireless communication in critical private networks.
Features
▪ Bandwidth 1.4Mhz/3Mhz/5Mhz/10Mhz/20Mhz
▪ It Support 800Mhz/1.4Ghz frequency options
▪ It doesn't rely on any carrier's base station.
▪ Automatic frequency hopping technology for anti-interference
▪ Self-forming, self-healing mesh architecture
▪ Low latency end to end 60-80ms
▪ Support WEBUI for network management and parameter configurable.
▪ NLOS 10km-30km ground to ground distance
▪ Automatic power control
▪ Automatic frequency point control
▪ Supports UDP/TCPIP FULL HD Video transmission.
● Automatic Frequency Point Control
After booting, it will try to build network with the pre-stroed frequency points before the last shutdown. If the prestored frequency points are not suitable for building network, it willl automatically try to use other available frequency for network deployment.
● Automatic Power Control
The transmit power of each node is automatically adjusted and controlled according to its signal quality.
● Frequency-Hopping Spread Spectrum(FHSS)
Regarding to the frequency hopping function, IWAVE team has their own algorithm and mechanism.
IWAVE IP MESH product will internally calculate and evaluate the current link based on factors such as received signal strength RSRP, signal-to-noise ratio SNR, and bit error rate SER. If its judgment condition is met, it will perform frequency hopping and Select an optimal frequency point from the list.
Whether to perform frequency hopping depends on the wireless state. If the wireless state is good, frequency hopping will not be performed until the judgment condition is met.
MESH Network Management Software
IWAVE self-developed MESH network management software will real time show you the topology, RSRP, SNR, distance, IP address and other information of all the nodes. The software is WebUi based and you can login it anytime anywhere with IE browser. From the software, you can configure the settings per your requirement, such as working frequency, bandwidth, IP address, dynamic topology, real time distance between nodes, algorithm setting, up-down sub-frame ratio, AT commands, etc.
Application
FD-6710T is suitable for outdoor deployment as a mobile and fixed site system employed in terrestrial, airborne and maritime environments. Such as border surveillance, mining operations, remote oil and gas operations, urban backup communication infrastructure, private microwave networks etc.
Specification
|
GENERAL |
|||
| TECHNOLOGY | MESH | MOUNTING | POLE MOUNT |
| ENCRYPTION | ZUC/SNOW3G/AES (128/256) OptionalLayer-2 | ||
|
MECHANICAL |
|||
| NETWORKING TIME | ≤5s | TEMPERATURE | -20º to +55ºC |
| DATE RATE | 30Mbps (Uplink and Downlink) | Waterproof | IP66 |
| DIMENSIONS | 216*216*70mm | ||
| SENSITIVITY | 10MHz/-103dBm | WEIGHT | 1.3kg |
| RANGE | NLSO 10km-30km (Ground to ground)(Depends on the actual environment) | MATERIAL | Aluminum Alloy |
| NODE | 16 nodes | MOUNTING | Pole-mounted |
| MIMO | 2*2 MIMO |
POWER |
|
| POWER | 10watts | VOLTAGE | DC24V POE |
| MODULATION | QPSK, 16QAM, 64QAM | POWER CONSUMPTION | 30watts |
| ANTI-JAM | Automatically frequency hopping |
INTERFACES |
|
| LATENCY | End to END: 60ms-80ms | RF | 2 x N-Type |
|
FREQUENCY |
ETHERNET | 1xRJ45 | |
| 1.4Ghz | 1427.9-1447.9MHz | ||
| 800Mhz | 806-826 MHz | ||
|
SENSITIVITY |
||
| 1.4GHZ | 20MHZ | -100dBm |
| 10MHZ | -103dBm | |
| 5MHZ | -104dBm | |
| 3MHZ | -106dBm | |
| 800MHZ | 20MHZ | -100dBm |
| 10MHZ | -103dBm | |
| 5MHZ | -104dBm | |
| 3MHZ | -106dBm | |
| INTERFACES | |||
| RF | 2 x N-Type Antenna Port | ||
| PWER INPUT | 1 x Ethernet Port(POE 24V) | ||
| Other | 4*Mounting Holes | ||
Video
|
|
