| Brand Name: | IWAVE |
| Model Number: | FD-6700M |
| MOQ: | 2units |
| Price: | Negotiable |
| Delivery Time: | 5-8work days |
| Payment Terms: | L/C,D/P,T/T |

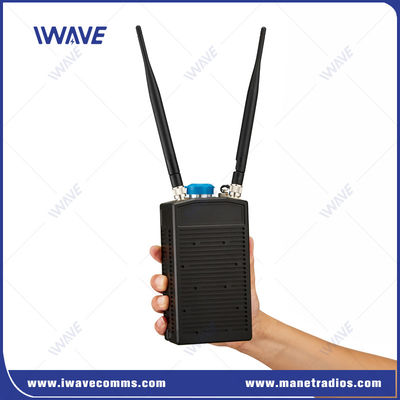

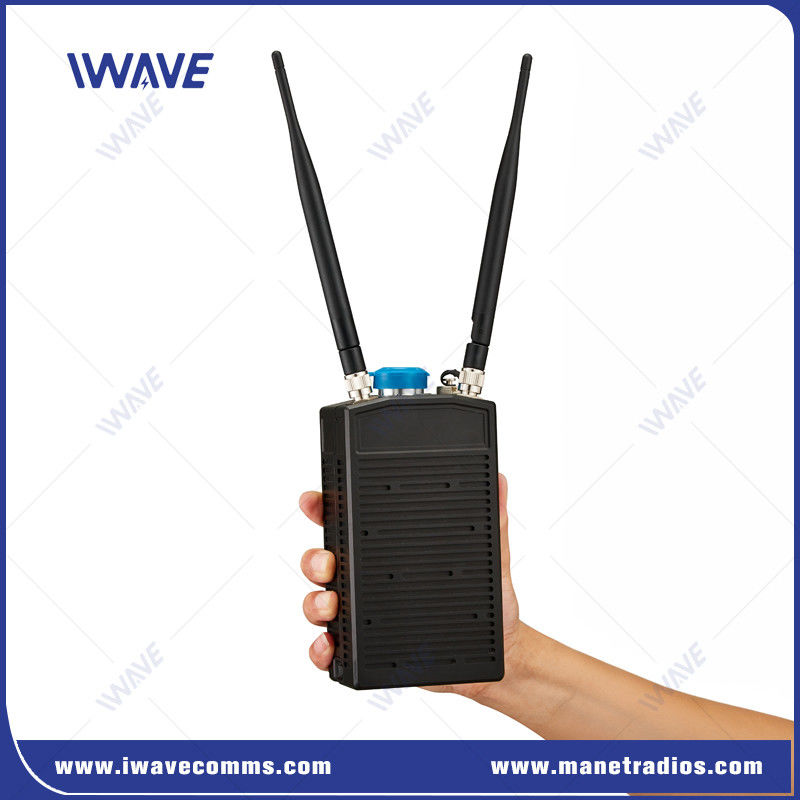

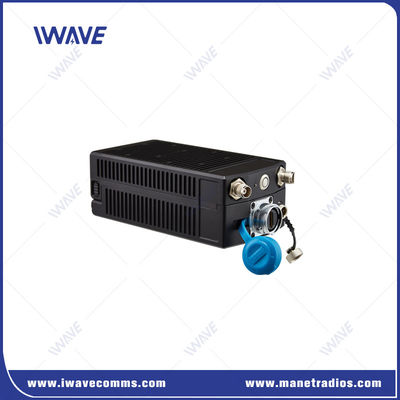

Handheld IP MESH Radio for Tactical HDMI Video Transmitting In NLOS
Teams on-the-move operate in complex RF environment and NLOS jungles, which require their wireless communication equipment has good flexibility and strong NLOS transmission ability.
FD-6700M offers a seamless and highly safe private network in NLOS and moving conditions. It employs a 5000mAh battery and compatible with Android mobile phone for video, voice and data transmitting. FD-6700M is ideal for variety of Tactical Mesh deployments.
FD-6700M comes with HDMI helmet cameras, GPS and RS232 interface are available.
Based on 2×2 MIMO technology, the FD-6700M Mobile Mesh Smart Radio can achieve a NLOS range of 1-3 km and throughput of up to 30 Mbps. It has been widely used as a handheld tactical radio.
Key Features
|
Strong NLOS Ability When your team carry out tasks in dense jungles, underground and mountains, FD-6700M makes your data move faster and longer by via its 2x2 MIMO technology. Teams equipped with the FD6700M will stay connected and able to share critical information. Real Time Video Streaming FD-6700M built in a HD-capable video encoder for HDMI camera input Real-Time Situational Awareness By sharing all the team members position and full motion HD video help leaders make quick decision. Tri-band Frequency Adjustable 800Mhz/1.4Ghz/2.4Ghz selectable on software based on the RF environment and signal quality. 10hours Continuous Working Designed with 5000mAh removable and rechargeable battery to meet a long time working time. Short Latency measured between endpoints in the loaded network, latency of the network averaged less than 30ms. Collaboration FD-6700m can smoothly work with IWAVE other type IP MESH device such as high power vehicle type, airborne type and UGV mount IP MESH Radio forming a big communication network |
 |
Application
Based on our advanced algorithm, FD-6700M provides secure, highly reliable connectivity for a range of demanding applications, including real-time video transmission for mobile surveillance, NLOS (non-line-of-sight) communications, and command and control of drones and robotics.
Specification
| GENERAL | |||
| TECHNOLOGY | MESH base on TD-LTE Wireless technology standard | ||
| ENCRYPTION | ZUC/SNOW3G/AES(128/256) OptionalLayer-2 | ||
| DATA RATE | 30Mbps(Uplink and Downlink) | ||
| RANGE | 500m-3km(nlos ground to ground) | ||
| CAPACITY | 32nodes | ||
| MIMO | 2x2 MIMO | ||
| POWER | 200mw | ||
| LATENCY | One Hop Transmission≤30ms | ||
| MODULATION | QPSK, 16QAM, 64QAM | ||
| ANTI-JAM | Automatically Cross-Band frequency hopping | ||
| BANDWIDTH | 1.4Mhz/3Mhz/5Mhz/10MHz/20MHz | ||
| POWER CONSUMPTION | 5Watts | ||
| BATTERY LIFE | 10Hours(Buckled Battery) | ||
| POWER INPUT | DC9V-12 | ||
| SENSITIVITY | |||
| 2.4GHZ | 20MHZ | -99dBm | |
| 10MHZ | -103dBm | ||
| 5MHZ | -104dBm | ||
| 3MHZ | -106dBm | ||
| 1.4GHZ | 20MHZ | -100dBm | |
| 10MHZ | -103dBm | ||
| 5MHZ | -104dBm | ||
| 3MHZ | -106dBm | ||
| 800MHZ | 20MHZ | -100dBm | |
| 10MHZ | -103dBm | ||
| 5MHZ | -104dBm | ||
| 3MHZ | -106dBm | ||
| FREQUENCY BAND | |||
| 2.4Ghz | 2401.5-2481.5 MHz | ||
| 1.4Ghz | 1427.9-1467.9MHz | ||
| 800Mhz | 806-826 MHz | ||
| MECHANICAL | |||
| Temperature | -25º to +75ºC | ||
| Weight | 1.3kg | ||
| Dimension | 18*9*6cm | ||
| MATERIAL | Anodized Aluminum | ||
| MOUNTING | Handheld Type | ||
| Stability | MTBF≥10000hr | ||
| INTERFACES | |||
| RF | 2 x TNC | ||
| On/Off | 1xPower on/off Button | ||
| Video Input | 1xHDMI | ||
| POWER | DC INPUT | ||
| INDICATOR | Tri-COLOR LED | ||
