| Brand Name: | IWAVE |
| Model Number: | FDM-6800 |
| MOQ: | 2Pcs |
| Price: | Negotiable |
| Delivery Time: | 5-8work days |
| Payment Terms: | L/C,D/P,T/T |

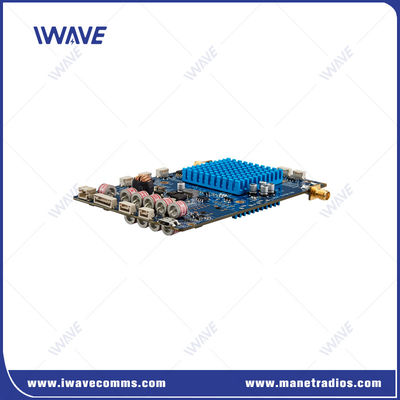

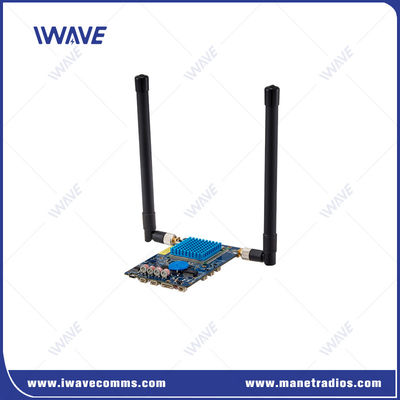

Wireless Transmitter Module For Ugv And Robotics With 8k Video And Control Data Transmitting
Introduction
FDM-6680 is an advanced digital data wireless communication system. It not only enables full duplex broadband, digital link, error correction techniques but also ensure a 100Mbps high-rate communication in the Uplink (UPL) and Downlink (DNL).
FDM-6680 can downlink real time video streaming, LAN, two way serial data and information from sensors.
It combines proven technologies and standards with advanced algorithms to provide reliability and high performance for the harshest environment. This makes it ideal for micro and small size platforms which are sensitive to Size, Weight and Power such as Drones, UAV, UGV, USV or other robotics.
Features
MIMO: 2X2 multiple-input and multiple-output
Tri-Ethernet Port to connect with a variety of IP external devices such as onboard PC, sensor, etc.
Support 64 nodes: 1 Central node support 64 units sub-nodes nodes
AES128 Encrypted to prevent unauthorized access.
Various bandwidth options: 3Mhz/5Mhz/10Mhz/20Mhz/40Mhz
Application
Dual Frequency 600Mhz & 1.4 GHz MIMO(2X2) Digital Data Link achieves robust RF performance and high data rate up to 100 Mbps. It is particularly well suited to providing robust wireless video links in mobile and non-line-of-sight urban environments with a range of 500meters -3km.
Specification
| Technology | Wireless based on TD-LTE Technology Standard |
| Encryption | ZUC/SNOW3G/AES(128) Optional Layer-2 |
| Data Rate | Up to 100Mbps(Uplink and Downlink) |
| Communication Range | Air to ground 20km NLOS Ground to ground 1-3km |
| Node | 64node |
| MIMO | 2x2 MIMO |
| RF Power | 23dBm±2 (2w, 5w or 10w on request) |
| Latency | End to end≤5ms-15ms |
| Modulation | Adaptive QPSK, 16QAM, 64QAM |
| Anti-Jamming | FHSS(Frequency Hop Spread Spectrum) |
| Bandwidth | 1.4Mhz/3Mhz/5Mhz/10MHz/20MHz/40Mhz |
| Power Consumption | 5watts |
| Power Input | DC5-32V |
| Dimension | 72*60*10mm |
| Weight | 33g |
| Dual Band Frequency | 1.4G: 1420Mhz-1530MHz |
| 600Mhz: 566Mhz-678Mhz | |

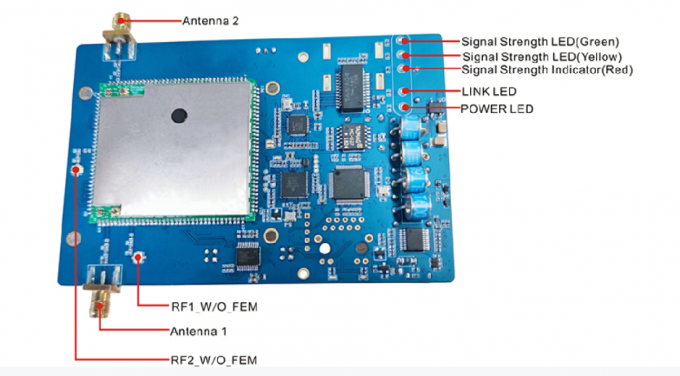

| RF | 2 x IPX |
| LAN Port | 3x Ethernet Port |
| Comuart | 2xCOMUART |
Video
|
|
