Advanced Broadband Digital Data Link For Unmanned Systems In Tri-Bands

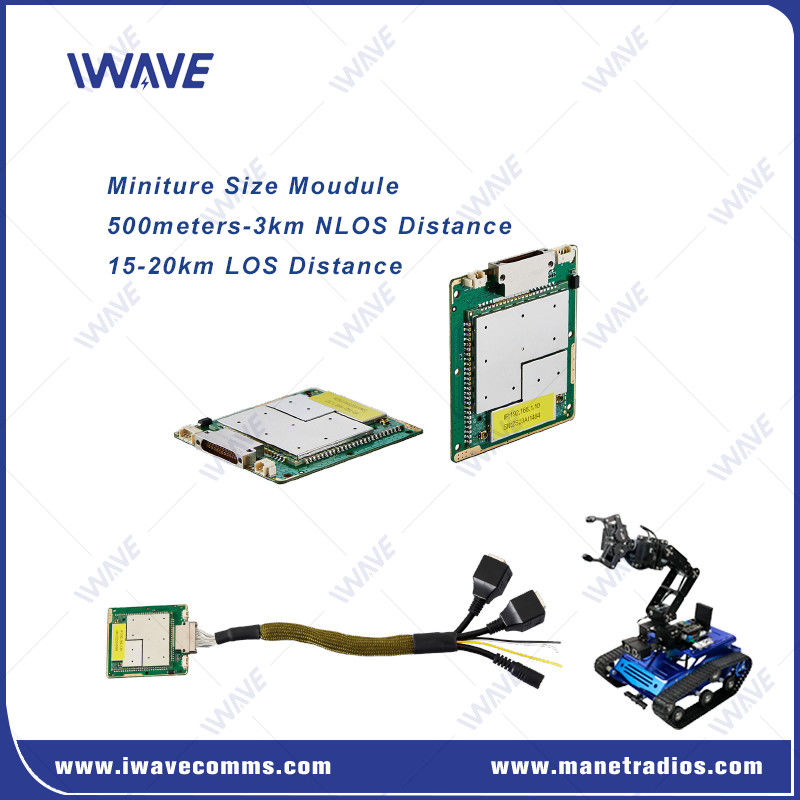

The FDM-66MN is an advanced broadband digital data link designed for secure wireless communication in mobile robotics and unmanned systems. It supports triple frequency bands—800MHz, 1.4GHz, and 2.4GHz—and can be managed via software for frequency selection, offering flexibility in various operational environments.

Key Features:

Triple Frequency Support: Selectable 800MHz, 1.4GHz, and 2.4GHz frequency bands to adapt to different communication needs and environments.

• Long-Range and High-Throughput: Provides reliable wireless video and telemetry communications with high throughput, ideal for both NLOS (Non-Line-of-Sight) and long-range applications.

• Secure Communication: Ensures secure data transmission for critical applications, making it suitable for sensitive operations like surveillance or inspection.

• IP-Based Serial Data Transmission: Allows control stations to manage and control multiple mobile robots (UGVs, drones, etc.) by transmitting serial data via IP addresses.

• Compact Design: With a size of 60 x 55 x 5.7mm, it is the smallest OEM wideband radio module, making it ideal for integration into small unmanned systems.

• Versatile Applications: Well-suited for use in swarming drones, UGVs, and other robotic systems, especially in environments such as indoor building inspections or tunnel explorations where traditional communication systems may not be viable.

Conclusion:

The FDM-66MN offers a compact, high-performance solution for secure wireless communication in mobile robotics and unmanned systems, particularly in challenging environments such as indoor inspections or NLOS scenarios. Its small form factor and triple frequency support make it an ideal choice for system integration into small drones, UGVs, and other mobile autonomous units.





Interface Definition



J30JZ Definition:
Pin	Name	Pin	Name	Name	Pin
1	TX0+	10	D+	19	COM_RX
2	TX0-	11	D-	20	UART0_TX
3	GND	12	GND	21	UART0_RX
4	TX4-	13	DC VIN	22	BOOT
5	TX4+	14	RX0+	23	VBAT
6	RX4-	15	RX0-	24	GND
7	RX4+	16	RS232_TX	25	DC VIN
8	GND	17	RS232_RX
9	VBUS	18	COM_TX





Application

• Swarming Drones: Ideal for coordination of multiple UAVs in swarm operations.

• UGVs and Autonomous Vehicles: Used for telemetry and control in unmanned ground vehicles.

• Robotic System Integration: Can be integrated into small, mobile robotic platforms for use in environments like indoor inspection and complex terrains where reliable communication is critical.

• Off-Grid Operations: Enables effective operation in disconnected environments without requiring a fixed infrastructure.





Specification



GENERAL
Technology	Wireless base on TD-LTE Wireless technology standard
Encryption	ZUC/SNOW3G/AES(128/256) OptionalLayer-2
Data Rate	30Mbps(Uplink and Downlink)
	Adaptive average distribution of system data rate
	Support users to set speed limit
Range	10km-15km(Air to ground)            500m-3km(NLOS Ground to ground)
Capacity	16nodes
Bandwidth	1.4MHz/3MHz/5MHz/10MHz/20MHz
Power	25dBm±2 (2w or 10w on request)            All nodes automatically adjust the transmitting power
Modulation	QPSK, 16QAM, 64QAM
Anti-Jamming	Automatically Cross-Band frequency hopping
Power Consumption	Average: 4-4.5Watts            Max: 8Watts
Power Input	DC5V-32V

Receiver Sensitivity			Sensitivity(BLER≤3%)
2.4GHZ	20MHZ	-99dBm	1.4Ghz	10MHz	-91dBm(10Mbps)
	10MHZ	-103dBm		10MHz	-96dBm(5Mbps)
	5MHZ	-104dBm		5MHz	-82dBm(10Mbps)
	3MHZ	-106dBm		5MHz	-91dBm(5Mbps)
1.4GHZ	20MHZ	-100dBm		3MHz	-86dBm(5Mbps)
	10MHZ	-103dBm		3MHz	-97dBm(2Mbps)
	5MHZ	-104dBm		2MHz	-84dBm(2Mbps)
	3MHZ	-106dBm	800Mhz	10MHz	-91dBm(10Mbps)
800MHZ	20MHZ	-100dBm		10MHz	-97dBm(5Mbps)
	10MHZ	-103dBm		5MHz	-84dBm(10Mbps)
	5MHZ	-104dBm		5MHz	-94dBm(5Mbps)
	3MHZ	-106dBm		3MHz	-87dBm(5Mbps)
				3MHz	-98dBm(2Mbps)
				2MHz	-84dBm(2Mbps)

FREQUENCY BAND
1.4Ghz	1427.9-1447.9MHz
800Mhz	806-826MHz
2.4Ghz	2401.5-2481.5 MHz
Communication Mode	Unicast, multicast, broadcast
Transmission Mode	Full Duplex
Networking Mode	Dynamic Routing	Automatically updat routes based on real-time link conditions
Network Control	State Monitoring	Connection status /rsrp/ snr/distance/ uplink and downlink throughput
System Management	WATCHDOG: all system-level exceptions can be identified, automatic reset
Re-transmission	L1	Determine whether to retransmit based on the different data being carried. (AM/UM); HARQ retransmits
	L2	HARQ retransmits

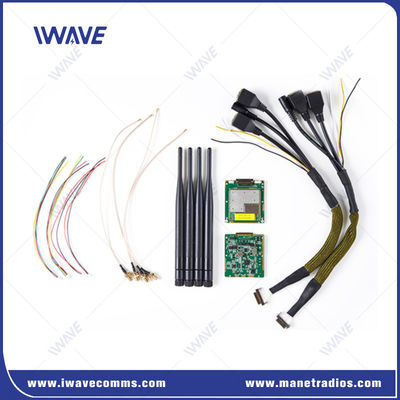

RF	2 x IPX
Ethernet	3xEthernet
Serial Port	2x RS232
Power Input	2*Power Input(alternative)

CONTROL DATA TRANSMISSION
Command Interface	AT command configuration	Support VCOM port/UART and other ports for AT command configuration
Configuration Management	Support configuration via WEBUI, API, and software
Working Mode	TCP server mode            TCP client mode            UDP mode            UDP multicast            MQTT            Modbus	●When set as a TCP server, the serial port server waits for computer connection.            ●When set as a TCP client, the serial port server actively initiates a connection to the network server specified by the destination IP.            ●TCP server, TCP client, UDP, UDP multicast, TCP server/client coexistence, MQTT
Baud Rate	1200, 2400, 4800, 7200, 9600, 14400, 19200, 28800, 38400, 57600, 76800, 115200, 230400, 460800
Transmission Mode	Pass-through mode
Protocol	ETHERNET, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS, MQTT, Modbus TCP, DLT/645

MECHANICAL
Temperature	-40℃~+80℃
Weight	26grams
Dimension	60*55*5.7mm
Stability	MTBF≥10000hr
