| Brand Name: | IWAVE |
| Model Number: | FD-7802MT |
| MOQ: | 2 |
| Price: | Negotiable |
| Delivery Time: | 5-10days |
| Payment Terms: | T/T |

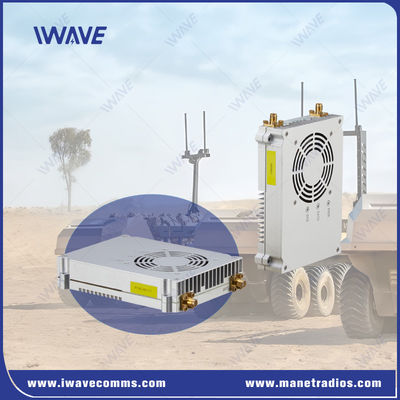

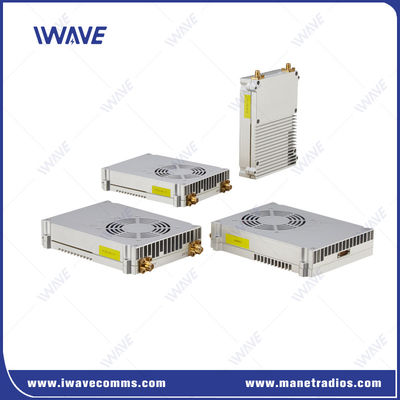

IP MESH Radio For Unmanned System 5km NLOS Video And Control Data
Description
FD-7802MT adopts MESH networking mode to provide IP transparent transmission channels for upper layer applications such as video and data.
FD-7802MT support 100Mbps transmission data rate,it special designed for multiple cameras on one drone,Its high bandwidth(100Mbps) can support multiple video streams to be transmitted to the control ground station at the same time.it can also support 1-5km NLOS transmission distance in harsh and obstacles environment.
The FD-7802MT is an ideal solution for mission-critical communication needs, providing robust, secure, and scalable connectivity in complex, non-line-of-sight environments. Its adaptability, ease of deployment, and high-performance capabilities make it an excellent choice for a wide range of applications.
Features
Flexible Deployment: Enables quick network creation with high compatibility, low power consumption, and high bandwidth, ensuringfast deployment in a variety of challenging environments.
Multi-Hop Connectivity: Supports multi-hop relay, making it ideal for extended communication ranges in large or obstructed areas.
In addition to supporting MIMO mode, FD-7802MT also uses LTE-A's CA technology (Carrier aggregation). FD-7802MT supports dual carriers and can support a maximum operating bandwidth of 40MHz: 2X20MHz.
WCompared with MIMO mode, CA mode has no restrictions on the installation location and spacing distance of device antennas, making deployment more flexible and easier to achieve high-bandwidth data transmission.
This robust digital data link provides a robust and secure link in the 600 MHz and 1.4G frequency band

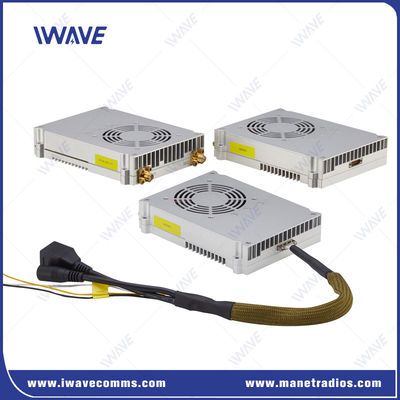

J30 Aviation Plug Interface: The FD-7802MT features a robust J30 aviation plug interface, ensuring durability and ease of connection.
Multiple Communication Options: Supports both Ethernet and serial port communication, providing flexibility for integration with various devices.
Wired Ethernet Access: Offers reliable Ethernet connectivity for stable, high-speed data transmission and control.
Application
Autonomous Unmanned Platforms
Designed for unmanned excavators, tractors, cranes, robots, and vehicles, ensuring reliable video and telemetry communications.
Industrial and Tactical Operations
Supports operations in harsh RF environments, including urban, forested, and mountainous areas.
OEM Integration
Provides an API document and strong R&D support for OEMs to facilitate secondary development and seamless integration.
Specification
|
GENERAL |
WIRELESS |
|||
|
Technology |
Wireless based on TD-LTE Technology Standards |
Communication |
1T1R 1T2R 2T2R |
|
|
Video Transmission |
1080p HD video transmission, H.264/H.265 adaptive |
IP Data transmission |
Supports data transmission based on IP packets |
|
|
Eencryption |
ZUC/SNOW3G/AES(128) Optional Layer-2 |
Data Link |
Full duplex communication |
|
|
Data Rate |
Max 100Mbps(Uplink and Downlink) |
Up & Down Ratio |
2D3U/3D2U/4D1U/1D4U |
|
|
Range |
UGV: 5-10KM Ground to ground(LOS) UGV: 1-3KM Ground to ground(NLOS) |
Automatic Reconstruction Chain |
Automatic link re-establishment after link failure/ re-deploy the network after a link failure |
|
|
Capacity |
64nodes |
SENSITIVITY |
||
|
MIMO |
2x2 MIMO |
1.4GHZ |
20MHZ |
-102dBm |
|
Transmitting Power |
2watts |
10MHZ |
-100dBm |
|
|
Latency |
Air interface delay<30ms |
5MHZ |
-96dBm |
|
|
Modulation |
QPSK, 16QAM, 64QAM |
600MHZ |
20MHZ |
-102dBm |
|
Anti-Jamming |
Frequency Hopping and Adaptive Modulation |
10MHZ |
-100dBm |
|
|
Bandwidth |
1.4Mhz/3Mhz/5Mhz/10MHz/20MHz/40Mhz |
5MHZ |
-96dBm |
|
|
Power Consumption |
30Watts |
FREQUENCY OPTION |
||
|
Power Input |
DC24V-DC27V |
1.4Ghz |
1420Mhz-1530MHz |
|
|
Dimension |
130*100*25mm(Antenna Not Included) |
600Mhz |
566Mhz-678Mhz |
|
|
MECHANICAL |
||
|
Working Temperture |
-20℃~+55℃ |
|
|
Dimension |
130*100*25mm(Antenna Not Included) |
|
|
Weight |
273g |
|
|
INTERFACES |
||
|
RF |
2 x SMA |
|
|
ETHERNET |
1xEthernet |
|
|
COMUART |
3xSerial Port |
1. DEBUG Serial Port 2. Base Serial Port (only support TCP/UDP) 3. Extend Serial Port |
|
POWER |
1xDC INPUT |
DC24V-27V |
Q&A
Q:What are the main communication interfaces supported by the FD-7802MT?
A:The FD-7802MT supports:
Ethernet communication for high-speed data transmission.
Serial port communication (RS232) for integration with various devices.
J30 aviation plug interface for reliable, secure connections in rugged environments.
Q:How does the FD-7802MT handle interference?
A:The FD-7802MT employs Automatic Frequency Hopping (FHSS) and adaptive modulation techniques to mitigate interference. This allows the device to dynamically switch to the best available frequency and maintain stable communication in environments with RF noise and congestion.
|
|
