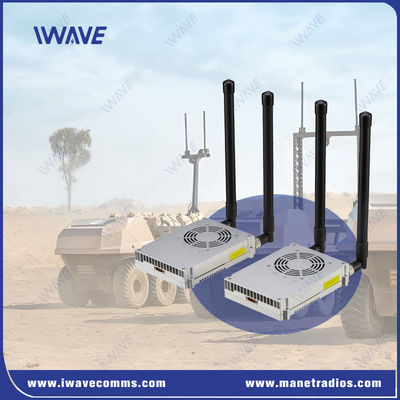

100Mbps MIMO(2x2) IP Digital Data Link For UGV And UAV For Multiple Cameras
Description

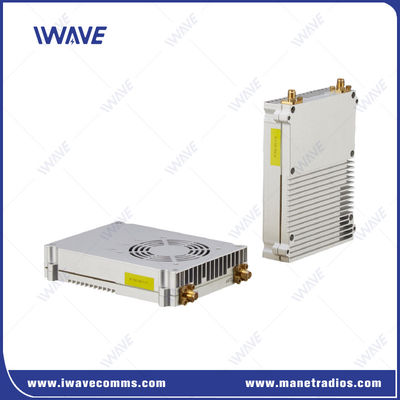

FDM-6802PTM is a wireless transmission product designed by IWAVE based on mature SOC chipset, 2watts power, 2X2 MIMO.It provides wireless communication link of HD video, data and serial control data based on IP.
FDM-6802PTM is designed based on CA (Carrier Aggregation), MIMO technologies. It doesn't rely on any carrier's base station.This digital data link provides a robust and secure link in the 600 MHz and 1.4G frequency band.FDM-6802PTM can provide real-time HD video and broadband Ethernet connection with 100Mbps transmission rate.
It has great advantages in applied for VTOL/fixed wing drone/helicopter wireless transmission with only 273g weight.
Key Features
Bandwidth: 1.4Mhz/3Mhz/5Mhz/10Mhz/20Mhz
Transmitting Power: 33dBm
Support 800Mhz/1.4Ghz frequency options
Air to ground 50km range
NLOS 1km-5km ground to ground distance
Automatic power control
Automatic frequency point control
Ethernet communication via J30 interface
RS232 communication via J30 interface
Dimension and Weight: W: 273g/D: 130*100*25mmmm
Anti-jamming: FHSS(Frequency Hopping Spread Sprectrum)
FDM-6802PTM adopts IWAVE team’s speical algorithm and mechanism to achieve frequency hopping function.
During working, FDM-6802PTM will internally calculate and evaluate the current link based on factors such as received signal strength RSRP, signal-to-noise ratio SNR, and bit error rate SER. If its judgment condition is met, it will perform frequency hopping and Select an optimal frequency point from the list.
Whether to perform frequency hopping depends on the wireless state. If the wireless state is good, frequency hopping will not be performed until the judgment condition is met.
Applications:
HD Video and Data Transmission: Ensures stable and secure communication links for video streaming, telemetry, and control.
Dynamic Network Environments: Ideal for rapidly changing, high-demand wireless environments.
Industrial and Tactical Use: Supports applications in drones, autonomous vehicles, and other critical systems requiring robust, long-range communication.
Specification
|
GENERAL |
WIRELESS |
|||
|
Technology |
Wireless based on TD-LTE Technology Standards |
Communication |
1T1R |
|
|
Video Transmission |
1080p HD video transmission, H.264/H.265 adaptive |
IP Data transmission |
Supports data transmission based on IP packets |
|
|
Eencryption |
ZUC/SNOW3G/AES(128) Optional Layer-2 |
Data Link |
Full duplex communication |
|
|
Data Rate |
Max 100Mbps(Uplink and Downlink) |
Up & Down Ratio |
2D3U/3D2U/4D1U/1D4U |
|
|
Range |
UGV: 5-10KM Ground to ground(LOS) |
Automatic Reconstruction Chain |
Automatic link re-establishment after link failure/ re-deploy the network after a link failure |
|
|
Capacity |
64nodes |
SENSITIVITY |
||
|
MIMO |
2x2 MIMO |
1.4GHZ |
20MHZ |
-102dBm |
|
Transmitting Power |
2watts |
10MHZ |
-100dBm |
|
|
Latency |
Air interface delay<30ms |
5MHZ |
-96dBm |
|
|
Modulation |
QPSK, 16QAM, 64QAM |
600MHZ |
20MHZ |
-102dBm |
|
Anti-Jamming |
Frequency Hopping and Adaptive Modulation |
10MHZ |
-100dBm |
|
|
Bandwidth |
1.4Mhz/3Mhz/5Mhz/10MHz/20MHz/40Mhz |
5MHZ |
-96dBm |
|
|
Power Consumption |
30Watts |
FREQUENCY OPTION |
||
|
Power Input |
DC24V-DC27V |
1.4Ghz |
1420Mhz-1530MHz |
|
|
Dimension |
86*120*24.2mm |
600Mhz |
634Mhz-674Mhz |
|
|
MECHANICAL |
||
|
Working Temperture |
-20℃~+55℃ |
|
|
Dimension |
130*100*25mm(Antenna Not Included) |
|
|
Weight |
273g |
|
|
INTERFACES |
||
|
RF |
2 x SMA |
|
|
ETHERNET |
1xEthernet |
|
|
COMUART |
3xSerial Port |
1. DEBUG Serial Port |
|
POWER |
1xDC INPUT |
DC24V-27V |
|
Command Interface |
AT command configuration |
API/HTTP/UART for AT command configuration |
|
Configuration Management |
Support configuration via WEBUI, API, and management software |
|
|
Working Mode |
TCP server mode |
lWhen set as a TCP server, the serial port server waits for computer connection.
lWhen set as a TCP client, the serial port server actively initiates a connection to the network server specified by the destination IP.
lTCP server, TCP client, UDP, UDP multicast, TCP server/client coexistence, MQTT
|
|
Baud rate |
1200, 2400, 4800, 7200, 9600, 14400, 19200, 28800, 38400, 57600, 76800, 115200, 230400, 460800 |
|
|
Protocol |
ETHERNET, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS, MQTT, Modbus TCP, DLT/645, Pass-through mode |
|
|
System Management |
Supports WATCHDOG function, all system-level exceptions can be identified and automatically reset |
|
|
|
