| Brand Name: | IWAVE |
| Model Number: | FDM-605PTM |
| MOQ: | 2units |
| Price: | Negotiable |
| Delivery Time: | 5-8work days |
| Payment Terms: | L/C,D/P,T/T |

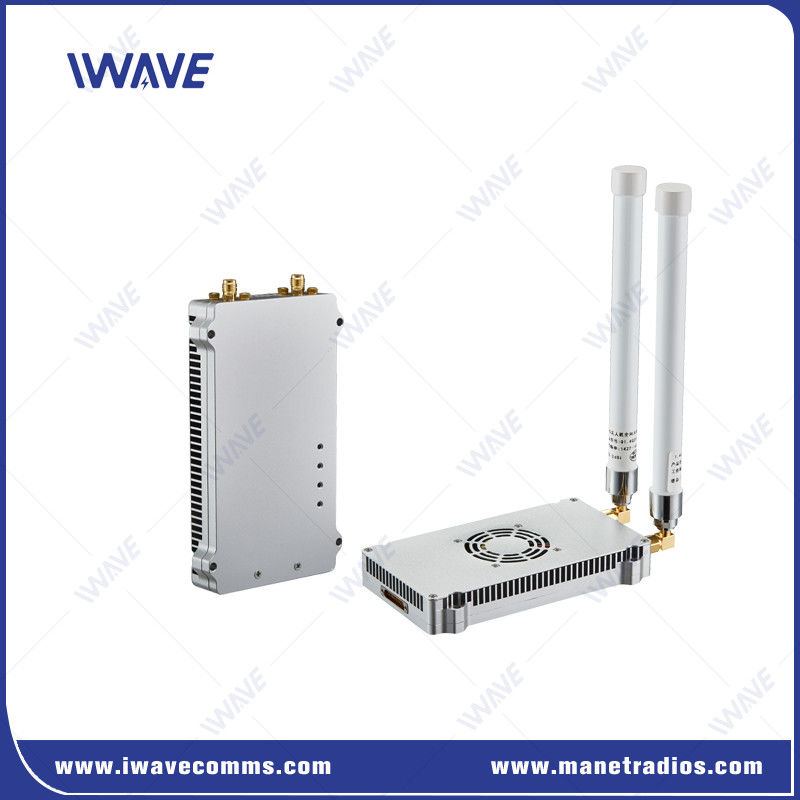

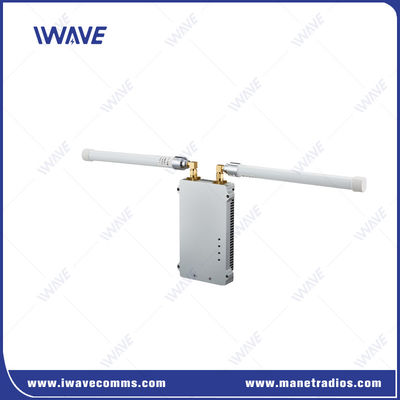

2Watts 2*2 MIMO Broadband IP Point To Multi-Point Link For Unmanned System
Description
The FDM-605PTM is a cutting-edge network board designed for long-range video and data downlink applications, offering robust performance in challenging Non-Line-of-Sight (NLOS) environments. Specifically tailored for unmanned excavators, tractors, cranes, and vehicles, this solution ensures seamless communication over distances of 1-5 km in forests, harsh terrains, and urban settings.
Key Features
|
Advantage Technology
Automatic Power Control
The transmit power of each node is automatically adjusted and controlled according to its signal quality.
Automatic Frequency Point Control
After booting, it will try to network with the pre-stored frequency points before the last shutdown. If the pre-stored frequency points are not suitable for network deployment, it will automatically try to use other available frequency points for network deployment.
Applications:
Unmanned Industrial Machinery
Enables real-time video monitoring and data transfer for excavators, tractors, cranes, and vehicles, improving operational efficiency and safety.
Wireless Transmission in Challenging Environments
Designed for NLOS operations in areas with dense obstacles or harsh conditions.
Critical Private Networks
Ideal for establishing secure communication links in industrial and tactical operations, ensuring uninterrupted data flow.
Remote Control and Monitoring
Provides long-range, secure, and high-speed connectivity, empowering remote operations and surveillance.
High Bandwidth: Efficiently handles video and data communication with low latency.
Anti-Interference: Advanced FHSS and adaptive modulation ensure uninterrupted operation in challenging RF environments.
Plug-and-Play: Simplifies deployment with automatic configuration and dynamic networking.
Durable and Flexible: The J30 aviation plug interface and multiple communication options make it suitable for various rugged applications.
Specification
|
GENERAL |
MECHANICAL |
||
| TECHNOLOGY | Wireless based on TD-LTE Access Technology | TEMPERATURE | -20+55 |
| ENCRYPTION | ZUC/SNOW3G/AES (128/256) OptionalLayer-2 Encryption | DIMENSIONS | 116*70*17mm |
| DATE RATE | 30Mbps | WEIGHT | 100g |
| SENSITIVITY | -103dBm | ||
| RANGE | 50km (Air to ground) | MATERIAL | Silver Anodized Aluminum |
| MODE | Point to multi-point | MOUNTING | Onboard |
| MIMO | 2x2 MIMO |
POWER |
|
| MODULATION | QPSK, 16QAM, 64QAM | ||
| RF POWER | 33dbm | VOLTAGE | DC 12V |
| LATENCY | End to END: 60ms-80ms | POWER CONSUMPTION | 11watts |
| ANTI-JAM | Automatically frequency hopping | ||
|
FREQUENCY |
INTERFACES |
||
| 1.4Ghz | 1427.9-1447.9MHz | RF | 2 x SMA |
| 800Mhz | 806-826 MHz | ETHERNET | 1xJ30 |
| 2.4Ghz | 2401.5-2481.5 MHz | ||
| PWER INPUT | 1xJ30 | ||
| TTL Data | 1xJ30 | ||
| Debug | 1xJ30 | ||
|
COMUART |
|
| Electrical Level | 3.3V and compatible with 2.85V |
| Control Data | RS232 |
| Baud rate | 115200bps |
| Transmission Mode | Pass-through mode |
| Priority Level | Higher priority than the network portWhen the signal transmission is crowed, the control data will be transmitted in priority |
| Note: 1. The data transmitting and receiving is broadcast in the network. After successful networking, each FDM-605PTM unit can receive serial data. 2. If you want to distinguish between sending, receiving and control, you need to define the format yourself |
|
|
SENSITIVITY |
||
| 1.4GHZ | 20MHZ | -100dBm |
| 10MHZ | -103dBm | |
| 5MHZ | -104dBm | |
| 3MHZ | -106dBm | |
| 800MHZ | 20MHZ | -100dBm |
| 10MHZ | -103dBm | |
| 5MHZ | -104dBm | |
| 3MHZ | -106dBm | |
|
|
