| Brand Name: | IWAVE |
| Model Number: | FD-7802MT |
| MOQ: | 2 |
| Price: | Negotiable |
| Delivery Time: | 5-10days |
| Payment Terms: | T/T |

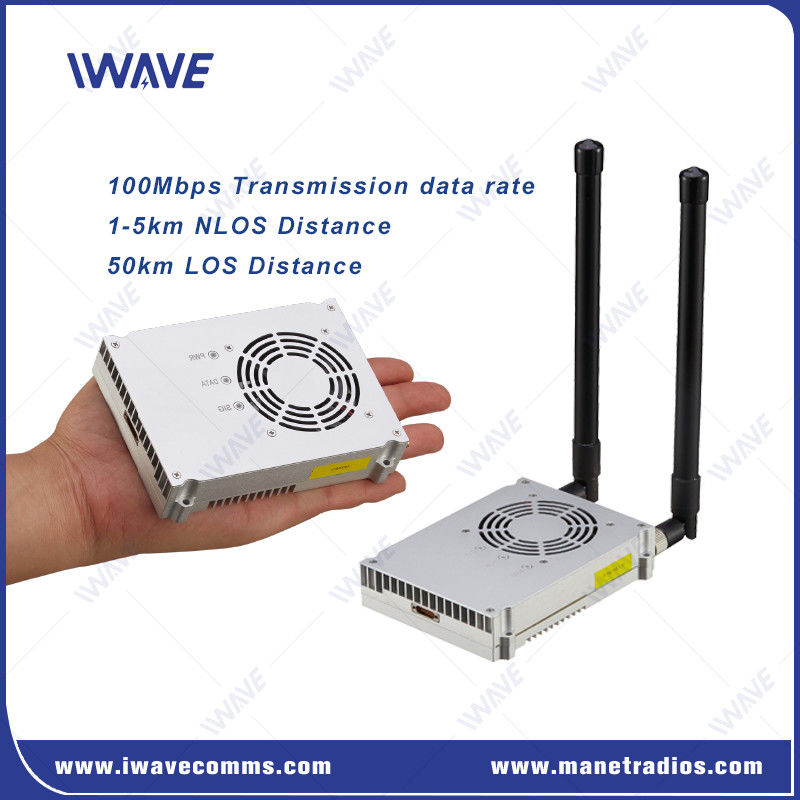

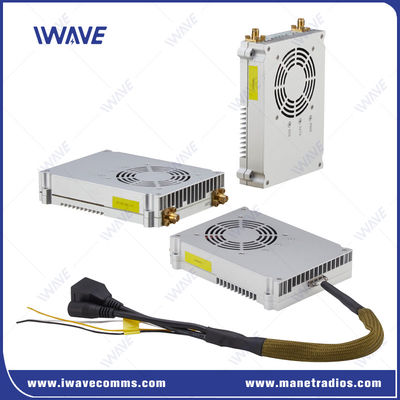

IP Transparent Transmission For Unmanned System With 100Mbps Data Rate
Description
FD-7802MT adopts MESH networking mode to provide IP transparent transmission channels for upper layer applications such as video and data.
The FD-7802MT is an advanced MESH network solution that provides IP-transparent transmission channels for video, data, and voice applications. It uses dynamic routing and multi-hop relay to enable reliable communication in complex environments, including non-line-of-sight (NLOS) conditions and fast-moving scenarios. It is ideal for applications such as video streaming, data transmission, and voice communication.
FD-7802MT support 100Mbps transmission data rate,it special designed for multiple cameras on one drone,Its high bandwidth(100Mbps) can support multiple video streams to be transmitted to the control ground station at the same time.it can also support 1-5km NLOS transmission distance in harsh and obstacles environment.
Features
FD-7802MT adopts MESH networking mode to provide IP transparent transmission channels for upper layer applications such as video and data.
FD-7802MT achieves dynamic routing, multi-hop relay HD video, multi-channel data and fidelity voice between different nodes of the same network in complex applications, such as fast movement and non-line-of-sight environmental distance.
FD-7802MT adopts the two-layer high dynamic networking protocol independently developed by the IWAVE team to achieve a good adaptability to wireless network environments, dynamic networking performance and transmission capabilities.
Technology Advantage
FDM-7802MT adopts carrier aggregation technology CA technology, which can aggregate two 20MHz bandwidth carriers together to achieve 40MHz wireless carrier bandwidth, effectively improving the uplink and downlink transmission rates, and enhancing the robustness and environmental adaptability of the entire wireless transmission system.
1. Supports a larger total bandwidth, supports 20MHz+20MHz carrier aggregation, and the data transmission peak rate exceeds 100Mbps.
2. Supports continuous carrier aggregation and non-continuous carrier aggregation, which is more flexible.
Application
The FD-7802MT is designed for use in challenging environments, including:
Non-Line-of-Sight (NLOS) environments: Such as forests, cities, or mountainous regions.
Fast-moving applications: Like unmanned vehicles and mobile teams.
Dynamic and complex RF environments: Where traditional infrastructure is not available or reliable.
Specification
|
GENERAL |
WIRELESS |
|||
|
Technology |
Wireless based on TD-LTE Technology Standards |
Communication |
1T1R 1T2R 2T2R |
|
|
Video Transmission |
1080p HD video transmission, H.264/H.265 adaptive |
IP Data transmission |
Supports data transmission based on IP packets |
|
|
Eencryption |
ZUC/SNOW3G/AES(128) Optional Layer-2 |
Data Link |
Full duplex communication |
|
|
Data Rate |
Max 100Mbps(Uplink and Downlink) |
Up & Down Ratio |
2D3U/3D2U/4D1U/1D4U |
|
|
Range |
UGV: 5-10KM Ground to ground(LOS) UGV: 1-3KM Ground to ground(NLOS) |
Automatic Reconstruction Chain |
Automatic link re-establishment after link failure/ re-deploy the network after a link failure |
|
|
Capacity |
64nodes |
SENSITIVITY |
||
|
MIMO |
2x2 MIMO |
1.4GHZ |
20MHZ |
-102dBm |
|
Transmitting Power |
2watts |
10MHZ |
-100dBm |
|
|
Latency |
Air interface delay<30ms |
5MHZ |
-96dBm |
|
|
Modulation |
QPSK, 16QAM, 64QAM |
600MHZ |
20MHZ |
-102dBm |
|
Anti-Jamming |
Frequency Hopping and Adaptive Modulation |
10MHZ |
-100dBm |
|
|
Bandwidth |
1.4Mhz/3Mhz/5Mhz/10MHz/20MHz/40Mhz |
5MHZ |
-96dBm |
|
|
Power Consumption |
30Watts |
FREQUENCY OPTION |
||
|
Power Input |
DC24V-DC27V |
1.4Ghz |
1420Mhz-1530MHz |
|
|
Dimension |
130*100*25mm(Antenna Not Included) |
600Mhz |
566Mhz-678Mhz |
|
|
MECHANICAL |
||
|
Working Temperture |
-20℃~+55℃ |
|
|
Dimension |
130*100*25mm(Antenna Not Included) |
|
|
Weight |
273g |
|
|
INTERFACES |
||
|
RF |
2 x SMA |
|
|
ETHERNET |
1xEthernet |
|
|
COMUART |
3xSerial Port |
1. DEBUG Serial Port 2. Base Serial Port (only support TCP/UDP) 3. Extend Serial Port |
|
POWER |
1xDC INPUT |
DC24V-27V |
Q&A
Q:How does the FD-7802MT provide multi-hop relay?
A:The FD-7802MT uses its MESH networking mode to automatically route data between nodes in a network. With multi-hop relay, data can travel through several nodes, ensuring continuous communication even over long distances or when obstacles prevent direct communication between nodes. The dynamic routing protocol enables seamless data flow between nodes without manual configuration.
Q:Can the FD-7802MT be used for video transmission?
A:Yes, the FD-7802MT is capable of transmitting HD video, making it ideal for video surveillance, remote monitoring, and live streaming applications. It supports high-definition video transmission over long distances, even in non-line-of-sight conditions.
|
|
