| Brand Name: | IWAVE |
| Model Number: | FDM-6600 |
| MOQ: | 2pieces |
| Price: | Negotiation |
| Delivery Time: | 3-7working days |
| Payment Terms: | T/T |
Model:FDM-6600
Strongest Tri-band NLOS Wireless Ethernet & Full Duplex TTL Serial Data Link
Introduction

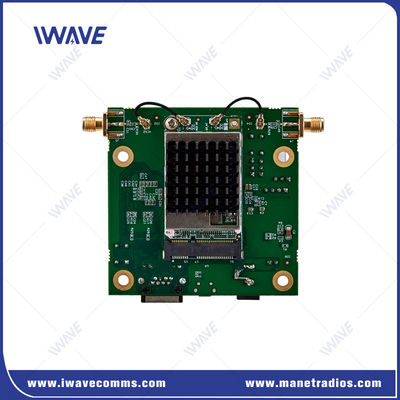

FDM-6600 is SoftwareDefined Radio(SDR) Advanced Wireless Video and Data Links designed with light weight, small size and low power. It is the Strongest Tri-band NLOS Wireless Ethernet & Full Duplex TTL Serial Data Link which adopt the FHSS technology and can avoid the interference.The tiny module support video and full duplex data communication (e.g. Telemetry) in a single high-speed broadband RF channel, which make it perfect for UAV, autonomous vehicles, and mobile robotics for various industries.
Key Features
Tri-Band Frequency Support:Operates on 800 MHz, 1.4 GHz, and 2.4 GHz frequencies.
Employs cross-band hopping to avoid interference; for instance, if the 2.4 GHz band experiences interference, the system can seamlessly switch to 1.4 GHz, ensuring a stable and high-quality connection.
Scalable Point-to-Multipoint Networks:
One master node can support up to 32 slave nodes.
Configurable through a user-friendly web UI, which displays a real-time topology of all node connections, allowing for effective monitoring and management of the network.
Advanced Encryption Technology:
Incorporates AES-128 encryption to safeguard data transmissions, protecting the data link from unauthorized access.
Robust Long Range Communication

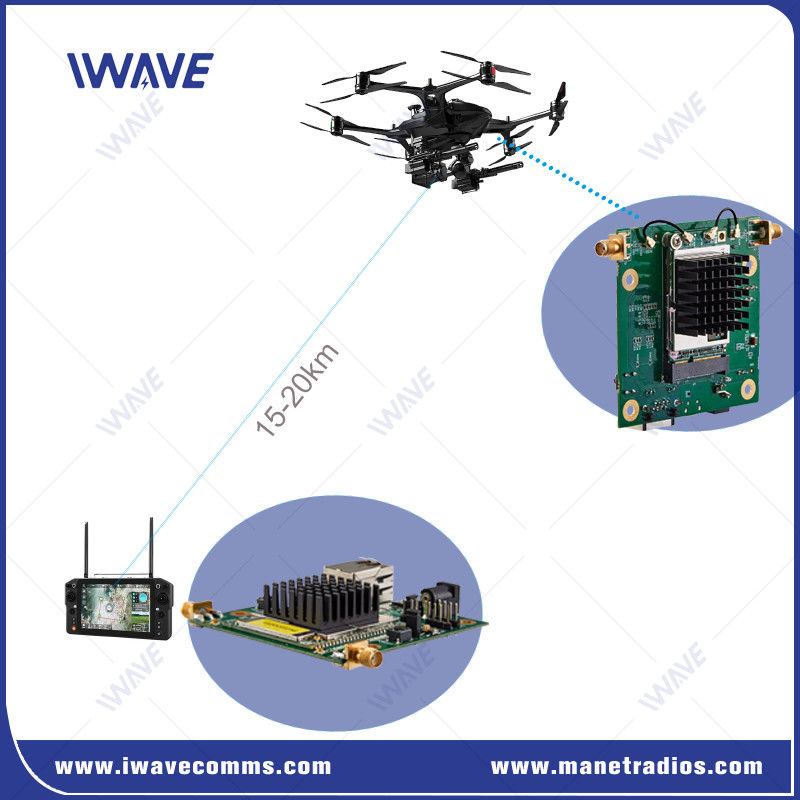

Air to Ground: Achieves a range of up to 20 km with clear and stable radio signals.
Ground to Ground (NLOS): Effective communication up to 3 km in non-line-of-sight conditions, supporting smooth and full HD video streaming.
High Throughput
Supports data rates of up to 30 Mbps for both uplink and downlink, ensuring efficient data transmission for real-time applications.
These features enhance the FDM-6600's reliability and security, making it suitable for various applications, including surveillance, broadcasting, and industrial communications. If you need further information or specific details, just let me know!
Applications
The FDM-6600 is suitable for a variety of applications, including:
Surveillance Systems: For real-time video monitoring in security operations.
Broadcasting: Facilitating live video feeds in media production.
Industrial Automation: Enabling data transmission in smart manufacturing setups.
Specification
| GENERAL | ||
| TECHNOLOGY | Wireless based on TD-LTE Technology Standards | |
| ENCRYPTION | ZUC/SNOW3G/AES(128) OptionalLayer-2 | |
| DATA RATE | 30Mbps(Uplink and Downlink) | |
| RANGE | 10km-15km(Air to ground)500m-3km(NLOS Ground to ground) | |
| CAPACITY | Star Topology, Point to 17-Ppint | |
| POWER | 25dBm (2w or 10w on request) | |
| LATENCY | One Hop Transmission≤30ms | |
| MODULATION | QPSK, 16QAM, 64QAM | |
| ANTI-JAM | Automatically Cross-Band frequency hopping | |
| BANDWIDTH | 1.4Mhz/3Mhz/5Mhz/10MHz/20MHz | |
| POWER CONSUMPTION | 5Watts | |
| POWER INPUT | DC5V | |
| SENSITIVITY | ||
| 2.4GHZ | 20MHZ | -99dBm |
| 10MHZ | -103dBm | |
| 5MHZ | -104dBm | |
| 3MHZ | -106dBm | |
| 1.4GHZ | 20MHZ | -100dBm |
| 10MHZ | -103dBm | |
| 5MHZ | -104dBm | |
| 3MHZ | -106dBm | |
| 800MHZ | 20MHZ | -100dBm |
| 10MHZ | -103dBm | |
| 5MHZ | -104dBm | |
| 3MHZ | -106dBm | |
| FREQUENCY BAND | ||
| 2.4Ghz | 2401.5-2481.5 MHz | |
| 1.4Ghz | 1427.9-1467.9MHz | |
| 800Mhz | 806-826 MHz | |
| COMUART | ||
| Electrical Level | 2.85V voltage domain and compatible with 3V/3.3V level | |
| Control Data | TTL mode | |
| Baud rate | 115200bps | |
| Transmission Mode | Pass-through mode | |
| Priority level | Higher priority than the network port. When the signal transmission is crowed, the control data will be transmitted in priority | |
| Note:1. The data transmitting and receiving is broadcast in the network. After successful networking, each FDM-6600 node can receive serial data. 2. If you want to distinguish between sending, receiving and control, you need to define the format yourself |
||
| INTERFACES | ||
| RF | 2 x SMA | |
| ETHERNET | 1xEthernet | |
| COMUART | 1x COMUART | |
| POWER | DC INPUT | |
| INDICATOR | Tri-COLOR LED | |
| MECHANICAL | ||
| Temperature | -40℃~+80℃ | |
| Weight | 50grams | |
| Dimension | 7.8*10.8*2cm | |
| Stability | MTBF≥10000hr | |
|
|
