| Brand Name: | IWAVE |
| Model Number: | FDM-6600 |
| MOQ: | 2pieces |
| Price: | Negotiation |
| Delivery Time: | 3-7working days |
| Payment Terms: | T/T |
Model:FDM-6600

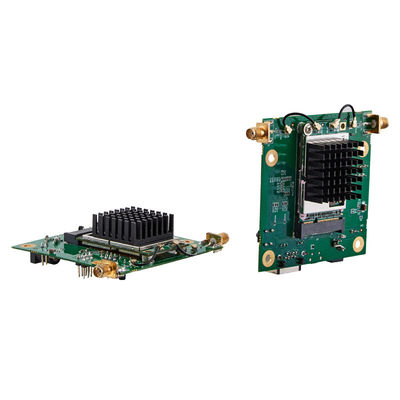

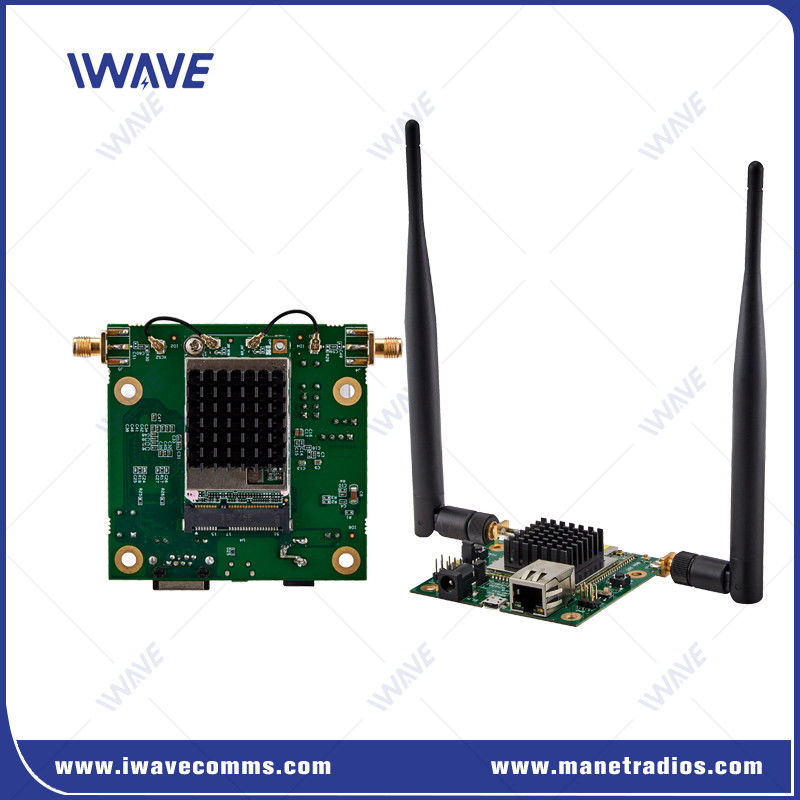

15km LOS Wireless Broadband Video Data Transmitting Module
Introduction
The FDM-6600 15km LOS Wireless Broadband Video Data Transmitting Module is a sophisticated communication device designed to meet the high demands of modern industrial environments. It provides a seamless and robust connection for real-time data and video transmission, supporting multiple wireless network protocols for reliable and efficient data exchange.
Supported Protocols
The module supports a comprehensive range of protocols, ensuring compatibility with existing network infrastructures:
TCP/IP: Standard network communication.
UDP: Faster, connectionless data delivery.
DHCP: Dynamic IP address allocation.
DNS: Domain name resolution.
HTTP/HTTPS: Secure web access
Key Features
Encryption:AES 128-bit encryption for secure remote data transfer.
Supported Protocols:TCP/IP, UDP, DHCP, DNS, HTTP, HTTPS, facilitating versatile network wireless protocols.
Certifications:Compliant with MIC and CE standards, ensuring safety and reliability.
Power Supply:Operates on a 5VDC power supply for consistent performance.
Antenna Type:Features an external SMA connector for enhanced connectivity.
Applications
Surveillance and Security:
Extensively used in security systems for monitoring large areas such as city centers, industrial parks, airports, and borders. Multiple cameras can transmit live video feeds to a central control room, enhancing situational awareness and response capabilities.
Broadcast and Event Coverage:
In the broadcasting industry, point-to-multipoint wireless systems enable the transmission of live video from various locations at events (e.g., sports stadiums, concerts, or conferences) to a production studio or broadcast van, facilitating real-time coverage and production.
Emergency Response:
During natural disasters, accidents, or other emergencies, first responders can utilize wireless video transmission to share real-time video feeds from drones, body cameras, or vehicle-mounted cameras with command centers, aiding in quicker decision-making and coordination.
If you need additional details or specific information, feel free to ask!
Specification
| GENERAL | ||
| TECHNOLOGY | Wireless based on TD-LTE Technology Standards | |
| ENCRYPTION | ZUC/SNOW3G/AES(128) OptionalLayer-2 | |
| DATA RATE | 30Mbps(Uplink and Downlink) | |
| RANGE | 10km-15km(Air to ground)500m-3km(NLOS Ground to ground) | |
| CAPACITY | Star Topology, Point to 17-Ppint | |
| POWER | 25dBm (2w or 10w on request) | |
| LATENCY | One Hop Transmission≤30ms | |
| MODULATION | QPSK, 16QAM, 64QAM | |
| ANTI-JAM | Automatically Cross-Band frequency hopping | |
| BANDWIDTH | 1.4Mhz/3Mhz/5Mhz/10MHz/20MHz | |
| POWER CONSUMPTION | 5Watts | |
| POWER INPUT | DC5V | |
| SENSITIVITY | ||
| 2.4GHZ | 20MHZ | -99dBm |
| 10MHZ | -103dBm | |
| 5MHZ | -104dBm | |
| 3MHZ | -106dBm | |
| 1.4GHZ | 20MHZ | -100dBm |
| 10MHZ | -103dBm | |
| 5MHZ | -104dBm | |
| 3MHZ | -106dBm | |
| 800MHZ | 20MHZ | -100dBm |
| 10MHZ | -103dBm | |
| 5MHZ | -104dBm | |
| 3MHZ | -106dBm | |
| FREQUENCY BAND | ||
| 2.4Ghz | 2401.5-2481.5 MHz | |
| 1.4Ghz | 1427.9-1467.9MHz | |
| 800Mhz | 806-826 MHz | |
| COMUART | ||
| Electrical Level | 2.85V voltage domain and compatible with 3V/3.3V level | |
| Control Data | TTL mode | |
| Baud rate | 115200bps | |
| Transmission Mode | Pass-through mode | |
| Priority level | Higher priority than the network port. When the signal transmission is crowed, the control data will be transmitted in priority | |
| Note:1. The data transmitting and receiving is broadcast in the network. After successful networking, each FDM-6600 node can receive serial data. 2. If you want to distinguish between sending, receiving and control, you need to define the format yourself |
||
| INTERFACES | ||
| RF | 2 x SMA | |
| ETHERNET | 1xEthernet | |
| COMUART | 1x COMUART | |
| POWER | DC INPUT | |
| INDICATOR | Tri-COLOR LED | |
| MECHANICAL | ||
| Temperature | -40℃~+80℃ | |
| Weight | 50grams | |
| Dimension | 7.8*10.8*2cm | |
| Stability | MTBF≥10000hr | |
|
|
