| Brand Name: | IWAVE |
| Model Number: | FDM-6800 |
| MOQ: | 2 |
| Price: | Negotiable |
| Delivery Time: | 5-8work days |
| Payment Terms: | T/T |

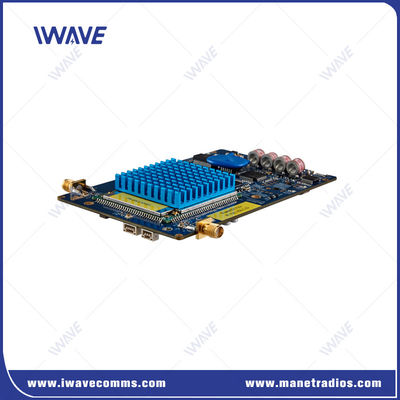

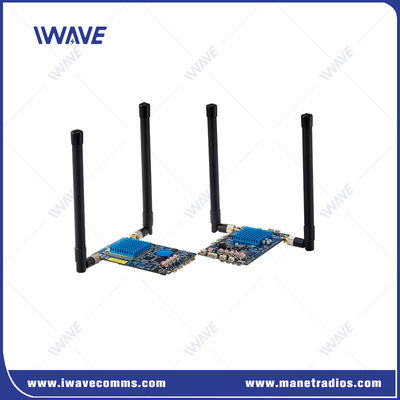

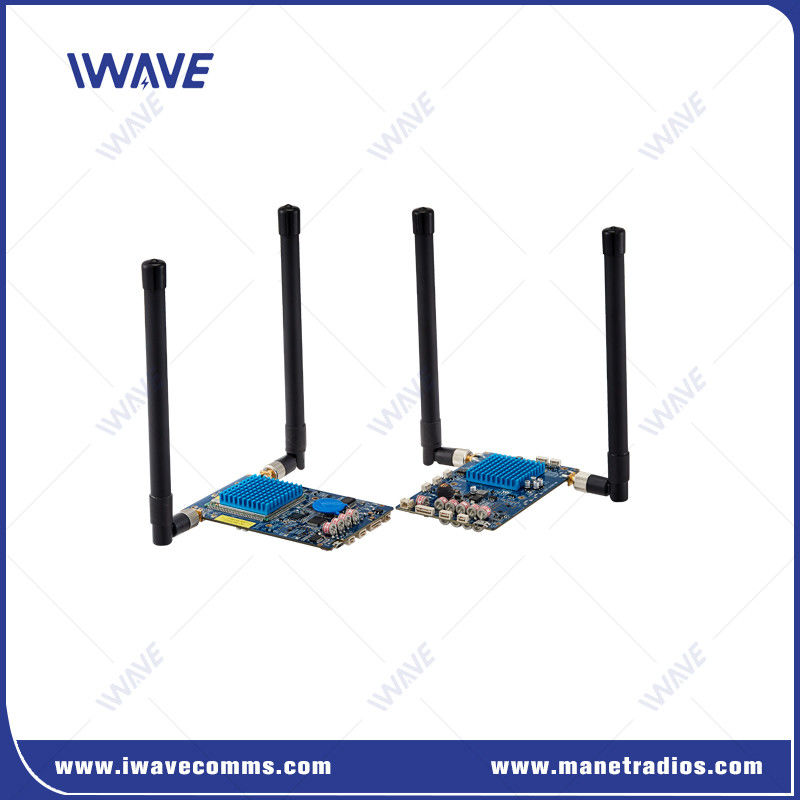

4K FHD Video Wirless Transmitter Module
Introduction
The FDM-6800 point to multipoint Digital 4k FHD Video Wireless Transmiter for nlos range, point to 64units points, high sensitivity, high power, 2X2 MIMO wireless OEM solution. Its robust digital data link provides a robust and secure link in the software selectable 566Mhz-626MHz and 1420Mhz-1530MHz frequency bands. In complex RF environment, its automatically frequency hopping between different bands makes it have strong antiblocking and anti-interference performance.
The FDM-6800 was designed based on the TD-LTE technology standards and SOC chips to achieve robust RF performance with first-class sensitivity. Even though the signal is weak, the wireless link between nodes is still stable and reliable.
The miniature, lightweight and robust design allows the FDM-6800 to be an ideal candidate for size sensitive applications. The high speed, nlos long range capabilities of the FDM-6800 allow for high quality wireless video and telemetry communications.
Key Features
|
|
 |
Application Of Unmanned System
Ethernet Wireless Extension
Wireless Telemetry
NLOS Wireless Video Transmitting
Control Systems
UAVs, UGVs, AUVs
Specification
| Technology | Wireless based on TD-LTE Technology Standard |
| Encryption | ZUC/SNOW3G/AES(128) Optional Layer-2 |
| Data Rate | Up to 100Mbps(Uplink and Downlink) |
| Communication Range | Air to ground 20km NLOS Ground to ground 1-3km |
| Node | 64node |
| MIMO | 2x2 MIMO |
| RF Power | 23dBm±2 (2w, 5w or 10w on request) |
| Latency | End to end≤5ms-15ms |
| Modulation | Adaptive QPSK, 16QAM, 64QAM |
| Anti-Jamming | FHSS(Frequency Hop Spread Spectrum) |
| Bandwidth | 1.4Mhz/3Mhz/5Mhz/10MHz/20MHz/40Mhz |
| Power Consumption | 5watts |
| Power Input | DC5-32V |
| Dimension | 72*60*10mm |
| Weight | 33g |
| Dual Band Frequency | 1.4G: 1420Mhz-1530MHz |
| 600Mhz: 566Mhz-678Mhz | |

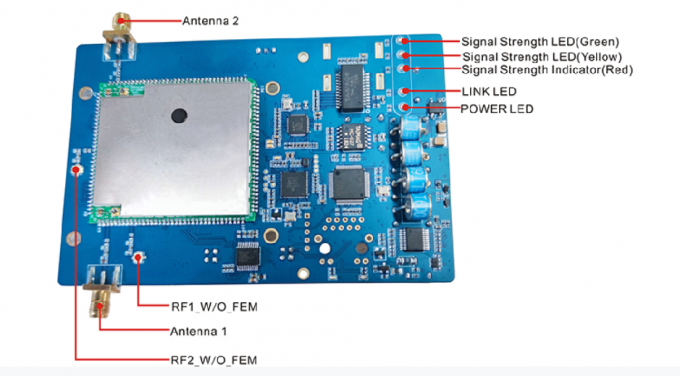

| RF | 2 x IPX |
| LAN Port | 3x Ethernet Port |
| Comuart | 2xCOMUART |
|
|
