| Brand Name: | IWAVE |
| Model Number: | FDM-6600 |
| MOQ: | 2pcs |
| Price: | Negotiable |
| Delivery Time: | 5-8work days |
| Payment Terms: | L/C,D/P,T/T |

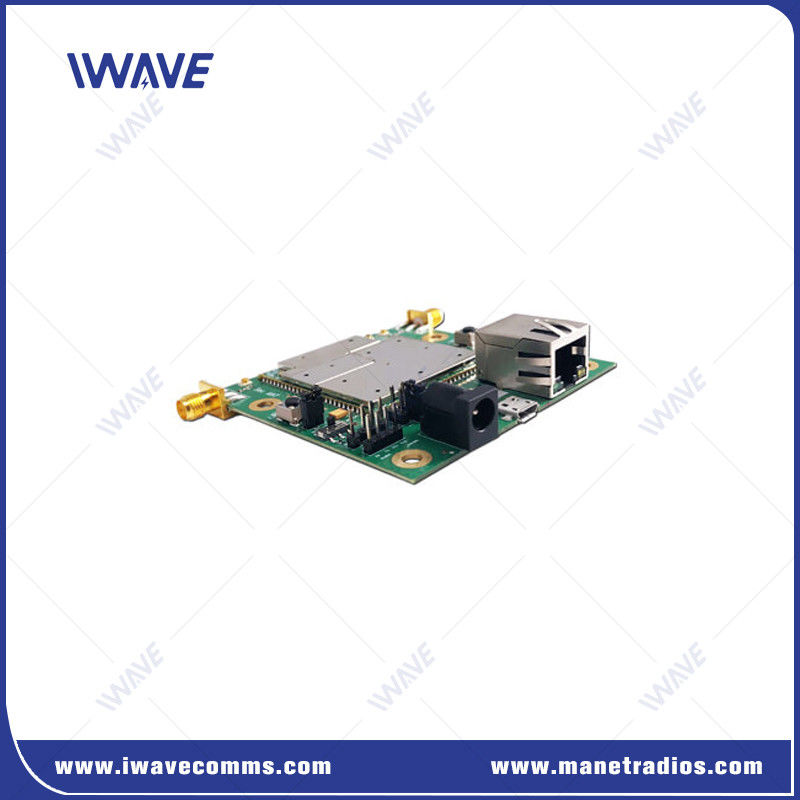

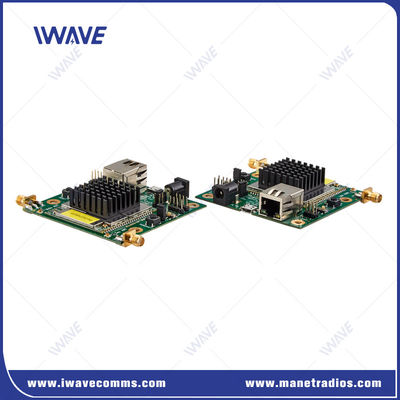

PtMP Wireless MIMO OEM Digital Data Link
Introduction
FDM-6600 Digital Data Link radios provide secure and reliable point-to-point and point-to-multipoint applications where high bandwidth links are required. The data rate is up to be 30Mbps. FDM-6600 radio provides unparalleled performance for simultaneous video requirements.
Frequency hopping spread spectrum (FHSS) is the best choice for immunity to noise and interference. FDM-6600 use FHSS to deliver your ethernet signal reliably over very long distances.
FDM-6600 supports multi frequency band: 800Mhz/1.4Ghz/2.4Ghz. It provides high bandwidth Ethernet for size and weight applications such as remote video, robotics, and other wireless Ethernet data transmitting systems.
Key Features
|
 |
Benefits of Appliying Wireless links to Unmanned Ground Vehicles (UGVs):
Enhanced Mobility and Flexibility: Wireless links enable UGVs to operate without the constraints of physical cables, allowing them to navigate through diverse and challenging terrains with greater ease and flexibility.
Real-Time Communication: With wireless communication, UGVs can transmit data, images, and video feeds in real-time to a control station or operator. This ensures that critical information is relayed instantly, facilitating quick decision-making and response.
Extended Operational Range: Wireless links extend the operational range of UGVs, enabling them to perform tasks in remote or hazardous areas where direct human intervention is not feasible or safe.
Improved Situational Awareness: By receiving real-time data and video feeds from UGVs, operators can have a better understanding of the environment and situation on the ground. This enhanced situational awareness is crucial for effective mission planning and execution.
Specification
| GENERAL | ||
| TECHNOLOGY | Wireless based on TD-LTE Technology Standards | |
| ENCRYPTION | ZUC/SNOW3G/AES(128) OptionalLayer-2 | |
| DATA RATE | 30Mbps(Uplink and Downlink) | |
| RANGE | 10km-15km(Air to ground)500m-3km(NLOS Ground to ground) | |
| CAPACITY | Star Topology, Point to 17-Ppint | |
| POWER | 25dBm (2w or 10w on request) | |
| LATENCY | One Hop Transmission≤30ms | |
| MODULATION | QPSK, 16QAM, 64QAM | |
| ANTI-JAM | Automatically Cross-Band frequency hopping | |
| BANDWIDTH | 1.4Mhz/3Mhz/5Mhz/10MHz/20MHz | |
| POWER CONSUMPTION | 5Watts | |
| POWER INPUT | DC5V | |
| SENSITIVITY | ||
| 2.4GHZ | 20MHZ | -99dBm |
| 10MHZ | -103dBm | |
| 5MHZ | -104dBm | |
| 3MHZ | -106dBm | |
| 1.4GHZ | 20MHZ | -100dBm |
| 10MHZ | -103dBm | |
| 5MHZ | -104dBm | |
| 3MHZ | -106dBm | |
| 800MHZ | 20MHZ | -100dBm |
| 10MHZ | -103dBm | |
| 5MHZ | -104dBm | |
| 3MHZ | -106dBm | |
| FREQUENCY BAND | ||
| 2.4Ghz | 2401.5-2481.5 MHz | |
| 1.4Ghz | 1427.9-1467.9MHz | |
| 800Mhz | 806-826 MHz | |
| COMUART | ||
| Electrical Level | 2.85V voltage domain and compatible with 3V/3.3V level | |
| Control Data | TTL mode | |
| Baud rate | 115200bps | |
| Transmission Mode | Pass-through mode | |
| Priority level | Higher priority than the network port. When the signal transmission is crowed, the control data will be transmitted in priority | |
| Note:1. The data transmitting and receiving is broadcast in the network. After successful networking, each FDM-6600 node can receive serial data. 2. If you want to distinguish between sending, receiving and control, you need to define the format yourself |
||

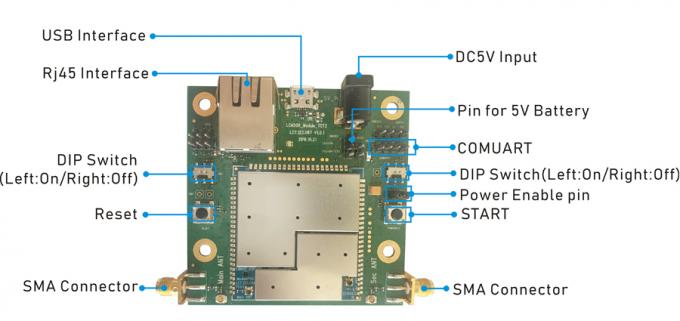

| INTERFACES | ||
| RF | 2 x SMA | |
| ETHERNET | 1xEthernet | |
| COMUART | 1x COMUART | |
| POWER | DC INPUT | |
| INDICATOR | Tri-COLOR LED | |
| MECHANICAL | ||
| Temperature | -40℃~+80℃ | |
| Weight | 50grams | |
| Dimension | 7.8*10.8*2cm | |
| Stability | MTBF≥10000hr | |
|
|
