20km FPGA UAV Telemetry Video Data Link

Introduction

FDM-6800 is a broadband 2X2 MIMO data transmission device. It supports a variety of bandwidth allocation and IP communication function, allowing for the creation of a local wireless LAN. With its two-way data transmission and lightweight design, it is well-suited for small UAV telemetry control and low-latency video acquisition.
Weighing just 33g, consuming only 5W of power consumption but delivering 200mW of output power, the FDM-6800 is ideal for size and weight critical UxV applications, offering the SWaP of a bare-board solution.

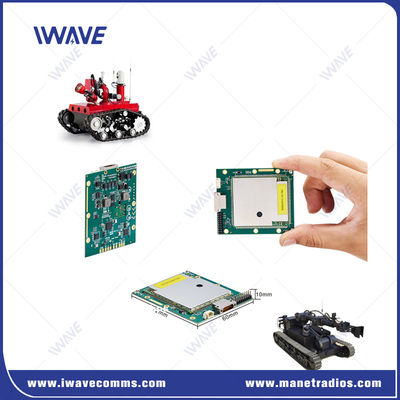

The FDM-6800 is available in OEM (bare board) format for platform integration. With our API document users can easily integrate it into own system.

Application

FDM-6800 works in 600MHz and 1.4GHz dual-frequency band simultaneously. Users can manually select the working frequency via our network management. Users can also turn on the frequency hopping function, at this time, FDM-6800 will work on both band. Once interferenced, it will quickly and automatically hop its working frequency between 600Mhz and 1.4Ghz.
Not only we build superior technology, we help you get the most from it. Out-of-the-box functionality. Ongoing support. Relentless research and development.

Features

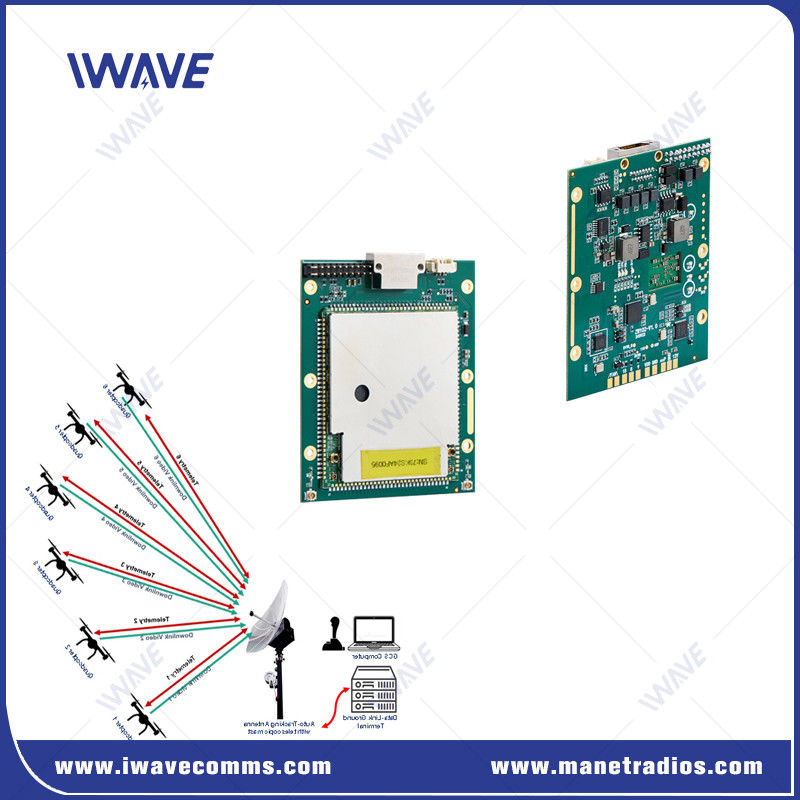

• One master node supports 64 slave node

• Air to ground 20km wireless video, mavelink and telemetry data transmission

• Support non line of sight (NLOS) 1-3km mobile transmission

• FHSS within bands and accross bands for anti-interference

• Dual band selectable 600Mhz and 1.4Ghz

• Frequency hop from 600Mhz to 1.4Ghz for anti-jamming

• Small dimension, light weight, easy to install

• Highly integrated modular combination design

• RJ45/TTL/RS232/RS485/RS422/SBUS (Customizable)

• Software defined radio,SDR, easy webpage operation

• Network management software to real monitor the SNR, RSSI, Topology and distance between nodes.

• API document is available for integrated into the third party platform.


Specification
