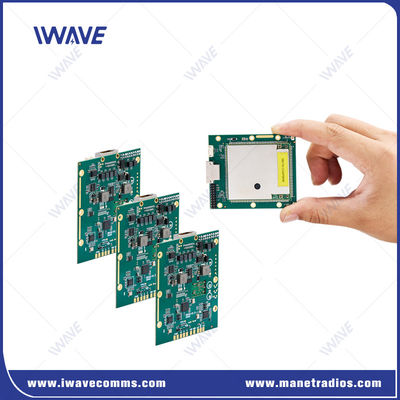

20km Unmanned System Video MAVLINK Data Link for UAV
Introduction
With its advanced IP star networking high speed hopping frequency technology, FDM-6800 is particularly valuable in challenging environments.The FDM-6800 is a software defined radio ideally suited for a range of manned, unmanned, commercial and tactical applications.
FDM-6800 adopts the technical design solutions such as the two-layer high dynamic networking protocol independently developed by the IWAVE team, and has good adaptability to wireless network environments, dynamic networking performance and transmission capabilities.
Features
FDM-6800 works in 600MHz and 1.4GHz dual-frequency band simultaneously. Users can manually select the working frequency via our network management. Users can also turn on the frequency hopping function, at this time, FDM-6800 will work on both band. Once interferenced, it will quickly and automatically hop its working frequency between 600Mhz and 1.4Ghz.

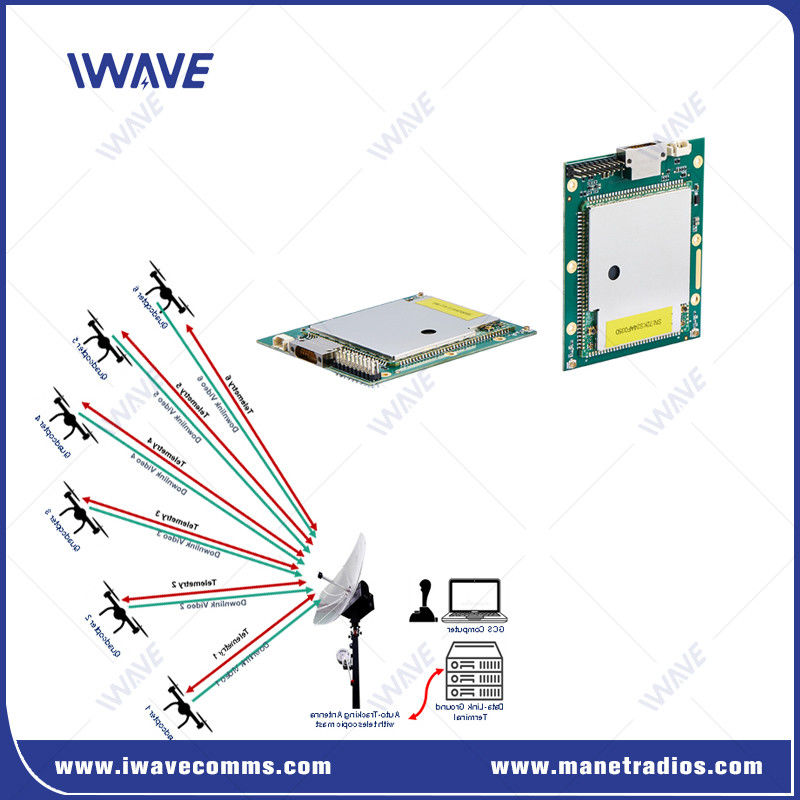

If FDM-6800 is set to work as a central node, it can form a star-shaped wireless network in the air, and other small quadcopter nodes can be connected to it, supporting up to 64 nodes.
Application
Drone/robot/Vehicle collaborative networking
Stable/real-time/long-distance communication
Full duplex telemetry control data transmission
Full HD video transmission for NLOS/LOS
Ethernet Wireless Extension
Wireless Telemetry
Wireless Video
Control Systems
Specification
| Technology | Wireless based on TD-LTE Technology Standard |
| Encryption | ZUC/SNOW3G/AES(128) Optional Layer-2 |
| Data Rate | Up to 100Mbps(Uplink and Downlink) |
| Communication Range | Air to ground 20km NLOS Ground to ground 1-3km |
| Node | 64node |
| MIMO | 2x2 MIMO |
| RF Power | 23dBm±2 (2w, 5w or 10w on request) |
| Latency | End to end≤5ms-15ms |
| Modulation | Adaptive QPSK, 16QAM, 64QAM |
| Anti-Jamming | FHSS(Frequency Hop Spread Spectrum) |
| Bandwidth | 1.4Mhz/3Mhz/5Mhz/10MHz/20MHz/40Mhz |
| Power Consumption | 5watts |
| Power Input | DC5-32V |
| Dimension | 72*60*10mm |
| Weight | 33g |
| Dual Band Frequency | 1.4G: 1420Mhz-1530MHz |
| 600Mhz: 566Mhz-678Mhz | |

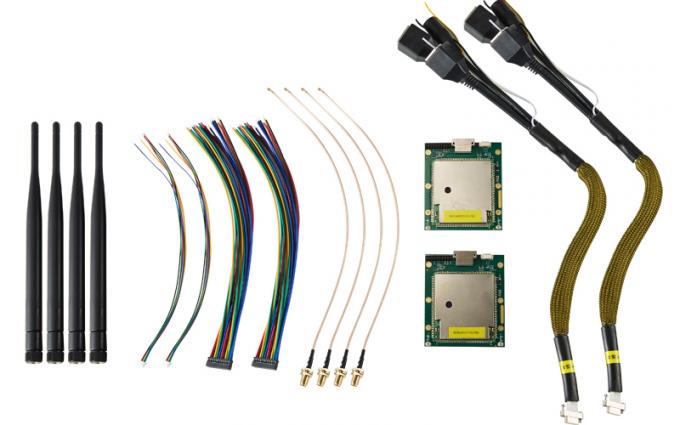

| RF | 2 x IPX |
| LAN Port | 3x Ethernet Port |
| Comuart | 2xCOMUART |
|
|
