| Brand Name: | IWAVE |
| Model Number: | FDM-6800 |
| MOQ: | 2 |
| Price: | Negotiable |
| Delivery Time: | 5-8work days |
| Payment Terms: | T/T |

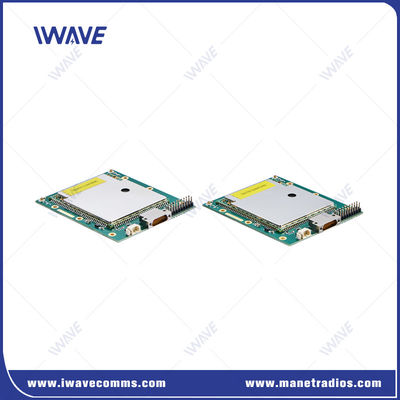

Uav swarm Transmission Module 10km air to ground link
Introduction
FDM-6800 comes with advanced IP star networking and high speed hopping frequency technology. It is a huge revenue opportunities for remote unmanned platforms. This technology is crucial in maintaining robust video and data communication capabilities. Its ability to counteract disruptions such as Radio Frequency (RF) jamming is a significant advantage.
This feature ensures the maintenance of legitimate channels and reduces the degradation of the received signal-to-interference noise ratio (SINR). FDM-6800 is particularly valuable in challenging environments to maintain the functionality of UAVs and ensure the long range of the telemetry and control link.
Application

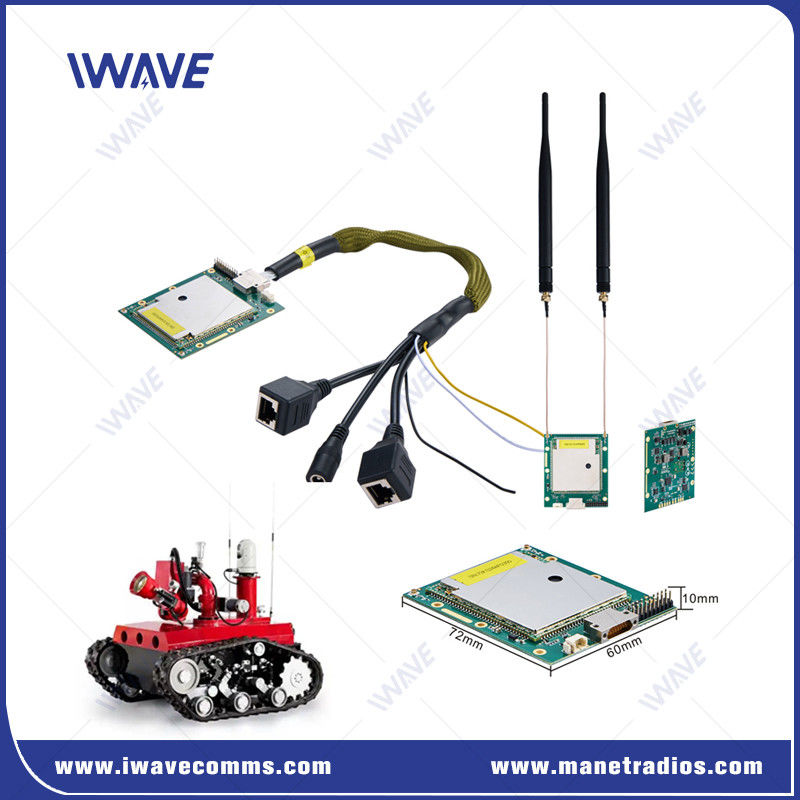

The Drone Data Link FDM-6800 has LAN interfaces that include RJ45x3 and TTL*2. It comes with a bandwidth of 1.4/2.5/5/10/20/40MHz, which means that it can transmit data at high speeds, enabling users to stream live 8k videos and images without any delays.
The product is powered by a DC5-32V supply, and its output power is 25dBm, making it a reliable source of data transmission. It can be used in a variety of scenarios, including in the military, for surveillance, in agriculture for crop monitoring, in search and rescue operations, and in the film industry for aerial photography.
Features
Up to 25dbm output power (2W, 10W on request)
Up 100 Mbps Data Throughput
IWAVE proprietary waveform: 64 node scalability
Single/Dual Band Frequency Options
I/O Interfaces: Ethernet, USB, RS232
Advanced Encryption: AES128, ZUC/SNOW3G
Specification
| Technology | Wireless based on TD-LTE Technology Standard |
| Encryption | ZUC/SNOW3G/AES(128) Optional Layer-2 |
| Data Rate | Up to 100Mbps(Uplink and Downlink) |
| Communication Range | Air to ground 20km NLOS Ground to ground 1-3km |
| Node | 64node |
| MIMO | 2x2 MIMO |
| RF Power | 23dBm±2 (2w, 5w or 10w on request) |
| Latency | End to end≤5ms-15ms |
| Modulation | Adaptive QPSK, 16QAM, 64QAM |
| Anti-Jamming | FHSS(Frequency Hop Spread Spectrum) |
| Bandwidth | 1.4Mhz/3Mhz/5Mhz/10MHz/20MHz/40Mhz |
| Power Consumption | 5watts |
| Power Input | DC5-32V |
| Dimension | 72*60*10mm |
| Weight | 33g |
| Dual Band Frequency | 1.4G: 1420Mhz-1530MHz |
| 600Mhz: 566Mhz-678Mhz | |
| RF | 2 x IPX |
| LAN Port | 3x Ethernet Port |
| Comuart | 2xCOMUART |
|
|
