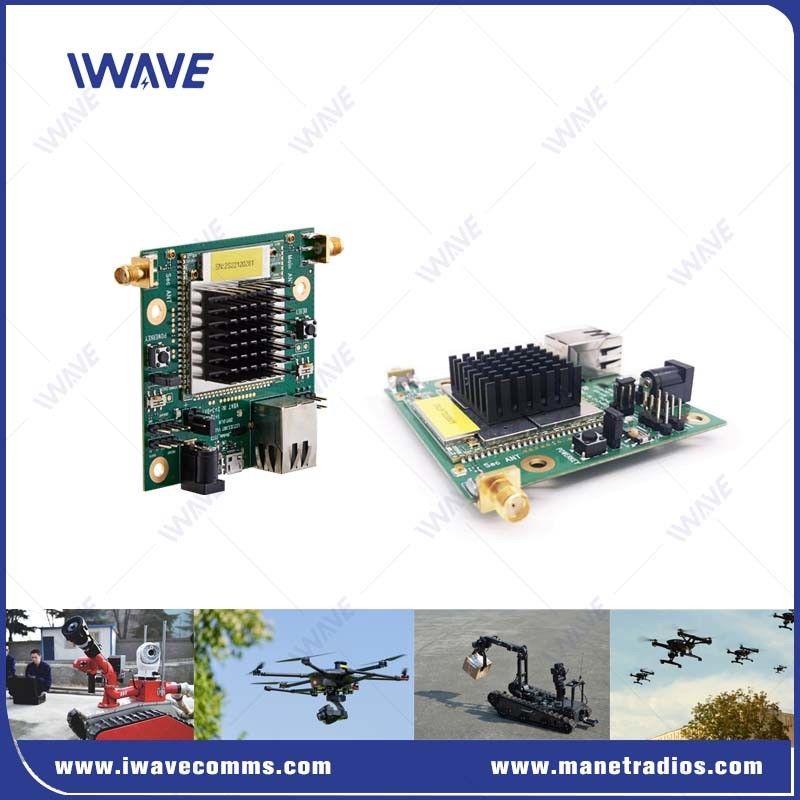

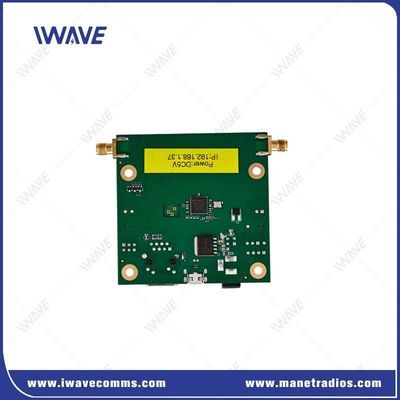

Robotics NLOS 3km Unmanned System Telemetry Data and HD Video IP MESH Oem Module
Introduction
The FD-6100 is a compact, tri-band OEM digital data link operating in the 800MHz, 1.4GHz, and 2.4GHz frequency bands. It is perfectly suited for surveillance and video broadcasting applications in UAVs (Unmanned Aerial Vehicles) and UGVs (Unmanned Ground Vehicles). IP Mesh radios offer a reliable and adaptable MANET (Mobile Ad-hoc Network) solution for even the most demanding environments. The FD-6100 ensures a strong and secure connection across all three frequency bands, employing FHSS (Frequency Hopping Spread Spectrum) technology and leveraging the high sensitivity of the TD-LTE technology standard to deliver robust RF performance. Its high-speed, long-range capabilities enable high-quality wireless video and telemetry communications.
Key Features
|
● Self-healing fluid mesh design optimized for mobile applications ● Data Rates: 30Mbps (combined Uplink and Downlink) ● Tri-band frequency operation (800MHz/1.4GHz/2.4GHz, selectable via software) ● OEM (bare board) format for seamless platform integration ● Long range Line-of-Sight (LOS) for UAVs: 10km (Air to Ground) ● Adjustable Total Output Power up to 25dBm ● Supports up to 32 nodes on a single frequency MESH network ● RF Power Adjustable Range: -40dBm to +25dBm ● Supports Mesh, Point-to-Multipoint, and Point-to-Point configurations ● Simultaneous IP and Serial Data transmission ● Operating Temperature range: -40°C to +80°C ● 128/256-bit AES Encryption for security |
|
Application
FD-6100 enables self-forming and self-healing mesh networks. Mesh networks improve robustness, extend range and simplify collaborative communication. It is ideal for size and weight critical UxV applications, offering the SWaP of a bare-board solution for platform and system integration.
●Ideal for use for wide area coverage & multi-hop, mobile applications such as robotics
●Tactical communications
●Unmanned land vehicles wireless video transmission
Specification
| GENERAL | ||
| TECHNOLOGY | MESH base on TD-LTE Wireless technology standard | |
| ENCRYPTION | ZUC/SNOW3G/AES(128) OptionalLayer-2 | |
| DATA RATE | 30Mbps(Uplink and Downlink) | |
| RANGE | 10km(Air to ground)500m-3km(NLOS Ground to ground) | |
| CAPACITY | 16nodes | |
| POWER | 23dBm±2 (2w or 10w on request) | |
| LATENCY | One Hop Transmission≤30ms | |
| MODULATION | QPSK, 16QAM, 64QAM | |
| ANTI-JAM | Automatically Cross-Band frequency hopping | |
| BANDWIDTH | 1.4Mhz/3Mhz/5Mhz/10MHz/20MHz | |
| POWER CONSUMPTION | 5Watts | |
| POWER INPUT | DC12V | |
| SENSITIVITY | ||
| 2.4GHZ | 20MHZ | -99dBm |
| 10MHZ | -103dBm | |
| 5MHZ | -104dBm | |
| 3MHZ | -106dBm | |
| 1.4GHZ | 20MHZ | -100dBm |
| 10MHZ | -103dBm | |
| 5MHZ | -104dBm | |
| 3MHZ | -106dBm | |
| 800MHZ | 20MHZ | -100dBm |
| 10MHZ | -103dBm | |
| 5MHZ | -104dBm | |
| 3MHZ | -106dBm | |
| FREQUENCY BAND | ||
| 2.4Ghz | 2401.5-2481.5 MHz | |
| 1.4Ghz | 1427.9-1447.9MHz | |
| 800Mhz | 806-826 MHz | |
| COMUART | ||
| Electrical Level | 2.85V voltage domain and compatible with 3V/3.3V level | |
| Control Data | TTL mode | |
| Baud rate | 115200bps | |
| Transmission Mode | Pass-through mode | |
| Priority level | Higher priority than the network portWhen the signal transmission is crowed, the control data will be transmitted in priority |
|
| Note:1. The data transmitting and receiving is broadcast in the network. After successful networking, each FD-6100 node can receive serial data. 2. If you want to distinguish between sending, receiving and control, you need to define the format yourself |
||
| MECHANICAL | ||
| Temperature | -40℃~+80℃ | |
| Weight | 50grams | |
| Dimension | 7.8*10.8*2cm | |
| Stability | MTBF≥10000hr | |
| INTERFACES | ||
| RF | 2 x SMA | |
| ETHERNET | 1xEthernet | |
| COMUART | 1x COMUART | |
| POWER | DC INPUT | |
| INDICATOR | Tri-COLOR LED | |
|
|
