| Brand Name: | IWAVE |
| Model Number: | Defensor-BM3 |
| MOQ: | 1set |
| Price: | Negotiable |
| Delivery Time: | 5-8work days |
| Payment Terms: | L/C,D/P,T/T |
Ad-Hoc Network Military Manpack Radio Repeater
Introdcution
Defensor-BM3 is a manpack base station, which integrated the funtions of base station and terminals for network coverage, data relay, clear audio and data sending and receiving in a miniature package.
It is special designed for urgent tactical operation with fast and freely moving in emergency events. The battery is removable type. It can be quickly replaced by a fullly charged batter
Key Features
Manpack Design for Soliders Moving Freely in Tactical Activities

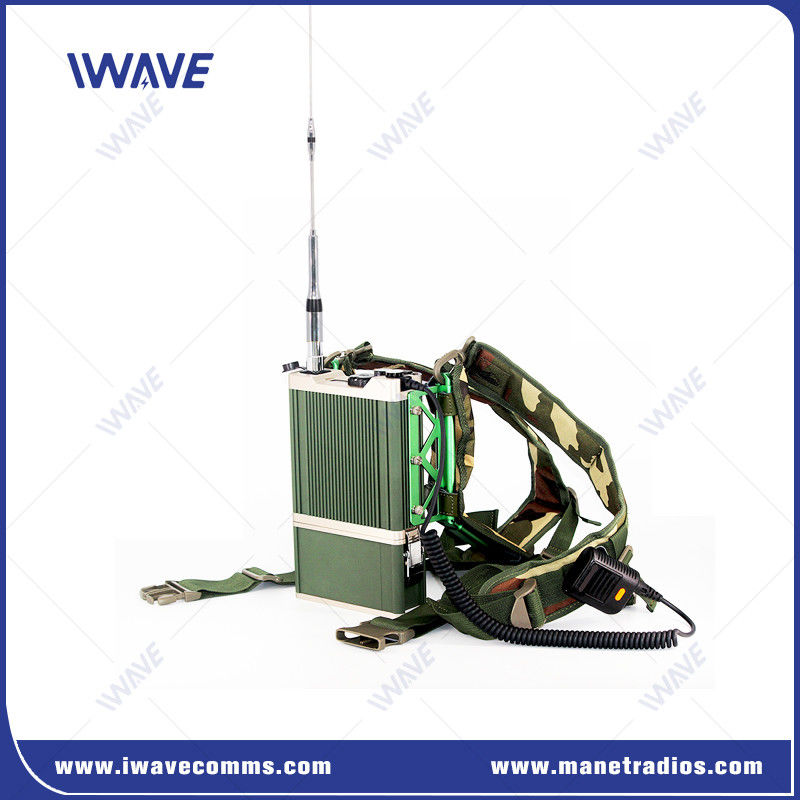

Defensor-BM3 lightweight ruggedize system: 3kg weight and special backpack provided for carrrying
Variety of Antenna for Option to Adapt to Various Environment
For manpack base station IFLY provides soft antenna, semi-soft antenna and ROD Antenna to deal with various complex environments.
Built-in Large Capacity Battery
Built-in 16Ah and 29Ah battery for option to meet different working time requirement.

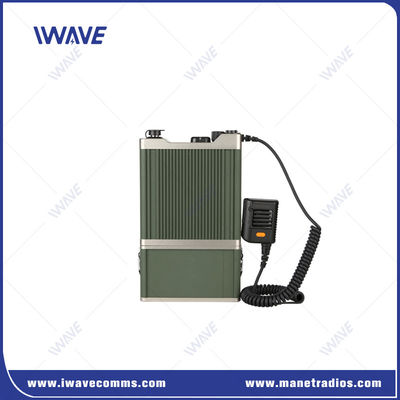

Equipped with hand microphone
The microphone connected with the base station allows the people who carry it communicate with others.
Highly Reliable Networking
If one Defensor-BM3 moves away from the network or malfunctions, voice will automatically route to another Defensor base station in order to guarantee link continuity.
Application
Without the need for external infrastructure like towers or base stations, Mesh Radio, or Push-to-Talk Mesh Radio, is the best choice that quickly creates a temporary voice communication (ad hoc) network for Military and Security Operations, Emergency Management and Rescue, Law Enforcement, Maritime Sector and Navigation, Mining Operations and Activities,etc.
Specifications
| Manpack MESH Radio Base Station(Defensor-BM3) | |||
| General | Transmitter | ||
| Frequency | VHF: 136-174MHz UHF1: 350-390MHz UHF2: 400-470MHz |
RF Power | 2/5/10/15/20/25W(adjustable by software) |
| Channel Capacity | 300 (10 Zone, each with a maximum of 30 channels) | 4FSK Digital Modulation | 12.5kHz Data Only: 7K60FXD 12.5kHz Data&Voice: 7K60FXE |
| Channel Interval | 12.5khz/25khz | Conducted/Radiated Emission | -36dBm<1GHz -30dBm>1GHz |
| Operating Voltage | 10.8V | Modulation Limiting | ±2.5kHz @ 12.5 kHz ±5.0kHz @ 25 kHz |
| Frequency Stability | ±1.5ppm | Adjacent Channel Power | 60dB @ 12.5 kHz 70dB @ 25 kHz |
| Antenna Impedance | 50Ω | Audio Response | +1~-3dB |
| Dimension(with battery) | 270*168*51.7mm(without antenna) | Audio Distortion | 5% |
| Weight | 2.8kg/6.173lb | Environment | |
| Battery | 9600mAh Li-ion battery (standard) | Operating Temperature | -20°C ~ +55°C |
| Battery Life with standard battery (5-5-90 Duty Cycle, High TX Power) | 28h(RT, max power) | Storage Temperature | -40°C ~ +85°C |
| Case Material | Aluminum Alloy | ||
| Receiver | GPS | ||
| Sensitivity | -120dBm/BER5% | TTFF(Time To First Fix)cold start | <1 minute |
| Selectivity | 60dB@12.5KHz 70dB@25KHz |
TTFF (Time To First Fix)hot start | <20s |
| Intermodulation TIA-603 ETSI |
70dB @ (digital) 65dB @ (digital) |
Horizontal Accuracy | <5metres |
| Spurious Response Rejection | 70dB(digital) | Positioning Support | GPS/BDS |
| Rated Audio Distortion | 5% | ||
| Audio Response | +1~-3dB | ||
| Conducted Spurious Emission | -57dBm | ||
|
|
