| Brand Name: | IWAVE |
| Model Number: | Defensor-TS1 |
| MOQ: | 1 |
| Price: | Negotiable |
| Delivery Time: | 5-8work days |
| Payment Terms: | L/C,T/T,D/P |

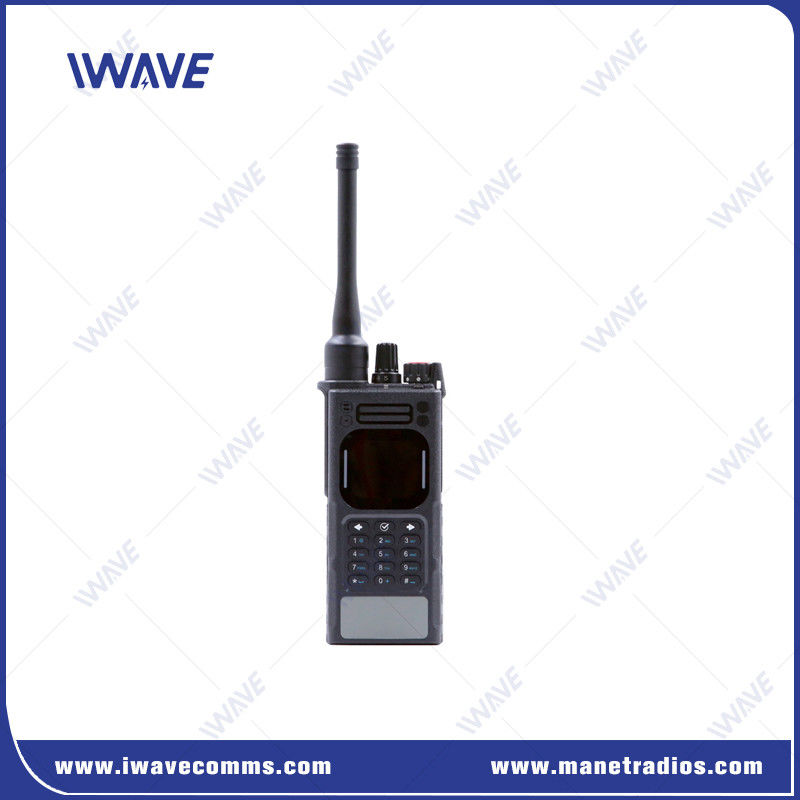

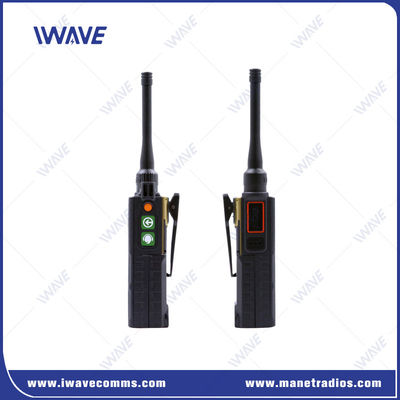

25Watts Handset MANET Radio Base Station
Introduction
TS1 is IWAVE new and uniquely designed handheld ad-hoc radio repeater with light weight, small size and ad-hoc technology. It supports 2/4/8/15/25Watts adjustable. The TS1 uses wireless interconnect technology that provides narrowband self-grouping multi-hop links to achieve a wide area of mesh coverage with digital voice and high security. IP66 high reliability for flexible self-organizing network communications in mountainous areas, forest areas, tunnels, indoors and basements of urban buildings.
Ad-Hoc Repeater & Radio
●Self-organizing, decentralized and multi-hop network formed by many nodes with transceiver capabilities that establish linkages autonomously and wirelessly;
●The TS1 node number is not limited, users can use as many TS1 as they need.
●Dynamic network, freely join or leave on the move; network topology changes
accordingly
●2 hops 2 channels, 4 hop 1 channel via single carrier(12.5kHz) (1Hop=1time relay; every channel supports individual and group call, all call, priority interrupt)
●2H3C,3H2C,6H1C via single carrier(25kHz)
●Time delay less than 30ms in single hop
Application
Fire Fighter Radio Communication in Buildings and Underground
Emergency event response
Rescue and disaster response
Public Safety Management
VIP Security
Disaster Relief
Search and rescue in forests & jungle
Transportation
Specifications
| Handheld MESH Radio Base Station(Defensor-TS1) | |||
| General | Transmitter | ||
| Frequency | VHF: 136-174MHz UHF1: 350-390MHz UHF2: 400-470MHz |
RF Power | 2/4/8/15/25(adjustable by software) |
| Channel Capacity | 300 (10 Zone, each with a maximum of 30 channels) | 4FSK Digital Modulation | 12.5kHz Data Only: 7K60FXD 12.5kHz Data&Voice: 7K60FXE |
| Channel Interval | 12.5khz/25khz | Conducted/Radiated Emission | -36dBm<1GHz -30dBm>1GHz |
| Operating Voltage | 11.8V | Modulation Limiting | ±2.5kHz @ 12.5 kHz ±5.0kHz @ 25 kHz |
| Frequency Stability | ±1.5ppm | Adjacent Channel Power | 60dB @ 12.5 kHz 70dB @ 25 kHz |
| Antenna Impedance | 50Ω | Audio Response | +1~-3dB |
| Dimension | 144*60*40mm(without antenna) | Audio Distortion | 5% |
| Weight | 560g | Environment | |
| Battery | 3200mAh Li-ion battery (standard) | Operating Temperature | -20°C ~ +55°C |
| Battery Life with standard battery | 31.3hours(120hours with IWAVE power bank) | Storage Temperature | -40°C ~ +85°C |
| Protection Grade | IP67 | ||
| Receiver | GPS | ||
| Sensitivity | -120dBm/BER5% | TTFF(Time To First Fix)cold start | <1 minute |
| Selectivity | 60dB@12.5KHz 70dB@25KHz |
TTFF (Time To First Fix)hot start | <20s |
| Intermodulation TIA-603 ETSI |
70dB @ (digital) 65dB @ (digital) |
Horizontal Accuracy | <5metres |
| Spurious Response Rejection | 70dB(digital) | Positioning Support | GPS/BDS |
| Rated Audio Distortion | 5% | ||
| Audio Response | +1~-3dB | ||
| Conducted Spurious Emission | -57dBm | ||
|
|
