| Brand Name: | IWAVE |
| Model Number: | Defensor-BM3 |
| MOQ: | 1set |
| Price: | Negotiable |
| Delivery Time: | 5-8work days |
| Payment Terms: | L/C,D/P,T/T |

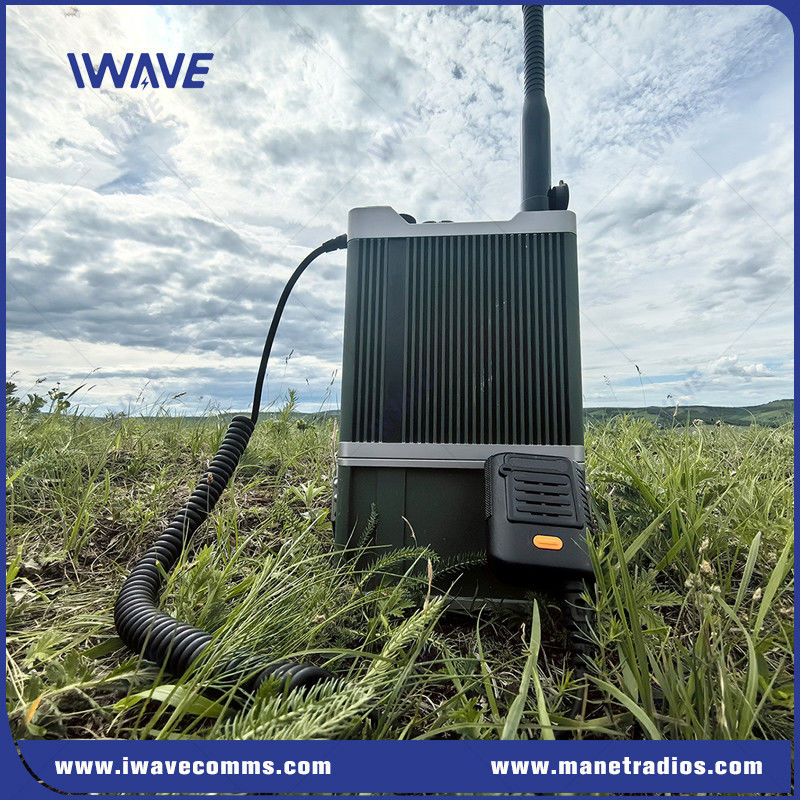

Multi-hop Narrowband Mesh Manpack Radio Base Station
Introdcution

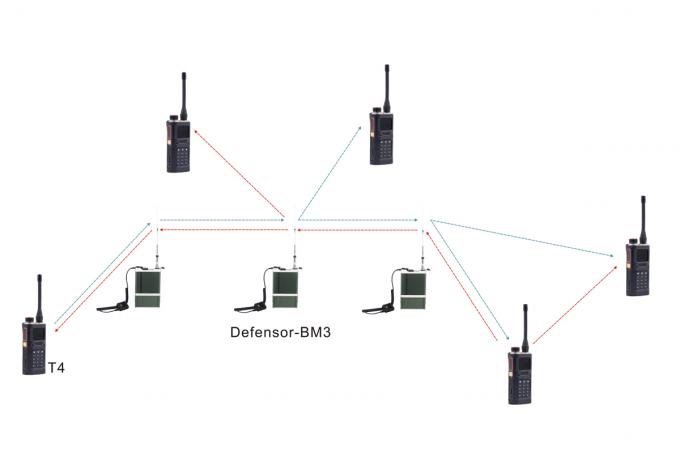

Defensor-BM3 uses ad-hoc technology that provides narrowband self-grouping multi-hop links to achieve a wide area of mesh coverage with digital voice and high security.
The BM3 narrowband MESH radio comes with base station and radio terminal function and rapidly form temporary communication networks in emergency response and challenging environment.
BM3 is designed as a portable base station/radio for individual-carried tactical networking. It utilizes IWAVE’s independently developed self-routing and self-organizing technology to achieve wireless automatic networking without center.
Key Features
●Long transmission distance, Strong anti-jamming ability,Strong NLOS ability
●Adaptability to mobile environment
●2/5/10/15/20/25W RF power adjustable
●Support rapid deployment, network topology dynamic change,
●Self-organization without center networking and multi-hop forwarding
●Extremely high reception sensitivityup to -120dBm
●6 time slot to offer multiple voice communication channels for group call/single call
●VHF/UHF Band frequency
●Single frequency 3-channel repeater
●6 hops 1 channel ad hoc network
●3 hops 2 channels ad hoc network
●Software dedicated to writing frequency
●Long battery life: 28hours continuous working
Application
During major incidents, cellular networks can become overloaded, and nearby cell towers may not be operational. Even more complex situations arise when teams have to operate in underground environments, mountainous, dense forest or remote coastal areas where there is no coverage from both cellular networks and DMR/LMR radios. Keeping each team members connected becomes a crucial obstacle to overcome.
Specifications
| Manpack MESH Radio Base Station(Defensor-BM3) | |||
| General | Transmitter | ||
| Frequency | VHF: 136-174MHz UHF1: 350-390MHz UHF2: 400-470MHz |
RF Power | 2/5/10/15/20/25W(adjustable by software) |
| Channel Capacity | 300 (10 Zone, each with a maximum of 30 channels) | 4FSK Digital Modulation | 12.5kHz Data Only: 7K60FXD 12.5kHz Data&Voice: 7K60FXE |
| Channel Interval | 12.5khz/25khz | Conducted/Radiated Emission | -36dBm<1GHz -30dBm>1GHz |
| Operating Voltage | 10.8V | Modulation Limiting | ±2.5kHz @ 12.5 kHz ±5.0kHz @ 25 kHz |
| Frequency Stability | ±1.5ppm | Adjacent Channel Power | 60dB @ 12.5 kHz 70dB @ 25 kHz |
| Antenna Impedance | 50Ω | Audio Response | +1~-3dB |
| Dimension(with battery) | 270*168*51.7mm(without antenna) | Audio Distortion | 5% |
| Weight | 2.8kg/6.173lb | Environment | |
| Battery | 9600mAh Li-ion battery (standard) | Operating Temperature | -20°C ~ +55°C |
| Battery Life with standard battery (5-5-90 Duty Cycle, High TX Power) | 28h(RT, max power) | Storage Temperature | -40°C ~ +85°C |
| Case Material | Aluminum Alloy | ||
| Receiver | GPS | ||
| Sensitivity | -120dBm/BER5% | TTFF(Time To First Fix)cold start | <1 minute |
| Selectivity | 60dB@12.5KHz 70dB@25KHz |
TTFF (Time To First Fix)hot start | <20s |
| Intermodulation TIA-603 ETSI |
70dB @ (digital) 65dB @ (digital) |
Horizontal Accuracy | <5metres |
| Spurious Response Rejection | 70dB(digital) | Positioning Support | GPS/BDS |
| Rated Audio Distortion | 5% | ||
| Audio Response | +1~-3dB | ||
| Conducted Spurious Emission | -57dBm | ||
|
|
| Brand Name: | IWAVE |
| Model Number: | Defensor-BM3 |
| MOQ: | 1set |
| Price: | Negotiable |
| Packaging Details: | Standard Carton Box |
| Payment Terms: | L/C,D/P,T/T |

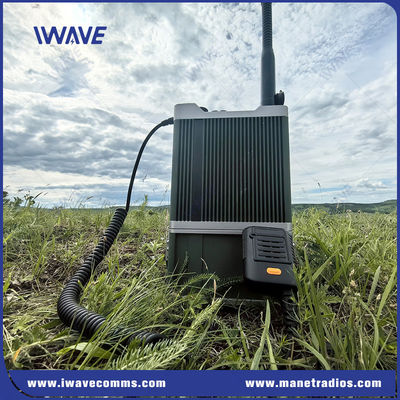

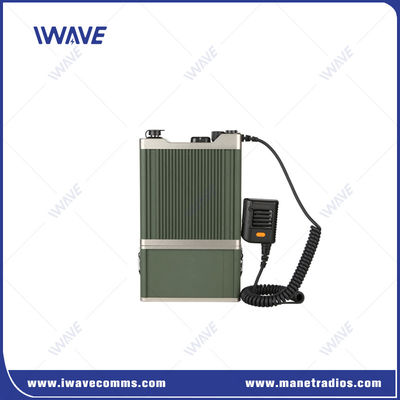

Multi-hop Narrowband Mesh Manpack Radio Base Station
