| Brand Name: | IWAVE |
| Model Number: | Defensor-TS1 |
| MOQ: | 1 |
| Price: | Negotiable |
| Delivery Time: | 5-8work days |
| Payment Terms: | L/C,T/T,D/P |
Handset 8km Multiple Hops MESH Radio Base Station
Introduction

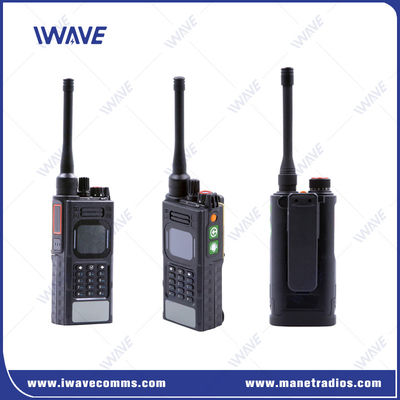

TS1 is the world's first true Handheld MESH Radio Base Station with 560g weight and 1.7inch LCD screen.
Multiple Mesh radio base station can directly connect with each other, creating a large and temporary (ad hoc) network without external infrastructure like cell towers or base stations.
Users press the Push-to-Talk button, then voice or data will be sent through the mesh network using the most efficient available route. Each TS1 work as base station, repeater and manet terminal radio sending and repeating voice/data from one device to another until it reaches the destination.
Features
Long Range Communication
TS1 is developed and designed based on ad-hoc network supports 6hops.

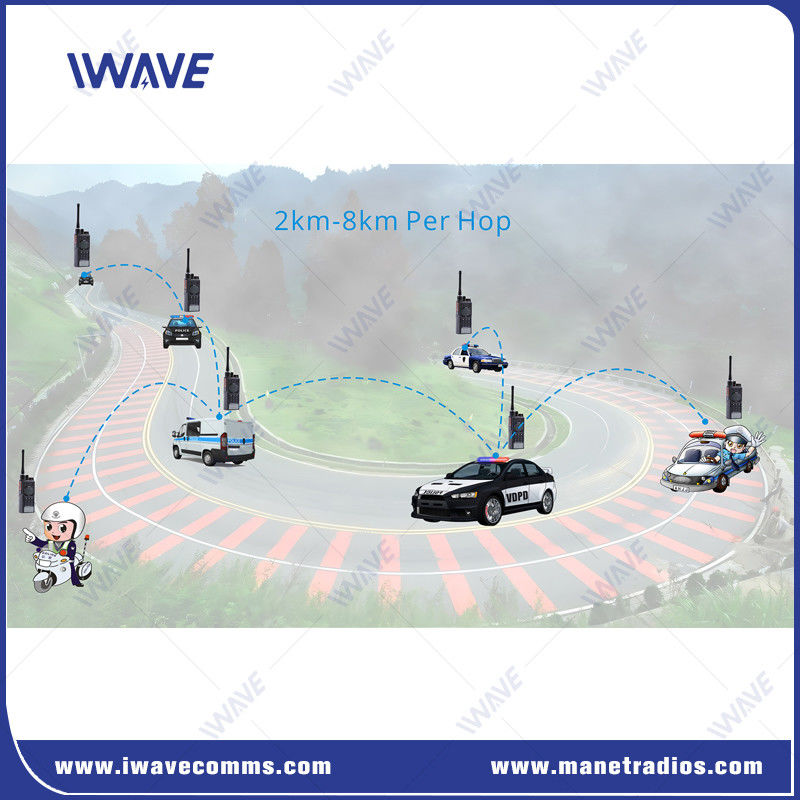

Several people hold TS1 manet radios to build a multi hop communication system and each hop can reach 2-8km.
One unit TS1 was put on 1F, the whole building from -2F to 80F can be covered(except the elevator cabin).
Cross Platform Connectivity
IWAVE provide the whole manet radios solution including on-site command and dispatching center, solar powered base station, radio terminals, airborne MANET base station and manpack base stations to meet different application scenarios.
TS1 can smoothly connect with all present IWAVE's MANET radios, command center and base stations which allows the end users on land to automatically mesh with manned and unmanned vehicles, UAVs, maritime assets and infrastructure nodes to create a robust connectivity.
Application
For tactical response teams, smooth and reliable communication is essential.
When major incidents happened, teams have to operate in challenging environments such as mountainous, forest,underground parking lots, tunnels, indoors and basements of urban buildings where DMR/LMR radios or cellular coverage are absent, users take TS1 can quickly power on and automatically communicate with each other for a ultra longer range than the traditional analogue or digital radios.
Specifications
| Handheld MESH Radio Base Station(Defensor-TS1) | |||
| General | Transmitter | ||
| Frequency | VHF: 136-174MHz UHF1: 350-390MHz UHF2: 400-470MHz |
RF Power | 2/4/8/15/25(adjustable by software) |
| Channel Capacity | 300 (10 Zone, each with a maximum of 30 channels) | 4FSK Digital Modulation | 12.5kHz Data Only: 7K60FXD 12.5kHz Data&Voice: 7K60FXE |
| Channel Interval | 12.5khz/25khz | Conducted/Radiated Emission | -36dBm<1GHz -30dBm>1GHz |
| Operating Voltage | 11.8V | Modulation Limiting | ±2.5kHz @ 12.5 kHz ±5.0kHz @ 25 kHz |
| Frequency Stability | ±1.5ppm | Adjacent Channel Power | 60dB @ 12.5 kHz 70dB @ 25 kHz |
| Antenna Impedance | 50Ω | Audio Response | +1~-3dB |
| Dimension | 144*60*40mm(without antenna) | Audio Distortion | 5% |
| Weight | 560g | Environment | |
| Battery | 3200mAh Li-ion battery (standard) | Operating Temperature | -20°C ~ +55°C |
| Battery Life with standard battery | 31.3hours(120hours with IWAVE power bank) | Storage Temperature | -40°C ~ +85°C |
| Protection Grade | IP67 | ||
| Receiver | GPS | ||
| Sensitivity | -120dBm/BER5% | TTFF(Time To First Fix)cold start | <1 minute |
| Selectivity | 60dB@12.5KHz 70dB@25KHz |
TTFF (Time To First Fix)hot start | <20s |
| Intermodulation TIA-603 ETSI |
70dB @ (digital) 65dB @ (digital) |
Horizontal Accuracy | <5metres |
| Spurious Response Rejection | 70dB(digital) | Positioning Support | GPS/BDS |
| Rated Audio Distortion | 5% | ||
| Audio Response | +1~-3dB | ||
| Conducted Spurious Emission | -57dBm | ||
|
|
