| Brand Name: | IWAVE |
| Model Number: | Patron-P10 |
| MOQ: | 1unit |
| Price: | Negotiable |
| Delivery Time: | 10-20work days |
| Payment Terms: | L/C,D/P,T/T |

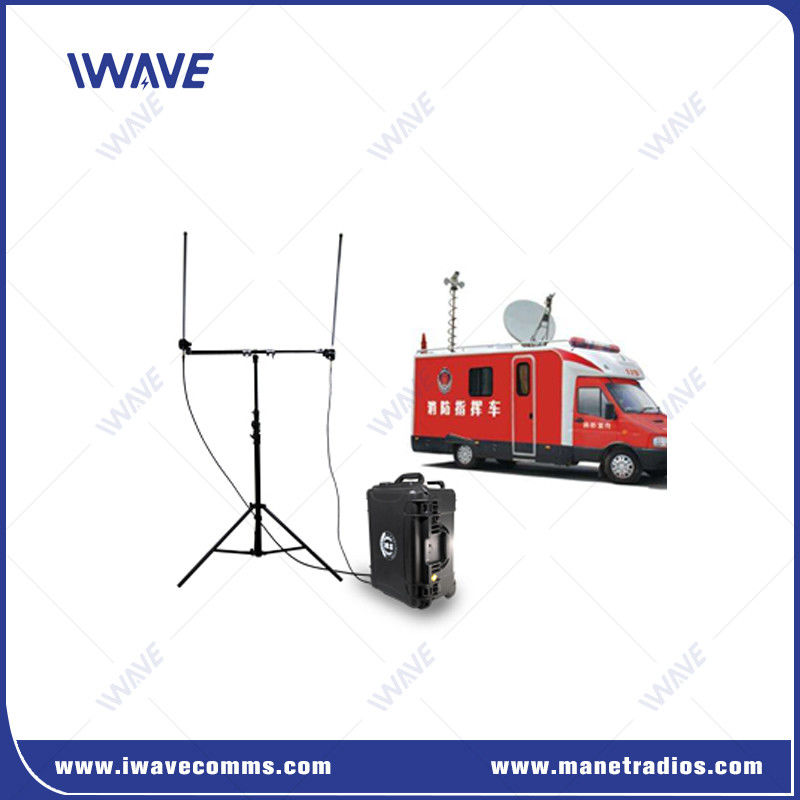

4G LTE Portable Emergency Command System
Introduction
The Patron-P10 is a portable emergency command system designed to enable fast deployment and seamless communication during emergencies. By integrating the baseband processing unit (BBU), Remote Radio Unit (RRU), Evolved Packet Core (EPC), and multimedia dispatch functionalities, it allows first responders to quickly establish real-time communication with the command center through HD video and clear voice, anytime and anywhere.
Key Features of 4G LTE Portable Emergency Command System
|
Rapid Deployment: The system's easy assembly process significantly reduces network setup time, enabling swift response in critical situations. |
 |
Common Use Cases:
Forest Fire Protection: Enables firefighting teams to communicate effectively with real-time video and voice, improving coordination.
Earthquake Disaster Rescue: Provides emergency teams with fast and reliable communication in affected areas to improve rescue efforts.
Production Safety: Facilitates communication in industrial environments, supporting real-time monitoring and quick responses to safety concerns.
Government Affairs: Ensures connectivity in remote or underserved areas, supporting administrative and emergency functions.
Specifications
| Model | Patron-P10 |
| Frequency | 400Mhz: 400Mhz-430Mhz 600Mhz: 566Mhz-626Mhz, 626Mhz-678Mhz 1.4Ghz: 1477Mhz-1467Mhz 1.8Ghz: 1785Mhz-1805Mhz Bands from 400MHz to 6GHz available |
| Channel Bandwidth | 5Mhz/10Mhz/20Mhz |
| Technology | TD-LTE |
| Time Slot Ratio | Support 1:3, 2:2, 3:1 |
| Transmitted Power | ≤30W |
| Number of Paths | 2 paths, 2T2R |
| UL/DL Date Rate | 50/100Mbps |
| Transmission Port | IP Ethernet Port |
| Clock Synchronization Mode | GPS |
| System Throughput | 1Gbps |
| Time Delay | <300ms |
| Max. User Number | 1000 |
| Max. Online Call Number | 200 |
| Power Supply | Internal Battery: 4-6 Hours |
| Operating Temperature | -40°C~+60°C |
| Storage Temperature | -50°C~+70°C |
| Air Pressure Range | 70~106 kPa |
| Dust and Water Resistance | IP65 |
| Weight | <25kg |
| Dimension | 580*440*285mm |
|
|
| Brand Name: | IWAVE |
| Model Number: | Patron-P10 |
| MOQ: | 1unit |
| Price: | Negotiable |
| Packaging Details: | Standard Carton Box |
| Payment Terms: | L/C,D/P,T/T |
4G LTE Portable Emergency Command System
Introduction
The Patron-P10 is a portable emergency command system designed to enable fast deployment and seamless communication during emergencies. By integrating the baseband processing unit (BBU), Remote Radio Unit (RRU), Evolved Packet Core (EPC), and multimedia dispatch functionalities, it allows first responders to quickly establish real-time communication with the command center through HD video and clear voice, anytime and anywhere.
Key Features of 4G LTE Portable Emergency Command System
|
Rapid Deployment: The system's easy assembly process significantly reduces network setup time, enabling swift response in critical situations. |
|
Common Use Cases:
Forest Fire Protection: Enables firefighting teams to communicate effectively with real-time video and voice, improving coordination.
Earthquake Disaster Rescue: Provides emergency teams with fast and reliable communication in affected areas to improve rescue efforts.
Production Safety: Facilitates communication in industrial environments, supporting real-time monitoring and quick responses to safety concerns.
Government Affairs: Ensures connectivity in remote or underserved areas, supporting administrative and emergency functions.
Specifications
| Model | Patron-P10 |
| Frequency | 400Mhz: 400Mhz-430Mhz 600Mhz: 566Mhz-626Mhz, 626Mhz-678Mhz 1.4Ghz: 1477Mhz-1467Mhz 1.8Ghz: 1785Mhz-1805Mhz Bands from 400MHz to 6GHz available |
| Channel Bandwidth | 5Mhz/10Mhz/20Mhz |
| Technology | TD-LTE |
| Time Slot Ratio | Support 1:3, 2:2, 3:1 |
| Transmitted Power | ≤30W |
| Number of Paths | 2 paths, 2T2R |
| UL/DL Date Rate | 50/100Mbps |
| Transmission Port | IP Ethernet Port |
| Clock Synchronization Mode | GPS |
| System Throughput | 1Gbps |
| Time Delay | <300ms |
| Max. User Number | 1000 |
| Max. Online Call Number | 200 |
| Power Supply | Internal Battery: 4-6 Hours |
| Operating Temperature | -40°C~+60°C |
| Storage Temperature | -50°C~+70°C |
| Air Pressure Range | 70~106 kPa |
| Dust and Water Resistance | IP65 |
| Weight | <25kg |
| Dimension | 580*440*285mm |
