| Brand Name: | IWAVE |
| Model Number: | Patron-G20 |
| MOQ: | 1unit |
| Price: | Negotiable |
| Delivery Time: | 5-8work days |
| Payment Terms: | L/C, D/P, T/T |

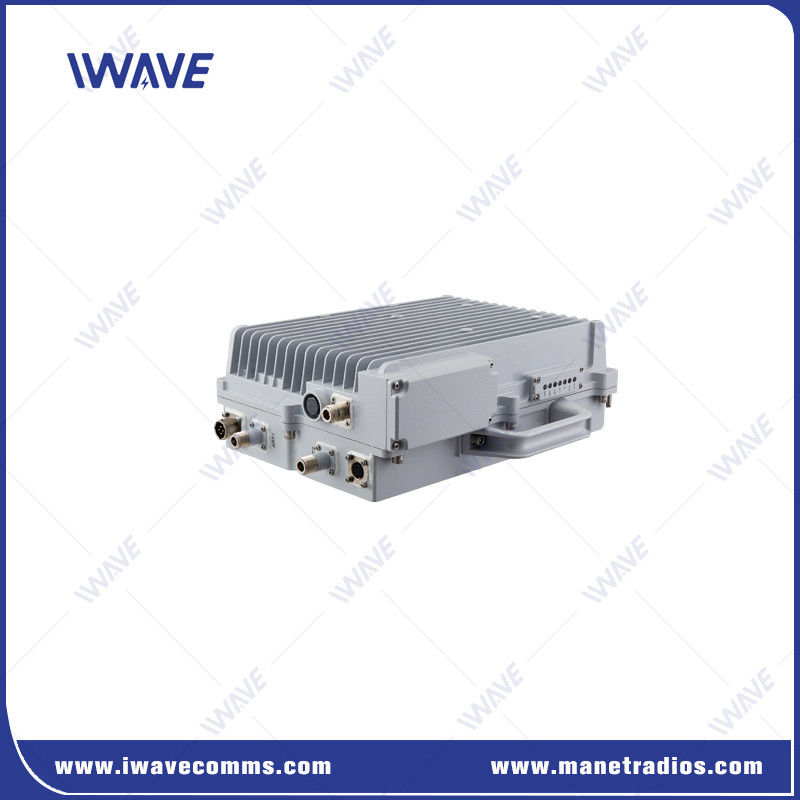

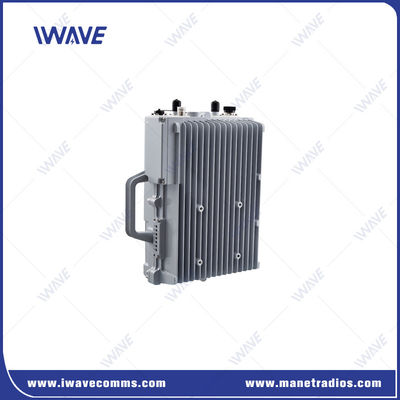

4G LTE Integration Base Station for Emergency Disaster Response Communication
Descryption
4G LTE Integration base station is a highly integrated wireless communication system, including core network processing system unit, baseband processing system unit, wireless radio frequency transmission unit, and multimedia dispatching command server unit, forming a complete TD-LTE wireless private network and multimedia scheduling business.
Patron-G20 operates in TDD mode and provide users with multimedia trunking, video and voice, and video surveillance efficiently and cheaply.
It is always deployed in 10 minutes for ensuring 24hours 4G LTE network during emergency event and cover more than radius 20km area. The solution significantly improves dispatch efficiency and quick response capability at lower cost.
Features
|
1. All-in-one compact design Highly integrates baseband processing unit (BBU), Remote Radio Unit (RRU), Evolved Packet Core (EPC), multimedia dispatch server, and antennas. 2. High Performance and Multifunctional Provides LTE-based professional trunking voice, multimedia dispatch, real-time video transferring, GIS location, audio/video full duplex conversation etc., 3. Flexibility Frequency Band optional: 400MHZ/600MHZ/1.4GHZ/1.8GHZ 4. Fast Deployment: Within 10mins Ideal for fast deploy a critical communication system in the field where the public communications network is down or events and emergency situations experience weak signals. 5.Transmit Power: 2*10watts 6. Wide Coverage: radius 20km (suburban environment) |
 |
Benefits
|
1.AISG/MON Port 2.Antenna interface 1 3.Grounding bolts 4.Antenna interface2 5.Optical fiber card slot waterproof glue stick 1 6.Optical fiber card slot waterproof glue stick 2 7.Power cord card slot waterproof glue stick 8.Hoisting bracket 9.Upper shell 10.Guiding lights 11.Heat dissipation strip 12.upper shell 13.Handle 14.Bolt for mounting the support. 15.Operation and maintenance of window handles 16.Optical fiber interface 17.Operation and maintenance of window cover 18.Power input interface 19.Optical fiber crimping clamp 20.Power cord crimping clamp. |
 |
Application
The Patron-G20 integrated base station can be mounted on fixed objects such as base station towers. Through a certain height, it can effectively expand the coverage range between self-organized networks and solve problems such as long-distance signal transmission. The forest fire prevention emergency linkage command system uses the base station to realize the coverage and monitoring of the forest fire prevention network. Once an abnormal situation occurs in the forest, it can be remotely commanded and dispatched to the scene immediately.
Specifications
|
GENERAL |
|
| Model | 4G LTE base station-G20 |
| Network Technology | TD-LTE |
| Number of carriers | Single carrier,1*20MHz |
| Channel bandwidth | 20MHz/10MHz/5MHz |
| User capacity | 128 users |
| Number of channels | 2T2R, support MIMO |
| RF Power | 2*10W/channel |
| Receiving sensitivity | ≮-103dBm |
| Coverage range | Radius 20km |
| Throughout | UL:≥30Mbps,DL:≥80Mbps |
| Power Consumption | ≯280W |
| weight | ≯10kg |
| volume | ≯10L |
| levels of protection | IP65 |
| Temperature (operating) | -40°C ~ +55°C |
| Humidity(operating) | 5% ~ 95% RH(No condensation) |
| Air pressure range | 70kPa ~ 106kPa |
| Installation method | Support fixed installation and on-board installation |
| Heat dissipation method | Natural heat dissipation |
|
FREQUENCY(Optional) |
|
| 400Mhz | 400Mhz-430Mhz |
| 600Mhz | 566Mhz-626Mhz, 606Mhz-678Mhz |
| 1.4Ghz | 1447Mhz-1467Mhz |
| 1.8Ghz | 1785Mhz-1805Mhz |
|
|
