| Brand Name: | IWAVE |
| Model Number: | Patron-P10 |
| MOQ: | 1unit |
| Price: | Negotiable |
| Delivery Time: | 10-20work days |
| Payment Terms: | L/C,D/P,T/T |
4G TD-LTE Base Station Portable Emergency Communications Network During Disaster
Introduction

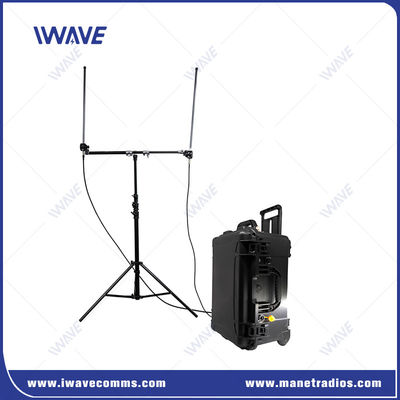

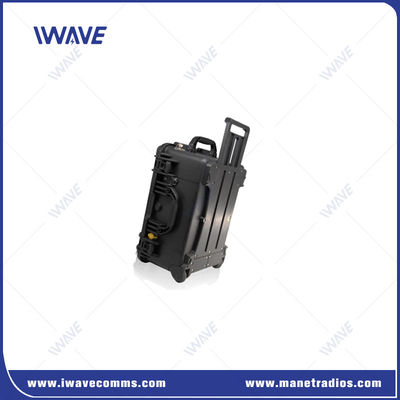

Patron-P10 is a Portable Emergency Command System which highly integrates baseband processing unit (BBU), Remote Radio Unit (RRU), Evolved Packet Core (EPC) and multimedia dispatch. It significantly reduces network deployment time with easy assembly. This system ensures that first responders communicate quickly, anytime, anywhere with commander center by real time HD video and clear voice.
It is widely adopted in emergency treatment sectors such as forest fire protection, fire emergency, earthquake disaster rescue, production safety, government affairs network blind spots coverage. The system supports various backhaul modes such as satellite, Mesh, optical fiber, microwave, and public network etc.
Features
|
High-level integration and wide, flexible coverage
Fast deployment for first responders and wide environmental adaptability
|
 |
Integrated With the Existed Narrowband System
Broadband-narrowband connectivity
Private-public connectivity
Supports Trunking handset, manpack device, UAV, portable dome camera, AI glasses, etc.
Easy to Operate
With display, modify transmitted power and working frequency through UI configuration interface.
Support PAD dispatch console.
Highly adaptive
IP65 water and dust proof, high shock resistance performance, - 40°C~+60 °C operating temperature.
Application

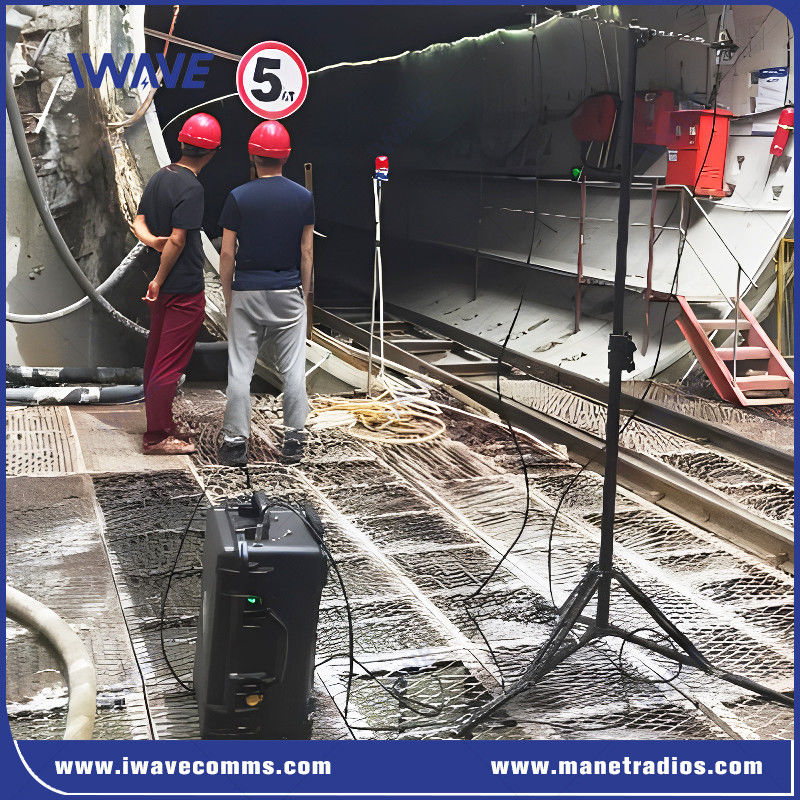

Prevent lost time due to broken communications in emergencies or weak signals during event, Patron-P10 portable emergency command system can be deployed in 15minutes for immediate communication between first- responders and decision-makers.
It’s widely applied in many scenarios to support emergency wireless communication such as natural disaster relief, Emergencies (Anti-terrorism),VIP Security, Oilfield and Mines and so on.
Specifications
| Model | Patron-P10 |
| Frequency | 400Mhz: 400Mhz-430Mhz 600Mhz: 566Mhz-626Mhz, 626Mhz-678Mhz 1.4Ghz: 1477Mhz-1467Mhz 1.8Ghz: 1785Mhz-1805Mhz Bands from 400MHz to 6GHz available |
| Channel Bandwidth | 5Mhz/10Mhz/20Mhz |
| Technology | TD-LTE |
| Time Slot Ratio | Support 1:3, 2:2, 3:1 |
| Transmitted Power | ≤30W |
| Number of Paths | 2 paths, 2T2R |
| UL/DL Date Rate | 50/100Mbps |
| Transmission Port | IP Ethernet Port |
| Clock Synchronization Mode | GPS |
| System Throughput | 1Gbps |
| Time Delay | <300ms |
| Max. User Number | 1000 |
| Max. Online Call Number | 200 |
| Power Supply | Internal Battery: 4-6 Hours |
| Operating Temperature | -40°C~+60°C |
| Storage Temperature | -50°C~+70°C |
| Air Pressure Range | 70~106 kPa |
| Dust and Water Resistance | IP65 |
| Weight | <25kg |
| Dimension | 580*440*285mm |
|
|
