| Brand Name: | IWAVE |
| Model Number: | Defensor-TS1 |
| MOQ: | 1 |
| Price: | Negotiable |
| Delivery Time: | 5-8work days |
| Payment Terms: | L/C,T/T,D/P |
Portable Multiple Hops Tactical MANET Radios Base Station
Introduction

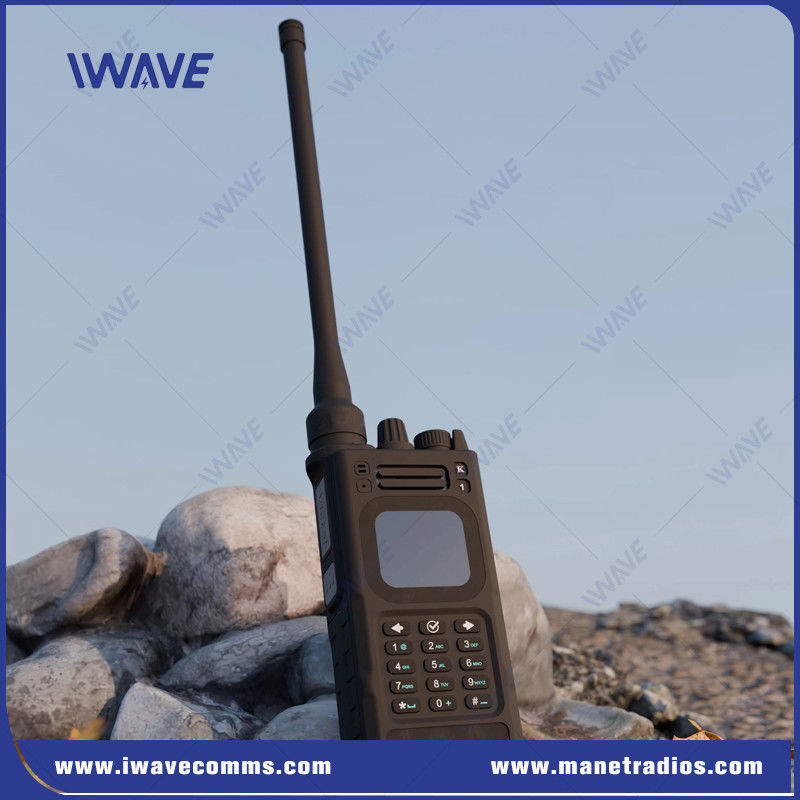

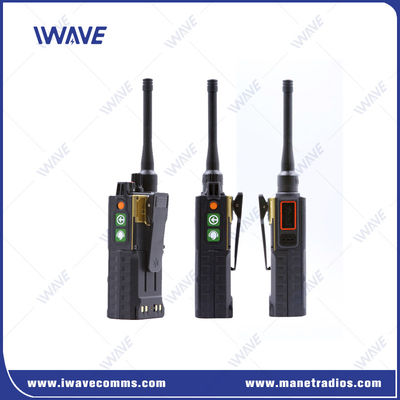

TS1 handheld manet radio station is compact and it can be held in hand or placed on the shoulder, back or waist by a leather carrying case.
TS1 is equipped with a detachable lithium battery for 31hours battery life and if work with its power bank, the battery life can up to be 120hours. The TS1 uses wireless interconnect technology that provides narrowband self-grouping multi-hop links to achieve a wide area of mesh coverage with digital voice and high security.

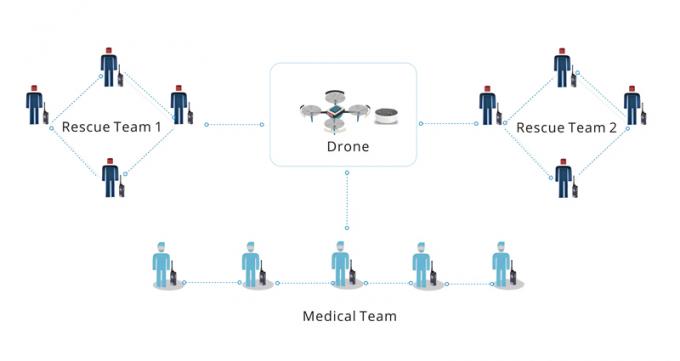

How Does Mesh Radio Work?
●Multiple TS1 wireless communicate with each other creating a temporary and multi hop wireless communication network.
● Each TS1 works as base station, repeater and radio terminal transmitting and repeating voice/data from one device to another until it reaches the destination.
● Users press the Push-to-Talk button, then voice or data will be sent through the ad-hoc network using the most efficient available route.
● The mesh network is highly reliable because if one path is blocked or a device is out of range or offline, voice/data can be routed through an alternative path.
Features
Chain Network Mode/Mesh Network Mode
AD hoc switch in network mode
Digital noise reduction
Full band VHF/UHF
Group call Transmitting power 2-25watts adjustment
Battery reminder low
Single call
Software dedicated to writing frequency
Write and read
Specifications
| Handheld MESH Radio Base Station(Defensor-TS1) | |||
| General | Transmitter | ||
| Frequency | VHF: 136-174MHz UHF1: 350-390MHz UHF2: 400-470MHz |
RF Power | 2/4/8/15/25(adjustable by software) |
| Channel Capacity | 300 (10 Zone, each with a maximum of 30 channels) | 4FSK Digital Modulation | 12.5kHz Data Only: 7K60FXD 12.5kHz Data&Voice: 7K60FXE |
| Channel Interval | 12.5khz/25khz | Conducted/Radiated Emission | -36dBm<1GHz -30dBm>1GHz |
| Operating Voltage | 11.8V | Modulation Limiting | ±2.5kHz @ 12.5 kHz ±5.0kHz @ 25 kHz |
| Frequency Stability | ±1.5ppm | Adjacent Channel Power | 60dB @ 12.5 kHz 70dB @ 25 kHz |
| Antenna Impedance | 50Ω | Audio Response | +1~-3dB |
| Dimension | 144*60*40mm(without antenna) | Audio Distortion | 5% |
| Weight | 560g | Environment | |
| Battery | 3200mAh Li-ion battery (standard) | Operating Temperature | -20°C ~ +55°C |
| Battery Life with standard battery | 31.3hours(120hours with IWAVE power bank) | Storage Temperature | -40°C ~ +85°C |
| Protection Grade | IP67 | ||
| Receiver | GPS | ||
| Sensitivity | -120dBm/BER5% | TTFF(Time To First Fix)cold start | <1 minute |
| Selectivity | 60dB@12.5KHz 70dB@25KHz |
TTFF (Time To First Fix)hot start | <20s |
| Intermodulation TIA-603 ETSI |
70dB @ (digital) 65dB @ (digital) |
Horizontal Accuracy | <5metres |
| Spurious Response Rejection | 70dB(digital) | Positioning Support | GPS/BDS |
| Rated Audio Distortion | 5% | ||
| Audio Response | +1~-3dB | ||
| Conducted Spurious Emission | -57dBm | ||
|
|
