| Brand Name: | IWAVE |
| Model Number: | Defensor-T4 |
| MOQ: | 2 |
| Price: | Negotiable |
| Delivery Time: | 5-8work days |
| Payment Terms: | T/T |

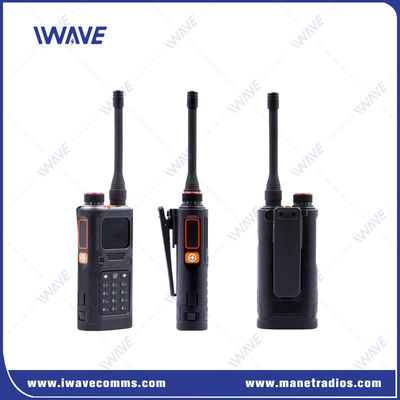

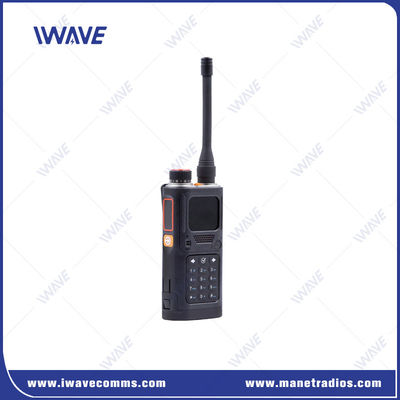

Digital MANET Two Way Radios For Emergency Rescue
Introduction
Ad-Hoc Network Radio
Sudden disasters are unpredictable and often unavoidable, necessitating swift responses to minimize casualties and damage to infrastructure. Communication networks are frequently disrupted after a disaster, creating an urgent need for a temporary communication system, allowing search and rescue personnel to relay vital information to headquarters quickly.
The T4 uses wireless MANET(Mobile Ad Hoc Network) technology that provides narrowband self-grouping multi-hop links to achieve a wide area of mesh coverage with digital voice and high security.
Features
Supports individual call, group call, kill, stun, revive, lD display, etc.
Beidou/GPS positioning and mutual positioning between radios
Compatible with various audio codecs
Embedded public security encryption car
Device ID
Single call mode
Software dedicated to writing frequency
Write and read password
AES256 encryption
Application
IWAVE manet radios fire and rescue communication solution offers a comprehensive communication system. T4 handset two way radios work with the manet base stations, which can rapidly establish a temporary, reliable and secure wireless link on demand. The flexibility of the network deployment ensures that it can be rapidly set up to meet the needs of various emergency situations. The solution enables frontline responders to maintain communication with the on-site command center even in complex environments.
Specifications
| Handheld MESH Radio Base Station(Defensor-T4) | |||
| General | Transmitter | ||
| Frequency | VHF: 136-174MHz UHF1: 350-390MHz UHF2: 400-470MHz |
RF Power | 1W/5W Switch(VHF) 1W/4W Switch(UHF) |
| Channel Capacity | 300 (10 Zone, each with a maximum of 30 channels) | 4FSK Digital Modulation | 12.5kHz Data Only: 7K60FXD 12.5kHz Data&Voice: 7K60FXE |
| Channel Interval | Digital: 12.5khz | Conducted/Radiated Emission | -36dBm<1GHz -30dBm>1GHz |
| Operating Voltage | 7.4V±15%(rated) | Modulation Limiting | ±2.5kHz @ 12.5 kHz ±5.0kHz @ 25 kHz |
| Frequency Stability | ±1.5ppm | Adjacent Channel Power | 60dB @ 12.5 kHz 70dB @ 25 kHz |
| Antenna Impedance | 50Ω | Audio Response | +1~-3dB |
| Dimension | 124*56*35mm(without antenna) | Audio Distortion | 5% |
| Weight | 293g | Environment | |
| Battery | 3200mAh Li-ion battery (standard) | Operating Temperature | -20°C ~ +55°C |
| Battery Life with standard battery | 24hours | Storage Temperature | -40°C ~ +85°C |
| Protection Grade | IP67 | ||
|
|
