| Brand Name: | IWAVE |
| Model Number: | FDM-680X |
| MOQ: | 2 |
| Price: | Negotiable |
| Delivery Time: | 5-10days |
| Payment Terms: | T/T,L/C,D/P |

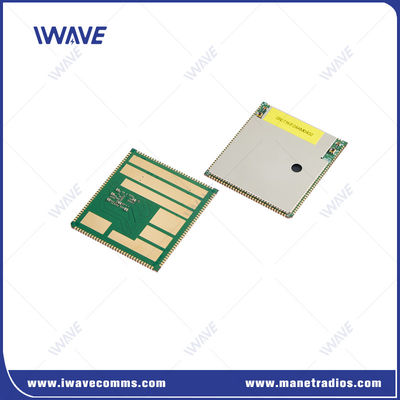

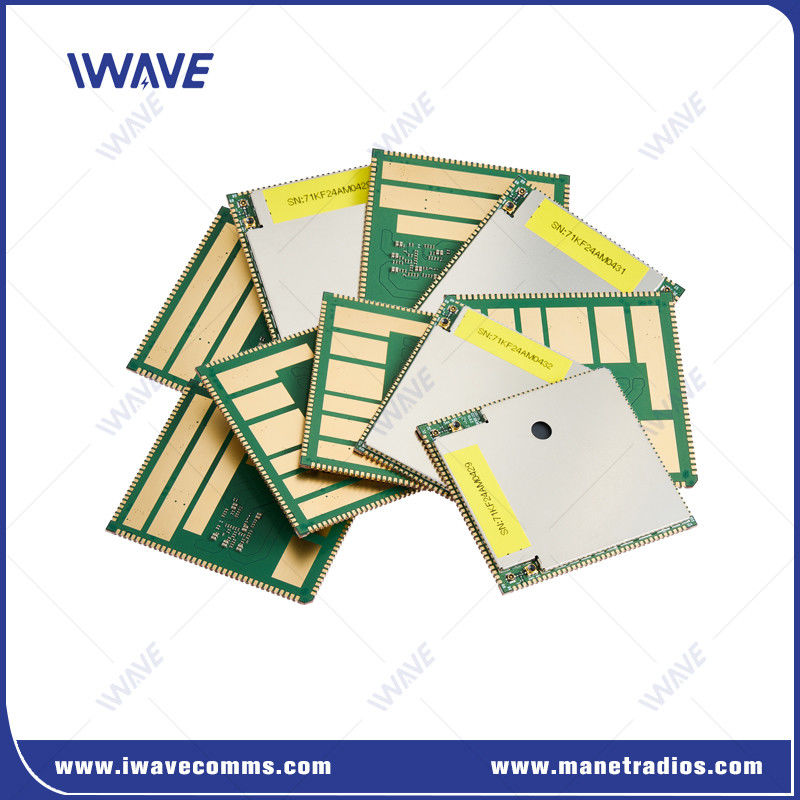

100Mbps 2*2 MIMO Wireless Transmission System For Unmanned Ground Vehicles
Introduction
FDM-680X Wireless Transmission System is a point to point and point-to-multipoint broadband data transmission module based on the LTE wireless communication standard. It adopt OFDM technology and supports multiple bandwidth (1.4MHz, 3MHz, 5MHz, 10MHz, 20MHz, 40Mhz). Its flat system architecture
design can effectively reduce system delay and improve system transmission capacity.
It has the characteristics of long transmission distance, large data throughput and strong anti-interference.
FDM-680X uses SOC chips for highly integrated, small power consumption, mini size for UGV, UAV, NLOS video surveillance and other video transmission application.
This robust digital data link provides a robust and secure link in dual software-seletable 222Mhz frequency band option.
Advantages of Wireless Transmission System
High Speed IP Data
The FDM-680X forms a robust and point to multiple point wireless network that can support sensor data, video streaming, and high availability situational awareness. With data rates of up to 100 Mbps, the FDM-680X waveforms are fully interoperable with different types of unmanned vehicles.Such as UAV, UAS, UGV, USV and robotics.
SWAP Optimised With the weight of just 23g
the FDM-680X features a compact, light, and ergonomic design which supports integration with a range of small unmanned platform to ensure video and telemetry control data link.
Support for High-Speed Movement 300 km/h
The FDM-680X ensures a stable connection even at speeds of up to 300 km/h, making it ideal for high-speed moving platforms.
High Throughput
The system provides data rates of 100Mbps for both uplink and downlink simultaneously, enabling efficient data transfer in demanding applications.
Power Self-Adaptive
The FDM-680X dynamically adjusts its transmit and receive power based on channel conditions, optimizing energy consumption and reducing network interference for more reliable performance.
Application Of Wireless Transmission System
Ethernet Wireless Extension
Wireless Telemetry
NLOS Wireless Video Transmitting
Wireless Control Systems
Unmanned Aerial Vehicles (UAVs)
Unmanned Ground Vehicles (UGVs)
Autonomous Surface Vessels (ASVs)
Robotic Fleet Management
Emergency Response Networks
Military Tactical Networks
Specification of Wireless Transmission System
|
Functions |
Description |
Details |
|
PCB Size |
46.58±0 .15mm 52.00±0.15mm 2.90±0.10mm |
|
|
RF |
Frequency |
1.4Ghz: 1420-1530MHz |
|
600Mhz: 566-678MHz |
||
|
RF Power Level |
23dBm±2(1.4Ghz) |
|
|
23dBm±2(600MHz) |
||
|
Sensitivity |
1Mbps |
1.4Ghz(14700 frequency point) 20MHz: -102dBm 10MHz: -100dBm 5Mhz: -96dBm |
|
600Mhz(6200 frequency point) 20Mhz: -102dBm 10MHz: -100dBm 5MHz: -96dBm |
||
|
5Mbps |
1.4Ghz(14700 frequency point) 20MHz: -95dBm 10MHz: -87dBm 5Mhz: -85dBm |
|
|
600Mhz(6200 frequency point) 20MHz: -95dBm 10MHz: -87dBm 5MHz: -85dBm |
||
|
Interface |
UART |
3 |
|
HSIC |
USB 2.0 High Speed |
|
|
USB |
USB 2.0 High Speed |
|
|
I2C |
2 |
|
|
GPIO |
23 |
|
|
JTAG |
0 |
|
|
Antenna |
2 |
|
|
Power |
VSYS |
3.7V~4.35V(4V is suggested) |
|
D1V8A |
1.8V Power Output |
|
|
D2V85A |
2.85V Power Output |
|
|
VCC_D3V3 |
3.3V Power Output |
|
|
5V_FEM |
Powering the RF PA chip |
|
|
Master-slave node |
Central Node Configuration |
Any node in the network can be configured as the master node. |
|
Data Rate |
All nodes share uplink and downlink system capacity data rate |
|
|
Capacity |
Supports the number of network nodes N≥2 and up to 64 service nodes or 63 IDLE state nodes. |
|
|
Communication Mode |
Any node in the network can be configured as the master node. |
|
|
All nodes share uplink and downlink system capacity data rate |
||
|
Access |
Support multiple slave nodes to access the network simultaneously. |
|
|
Data Rate |
All slave nodes and master nodes share the working bandwidth in one direction. Concurrent upstream and downstream (20Mhz, not less than 100Mbps) |
|
|
Connection Status |
All nodes in the network remain connected at all times. |
|
|
Power Control |
Adaptive adjust transmit power. |
|
|
Boot up |
Both master node and slave nodes support preset |
|
|
Fixed Power |
Fixed power configuration(modify master node only) |
|
|
Fixed Frequency |
Locking frequency configuration |
|
|
|
