| Brand Name: | IWAVE |
| Model Number: | FDM-660X |
| MOQ: | 2 |
| Price: | Negotiable |
| Delivery Time: | 5-10days |
| Payment Terms: | T/T,L/C,D/P |

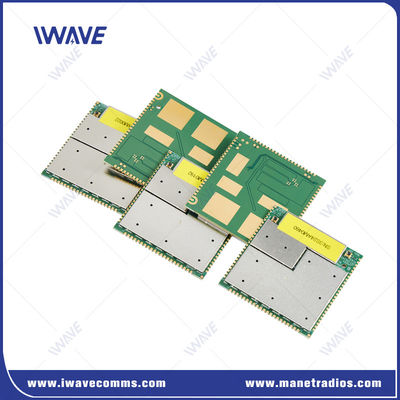

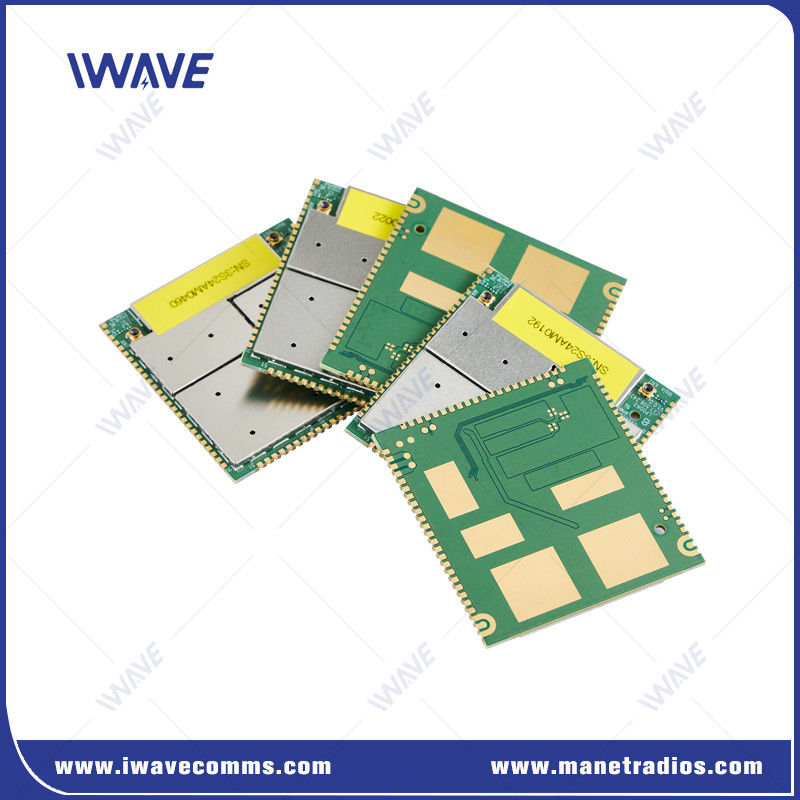

Long Range Radio Telemetry Module With Frequency Hopping Spread Spectrum
Introduction
The FDM-660X is a compact 200MW IP PtMP device, optimized for long-range communication and high-data-rate airborne missions. For ultra-long-range connectivity, higher power configurations such as a 10W model with PA can reach 100-150km wireless link.
This system leverages FPGA architecture, supports multi-waveform functionality, ultra-wideband operation, and high-speed frequency hopping in a star topology. It is capable of handling both data and video transmission in various configurations, including point-to-point, point-to-multipoint, and multipoint-to-multipoint setups.
Advantages of Telemetry Module (FDM-660X):
Long NLOS Transmission: Capable of stable communication over distances ranging from 500m to 3km in Non-Line-of-Sight (NLOS) conditions between ground-based systems.
Support for High-Speed Movement: The FDM-660X maintains a stable communication link even at speeds of up to 300 km/h, making it ideal for high-speed platforms.
High Throughput: Achieves uplink and downlink speeds between 80Mbps and 100Mbps simultaneously, ensuring high data transfer rates for demanding applications.
Power Self-Adaptive: The device automatically adjusts its transmission and reception power based on real-time channel conditions, optimizing energy consumption and reducing interference across the network.
Specification of Telemetry Module
| Transmitting | Master control module image acquisition device for data acquisition and encoding | Camera |
| The main control module send the encoded data to FD-610X through the USB or HSIC interface | Physical interface USB/HISC, logically virtual into a network card | |
| FD-610X sends the encoded image data to the receiving end through the air interface. | ||
| Receiving | The FD-610X receiving end gets the encoded image data and then transparently transmits it to the main control module. | |
| FD-610X sends data to the main control module via USB or HSIC interface. | Physical interface USB/HISC, logically virtual into a network card | |
| After the main control module receives data, it performs image decoding and display. | ||
| PCB Size | 43.40*45.00*3.00mm | |
| RF | Frequency | 2.4Ghz: 2401.5-2481.5 MHz |
| 1.4Ghz: 1427.9-1467.9MHz | ||
| 800Mhz: 806-826 MHz | ||
| RF Power | 25dBm | |
| Sensitivity (Access) |
2.4Ghz(24415 Channel) 20Mhz:-99dBm 10Mhz:-103dBm 5Mhz:-104dBm 3Mhz:-106dB |
Access |
| 1.4Ghz(14379 Channel) 10MHz:-103dBm 5Mhz:-104dBm 3Mhz:-106dBm |
Access | |
| 800Mhz(8160 Channel) 10MHz:-103dBm 5Mhz:-106dBm 3Mhz:-108dBm |
Access | |
| Interface | UAR | 1 |
| COM-UART | 1 | |
| HSIC | USB 2.0 High Speed | |
| US | USB 2.0 High Speed | |
| I2C | 1 | |
| GPIO | 6 | |
| JTAG | 1 | |
| Antenna | 2 |
FAQ
1. How much current(amps )does the module draw?
The Power consumption is about 4W.
Current equals power consumption divided by supply voltage
4 / 12=0.33A, if you're on a 12-volt supply.
2. I need the 150 km transmission range wireless video data module, What frequency range is better?
There are two versions on the different frequency range.
1st version's frequency range is from 1420 Mhz to 1530 Mhz, with 110Mhz frequency width for FHSS.
2nd version's frequency range is from 806 Mhz to 826 Mhz or 1420 Mhz ~1530 MHz, with only 20Mhz or 40Mhz frequency width for FHSS.
Our engineer recommended that you choose 1st version, as it can supply more frequent points to choose from when the signal is weak or interfered with.
|
|
