| Brand Name: | IWAVE |
| Model Number: | FDM-660X |
| MOQ: | 2 |
| Price: | Negotiable |
| Delivery Time: | 5-10days |
| Payment Terms: | T/T,L/C,D/P |

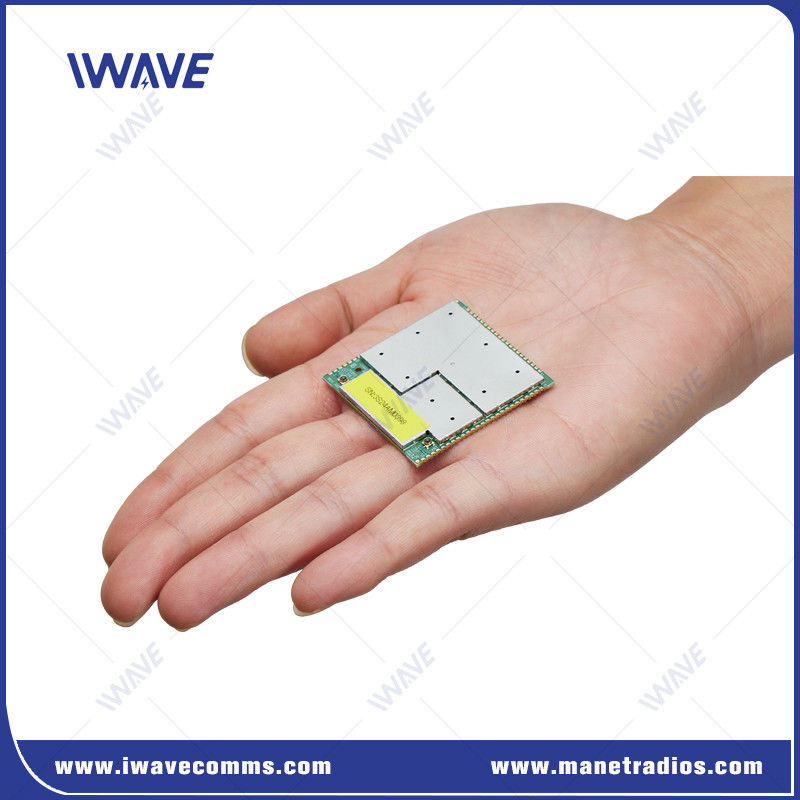

Long-Range Wireless Video Transmitter Receiver Module
Introduction
FDM-660X is a wireless PtMP video transmitter module works at UHF band, L band and S band. It supports data rate up to 30Mbps, is a lightweight IP wireless node which suits the on-site video transmission and can be used in UAV application and emergency communications in the fields of fire protection, rescue, surveillance, police and , etc.
FDM-660X is implemented based on software defined radio architecture, and adopts self-developed waveform, efficient channel codecs and star networking protocols and other technologies to combat complex channel environments. It realizes broadband service transmission between mobile points and fixed points such as individual soldiers, vehicles and drones in complex scenarios, with small size and low power consumption.
Advantages of Video Transmitter (FDM-660X)
|
|
 |
Specification of Video Transmitter
| Transmitting | Master control module image acquisition device for data acquisition and encoding | Camera |
| The main control module send the encoded data to FD-610X through the USB or HSIC interface | Physical interface USB/HISC, logically virtual into a network card | |
| FD-610X sends the encoded image data to the receiving end through the air interface. | ||
| Receiving | The FD-610X receiving end gets the encoded image data and then transparently transmits it to the main control module. | |
| FD-610X sends data to the main control module via USB or HSIC interface. | Physical interface USB/HISC, logically virtual into a network card | |
| After the main control module receives data, it performs image decoding and display. | ||

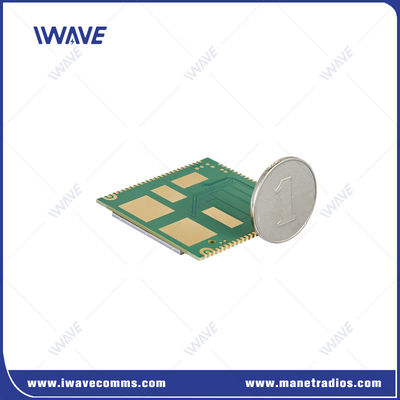

| PCB Size | 43.40*45.00*3.00mm | |
| RF | Frequency | 2.4Ghz: 2401.5-2481.5 MHz |
| 1.4Ghz: 1427.9-1467.9MHz | ||
| 800Mhz: 806-826 MHz | ||
| RF Power | 25dBm | |
| Sensitivity (Access) |
2.4Ghz(24415 Channel) 20Mhz:-99dBm 10Mhz:-103dBm 5Mhz:-104dBm 3Mhz:-106dB |
Access |
| 1.4Ghz(14379 Channel) 10MHz:-103dBm 5Mhz:-104dBm 3Mhz:-106dBm |
Access | |
| 800Mhz(8160 Channel) 10MHz:-103dBm 5Mhz:-106dBm 3Mhz:-108dBm |
Access | |
| Interface | UAR | 1 |
| COM-UART | 1 | |
| HSIC | USB 2.0 High Speed | |
| US | USB 2.0 High Speed | |
| I2C | 1 | |
| GPIO | 6 | |
| JTAG | 1 | |
| Antenna | 2 |
FAQ
1. Can we monitor the module temperature By using web UI?
There was no function to query the temperature of the module.
2. Does this model support IP mesh?
This model support point to multiple point. One master node can support 32 slave nodes There are three versions: 20km, 50km, and 150km according to build different the power amplifier.
|
|
