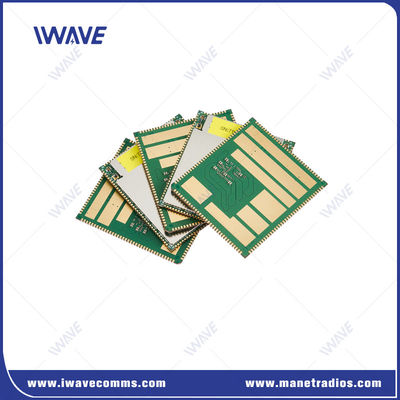

23g 2X2 MIMO Point To Multiple Point Wireless SOC Development Board
Introduction
The FDM-680X is a compact 2x2 200MW MIMO IP PtMP Wireless SOC Development Board, designed for long-range communication and high-data-volume airborne missions. For ultra-long-range applications, higher power configurations, such as a 10W MIMO model, are also available.
This system leverages FPGA architecture and supports multi-waveform capabilities, ultra-wideband operation, and high-speed frequency hopping in a star topology. It is capable of transmitting both data and video across point-to-point, point-to-multipoint, and multipoint-to-multipoint network configurations, making it ideal for flexible and scalable communication solutions.

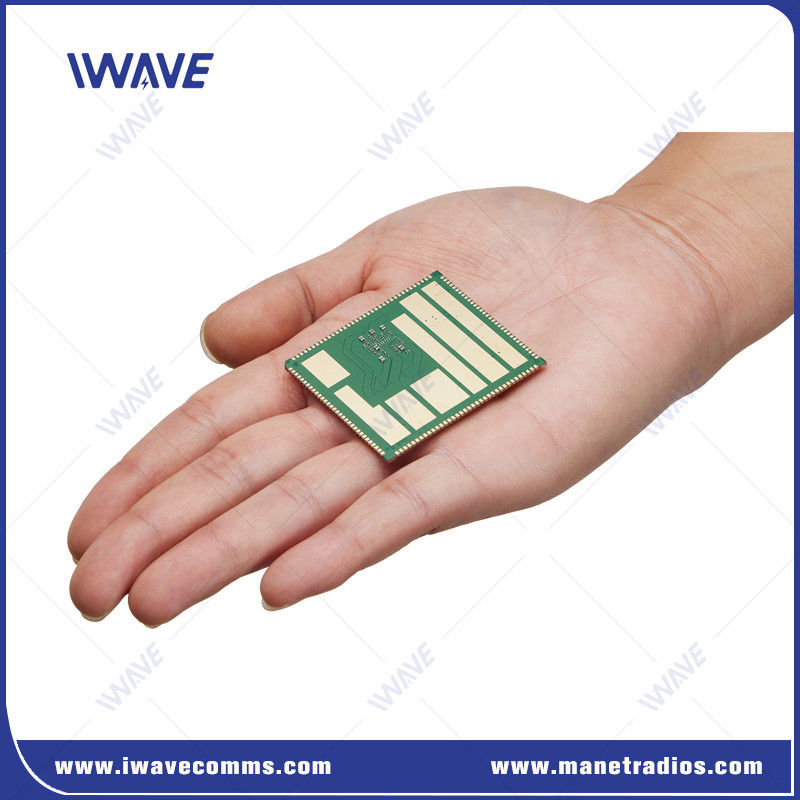

52*46*2.9mm size makes it the smallest OEM wideband radio module and ideal candidate for system integration into small unmanned systems to perform in challenging environments, like indoor inspection of buildings or tunnels.
Advantages of Wireless SOC
|
|
 |
Specification of Wireless SOC
|
Functions |
Description |
Details |
|
PCB Size |
46.58±0 .15mm 52.00±0.15mm 2.90±0.10mm |
|
|
RF |
Frequency |
1.4Ghz: 1420-1530MHz |
|
600Mhz: 566-678MHz |
||
|
RF Power Level |
23dBm±2(1.4Ghz) |
|
|
23dBm±2(600MHz) |
||
|
Sensitivity |
1Mbps |
1.4Ghz(14700 frequency point) 20MHz: -102dBm 10MHz: -100dBm 5Mhz: -96dBm |
|
600Mhz(6200 frequency point) 20Mhz: -102dBm 10MHz: -100dBm 5MHz: -96dBm |
||
|
5Mbps |
1.4Ghz(14700 frequency point) 20MHz: -95dBm 10MHz: -87dBm 5Mhz: -85dBm |
|
|
600Mhz(6200 frequency point) 20MHz: -95dBm 10MHz: -87dBm 5MHz: -85dBm |
||
|
Interface |
UART |
3 |
|
HSIC |
USB 2.0 High Speed |
|
|
USB |
USB 2.0 High Speed |
|
|
I2C |
2 |
|
|
GPIO |
23 |
|
|
JTAG |
0 |
|
|
Antenna |
2 |
|
|
Power |
VSYS |
3.7V~4.35V(4V is suggested) |
|
D1V8A |
1.8V Power Output |
|
|
D2V85A |
2.85V Power Output |
|
|
VCC_D3V3 |
3.3V Power Output |
|
|
5V_FEM |
Powering the RF PA chip |
|
|
Master-slave node |
Central Node Configuration |
Any node in the network can be configured as the master node. |
|
Data Rate |
All nodes share uplink and downlink system capacity data rate |
|
|
Capacity |
Supports the number of network nodes N≥2 and up to 64 service nodes or 63 IDLE state nodes. |
|
|
Communication Mode |
Any node in the network can be configured as the master node. |
|
|
All nodes share uplink and downlink system capacity data rate |
||
|
Access |
Support multiple slave nodes to access the network simultaneously. |
|
|
Data Rate |
All slave nodes and master nodes share the working bandwidth in one direction. Concurrent upstream and downstream (20Mhz, not less than 100Mbps) |
|
|
Connection Status |
All nodes in the network remain connected at all times. |
|
|
Power Control |
Adaptive adjust transmit power. |
|
|
Boot up |
Both master node and slave nodes support preset |
|
|
Fixed Power |
Fixed power configuration(modify master node only) |
|
|
Fixed Frequency |
Locking frequency configuration |
|
|
|
