| Brand Name: | IWAVE |
| Model Number: | FD-780X |
| MOQ: | 2 |
| Price: | Negotiable |
| Delivery Time: | 5-10days |
| Payment Terms: | T/T,L/C,D/P |

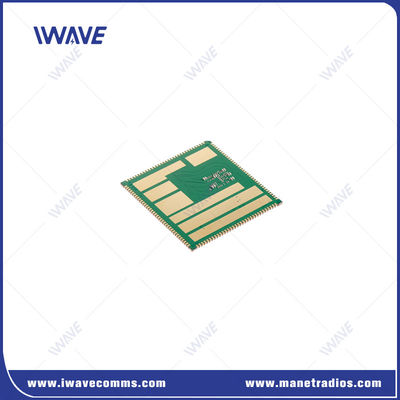

50km FHSS Wireless MIMO 2X2 Wireless Video Transmitter And Receiver SOC Solution
Introduction

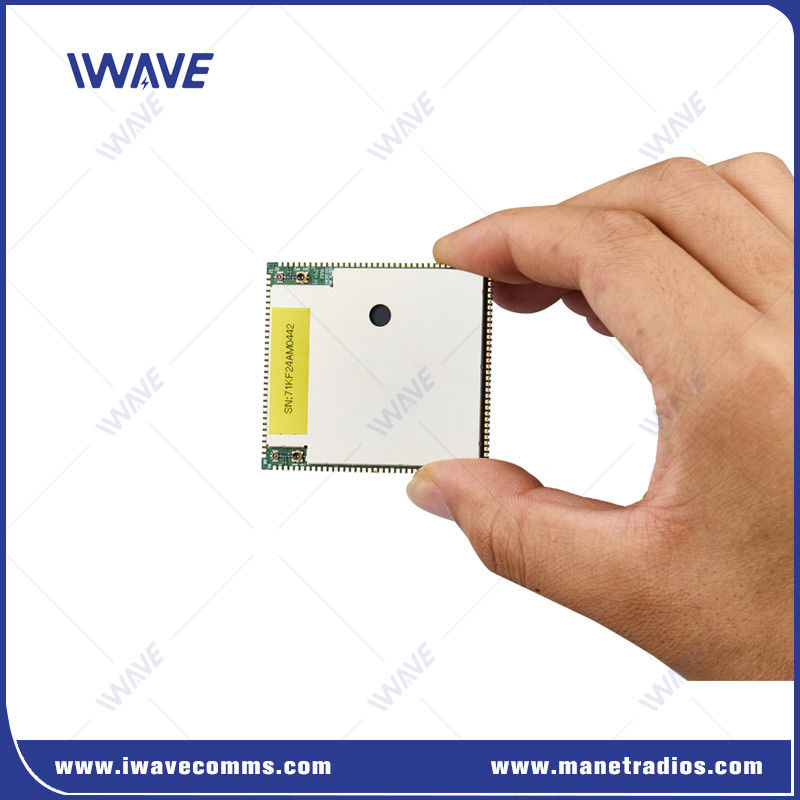

FD-780X Wireless Video Transmitter is the most advanced, most scalable, and most efficient Mobile Ad Hoc Networking (MANET) system in the world, now in a SWaP-timized form factor: the Embedded Module. Integrate the Embedded Module into your products to unite UAVs, UGVs, and sensors on a single network. Because the Embedded Module features an HD video encoder and onboard computer, eliminate redundant equipment from your platform.
Advantages of Wireless Video Transmitter
|
|
Application
|
|
|
Specification of Wireless Video Transmitter
|
Function items |
Description |
Details |
|
PCB |
single-sided interface board |
Tolerance range: 46.58±0.15mm 52.00±0.15mm 2.90±0.10mm |
|
RF |
RF Band 1 |
1420-1530MHz |
|
RF Band 2 |
566-678MHz |
|
|
Power Level |
1.4G 23dBm±2 |
|
|
600MHz 23dBm±2 |
||
|
Sensitivity (1Mbps) |
1.4G(14700 channel) 20MHz -102dBm 10MHz -100dBm 5MHz -96dBm |
|
|
600M(6200 channel) 20MHz -102dBm 10MHz -100dBm 5MHz -96dBm |
||
|
Interface |
UART |
3 |
|
HSIC |
USB 2.0 High Speed |
|
|
USB |
USB 2.0 High Speed |
|
|
I2C |
2 个 |
|
|
GPIO |
23 个 |
|
|
JTAG |
0 个 |
|
|
RF |
2T2R |
|
|
Power |
VSYS |
3.7V~4.35V,suggest 4.0V (input) |
|
D1V8A |
1.8V output |
|
|
A2V85A |
2.85V output |
|
|
VCC_D3V3 |
3.3V output |
|
|
5V_FEM |
RF PA chip power supply(Input) |
|
|
Network |
Network Mode |
Centerless Ad Hoc Network |
|
Capacity |
Max 32nodes |
|
|
Hops |
Support multi-hop routing topology, up to 31 hop |
|
|
Communication |
Supports unicast, multicast, and broadcast transmission modes. Any nodes can use these three modes for communication |
|
|
Data Rate |
All nodes communicate and share the working bandwidth, and the max rate is 100Mbps |
|
|
Time Synchronization |
Independent of external clock, self-synchronous |
|
|
Power Control |
All nodes adaptively adjust the transmission power |
|
|
Subnet Fusion |
Support splitting one network into multiple networks |
|
|
Movement Speed |
Maximum support 300km/h |
|
|
Retransmission |
HARQ Retransmission |
|
|
Anti-jam |
Supports dynamic frequency hopping within and across frequency bands |
|
|
